Name: National Seals 5206 Oil Seal Kit
SKU: 5206
Price: 26.49 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® oil seals are recognized worldwide for their quality and reliable performance for every type of repair.

• Design Type: Spring Loaded; Multi-Lip

• Provides good low temperature capability

• Low swell in hydrocarbon fluids

• Temperature Range: -40°F to 225°F; -40°C to 107°C

• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
Specifications

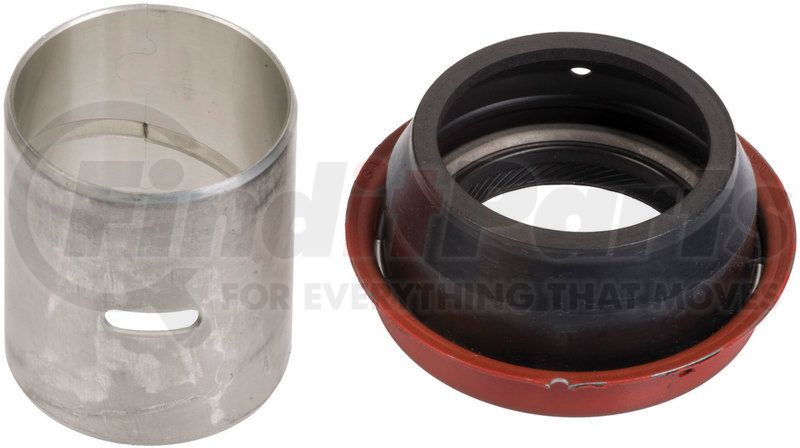

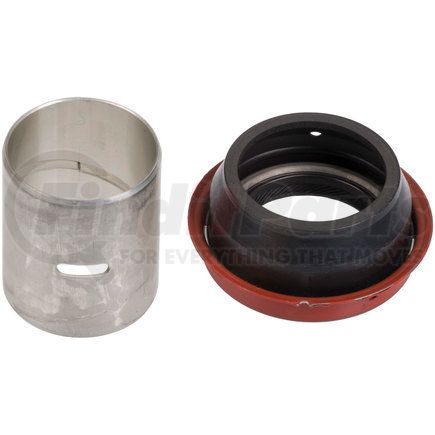

OIL SEAL: Part Description: Oil Seal Kit

Shaft (Inch): 1.688

Shaft (MM): 42.880

Outside Diameter (Inch): 2.850

Outside Diameter (MM): 72.390

Width (Inch): 2.120

Width (MM): 53.850

Material: Nitrile

Type: 79

Contains: RP 546 Bushing
Applications

PASSENGER CAR & LIGHT TRUCK

AM General DJ5 1974

AM General FJ8 1974

American Motors Ambassador 1974-1971

American Motors AMX 1980-1979

American Motors Concord 1983-1979

American Motors Hornet 1974-1972

American Motors Javelin 1974-1971

American Motors Matador 1978-1971

American Motors Spirit 1983-1979

Aston Martin DBS 1971

Aston Martin Lagonda 1989-1977

Aston Martin V-8 1989-1972

Aston Martin Vantage 1974-1972

Aston Martin Virage 1994-1989

Aston Martin Zagato 1988-1987

Checker Aerobus 1963-1962

Chrysler 300 2010-2005

Chrysler Aspen 2009-2007

Chrysler Cordoba 1983-1975

Chrysler Fifth Avenue 1989-1983

Chrysler Imperial 1983-1965

Chrysler LeBaron 1981-1978

Chrysler New Yorker 1982-1965

Chrysler Newport 1981-1961

Chrysler Town & Country 1981-1961

Chrysler Windsor 1961

DeSoto Adventurer 1961

Dodge 330 1964-1963

Dodge 440 1964-1963

Dodge 880 1964-1963

Dodge A100 1970

Dodge A100 Truck 1970-1964

Dodge A108 Van 1970-1967

Dodge Aspen 1980-1976

Dodge B100 1980-1975

Dodge B100 Van 1974-1971

Dodge B150 1994-1981

Dodge B1500 1998-1995

Dodge B200 1980-1975

Dodge B200 Van 1974-1971

Dodge B250 1994-1981

Dodge B2500 1998-1995

Dodge B300 1980-1975

Dodge B300 Van 1974-1971

Dodge B350 1994-1981

Dodge B3500 1998-1995

Dodge CB300 1980-1973

Dodge Challenger 2010-1970

Dodge Charger 2010-1966

Dodge Coronet 1976-1965

Dodge Custom 1965-1961

Dodge D100 1989-1975

Dodge D100 Pickup 1974-1968

Dodge D100 Series 1967-1961

Dodge D150 1993-1977

Dodge D200 1980-1975

Dodge D200 Pickup 1974-1968

Dodge D200 Series 1967-1961

Dodge D250 1993-1981

Dodge D300 1980-1975

Dodge D300 Pickup 1974-1968

Dodge D300 Series 1967-1961

Dodge D350 1993-1981

Dodge D400 1981-1978

Dodge D450 1981-1978

Dodge D500 1961

Dodge Dakota 2010-1987

Dodge Dart 1976-1961

Dodge Diplomat 1989-1977

Dodge Durango 2011-1999

Dodge M300 1974-1968

Dodge M350 1974

Dodge Magnum 2008-1978

Dodge MB300 1974-1970

Dodge Mirada 1983-1980

Dodge Monaco 1978-1965

Dodge Nitro 2011-2007

Dodge P100 1968-1962

Dodge P100 Van 1967-1961

Dodge P200 1972-1961

Dodge P200 Van 1974-1961

Dodge P300 1972-1961

Dodge P300 Van 1974-1961

Dodge P375 1968

Dodge Phoenix 1961

Dodge Pioneer 1961

Dodge Polara 1973-1961

Dodge R300 1974-1972

Dodge Ram 1500 2010-1994

Dodge Ram 1500 Van 2003-1999

Dodge Ram 2500 2010-1994

Dodge Ram 2500 Van 2003-1999

Dodge Ram 3500 2010-1994

Dodge Ram 3500 Van 2003-1999

Dodge Ram 50 1993-1990

Dodge Ramcharger 1993-1974

Dodge RD200 1980-1978

Dodge RM300 1974-1973

Dodge Royal Monaco 1977-1975

Dodge Seneca 1961

Dodge St. Regis 1981-1979

Dodge Truck 1971-1969

Dodge Viper 2006-1992

Dodge W100 1989-1975

Dodge W100 Pickup 1974-1968

Dodge W100 Series 1967-1961

Dodge W150 1993-1977

Dodge W200 1980-1975

Dodge W200 Pickup 1974-1968

Dodge W200 Series 1967-1961

Dodge W250 1993-1981

Dodge W300 1980-1975

Dodge W300 Pickup 1974-1968

Dodge W300 Series 1967-1961

Dodge W350 1993-1981

Dodge Wm300 Pickup 1968-1967

Dodge Wm300 Power Wagon 1966-1961

Fargo A100 Van 1970-1964

Fargo A108 Van 1970-1967

Fargo B100 Van 1972-1971

Fargo B200 Van 1972-1971

Fargo B300 Van 1972-1971

Fargo D100 Panel Delivery 1967-1966

Fargo D100 Pickup 1972-1966

Fargo D110 Pickup 1972-1966

Fargo D200 Panel Delivery 1967-1966

Fargo D200 Pickup 1972-1966

Fargo D210 Pickup 1972-1966

Fargo F100 Panel Delivery 1965-1961

Fargo F100 Pickup 1965-1961

Fargo FW100 Panel Delivery 1965-1961

Fargo FW100 Pickup 1965-1961

Fargo P100 Parcel Delivery 1969-1966

Fargo P200 Parcel Delivery 1971-1961

Fargo P300 Parcel Delivery 1971-1961

Fargo W100 Panel Delivery 1967-1966

Fargo W100 Pickup 1972-1966

Fargo W110 Pickup 1972-1969

Fargo W200 Pickup 1972-1966

International 100 1974

International 1010 1973-1972

International 1110 1973-1972

International 1210 1973-1972

International 1310 1973-1972

International 150 1975

International 200 1975-1974

International M1100 1972

International M1200 1972

International M1400 1969-1965

International MHC1310 1974

International MS 1975

International MS1210 1974-1972

International Scout II 1980-1972

International Travelall 1975

Jeep Cherokee 1986-1984

Jeep Comanche 1986

Jeep Commander 2010-2006

Jeep Grand Cherokee 2011-1993

Jeep Grand Wagoneer 1993-1984

Jeep J10 1988-1984

Jeep J20 1988-1984

Jeep Liberty 2012-2002

Jeep Wagoneer 1986-1984

Jeep Wrangler 2010-2007

Jensen Healey 1976-1972

Jensen Interceptor 1976-1967

Maserati 425 1987-1986

Maserati Biturbo 1987-1986

Maserati Quattroporte 1986-1979

Maserati Spyder 1987-1986

Mitsubishi Mighty Max 1996-1990

Mitsubishi Raider 2009-2006

Plymouth Barracuda 1974-1964

Plymouth Belvedere 1971-1961

Plymouth Belvedere II 1967-1965

Plymouth Caravelle 1987-1978

Plymouth Cuda 1974-1970

Plymouth Custom 1961

Plymouth Duster 1976-1970

Plymouth Fleet Special 1963-1961

Plymouth Fury 1978-1961

Plymouth Fury I 1974-1968

Plymouth Fury II 1974-1965

Plymouth Fury III 1974-1965

Plymouth Gran Fury 1989-1972

Plymouth GTX 1971-1967

Plymouth PB100 1980-1975

Plymouth PB100 Van 1974

Plymouth PB150 1983-1981

Plymouth PB200 1980-1975

Plymouth PB200 Van 1974

Plymouth PB250 1983-1981

Plymouth PB300 1980-1975

Plymouth PB300 Van 1974

Plymouth PB350 1983-1981

Plymouth Roadrunner 1975-1968

Plymouth Satellite 1974-1965

Plymouth Savoy 1964-1961

Plymouth Scamp 1976-1971

Plymouth Sport Wagon 1961

Plymouth Suburban 1961

Plymouth Superbird 1970

Plymouth Trailduster 1981-1974

Plymouth Valiant 1976-1964

Plymouth VIP 1967

Plymouth Volare 1980-1976

Ram 1500 2012-2011

Ram 2500 2011

Ram 3500 2011

Ram Dakota 2011

Product Description

Oil Seal Kit

Application Summary

2011-2012 Ram 1500; 2011-2012 Ram 2500; 2011-2012 Ram 3500; 2011 Ram Dakota; 1967-1970 Fargo A108 Van; 1964-1970 Fargo A100 Van; 1966-1967 Fargo D100 Panel Delivery; 1966-1972 Fargo D110 Pickup; 1966-1967 Fargo D200 Panel Delivery; 1966-1972 Fargo D210 Pickup; 1961-1965 Fargo F100 Panel Delivery; 1961-1965 Fargo F100 Pickup; 1961-1965 Fargo FW100 Panel Delivery; 1961-1965 Fargo FW100 Pickup; 1966-1969 Fargo P100 Parcel Delivery; 1961-1971 Fargo P200 Parcel Delivery; 1961-1971 Fargo P300 Parcel Delivery; 1966-1967 Fargo W100 Panel Delivery; 1969-1972 Fargo W110 Pickup; 1971-1972 Fargo B100 Van; 1971-1972 Fargo B200 Van; 1971-1972 Fargo B300 Van; 1966-1972 Fargo D100 Pickup; 1966-1972 Fargo D200 Pickup; 1966-1972 Fargo W100 Pickup; 1966-1972 Fargo W200 Pickup; 1962-1963 Checker Aerobus; 1965-2010 Chrysler 300; 1975-1983 Chrysler Cordoba; 1983-1989 Chrysler Fifth Avenue; 1965-1983 Chrysler Imperial; 1978-1981 Chrysler LeBaron; 1965-1982 Chrysler New Yorker; 1961-1981 Chrysler Newport; 1961-1981 Chrysler Town & Country; 2007-2009 Chrysler Aspen; 1961 Chrysler Windsor; 1963-1964 Dodge 330; 1963-1965 Dodge 880; 1967-1970 Dodge A108 Van; 1961-1967 Dodge D100 Series; 1961-1967 Dodge D200 Series; 1961-1967 Dodge D300 Series; 1968-1974 Dodge M300; 1974 Dodge M350; 1968 Dodge P375; 1961-1973 Dodge Polara; 1961-1967 Dodge W100 Series; 1961-1967 Dodge W200 Series; 1961-1967 Dodge W300 Series; 1967-1968 Dodge Wm300 Pickup; 1961-1974 Dodge P300 Van; 1961-1968 Dodge P100 Van; 1961-1974 Dodge P200 Van; 1967-1970 Dodge A100 Pickup; 1968-1973 Dodge M375; 1974 Dodge M400; 1970-1974 Dodge MB300; 1961 Dodge Pioneer; 1972-1974 Dodge R300; 1974 Dodge R400; 1971-1974 Dodge RM300; 1973-1974 Dodge RM400; 1961 Dodge Seneca; 1964-1970 Dodge A100 Truck; 1964-1970 Dodge A100; 1962-1968 Dodge P100; 1961-1972 Dodge P200; 1961-1972 Dodge P300; 1961-1966 Dodge Wm300 Power Wagon; 1971-1974 Dodge RM350; 1978-1980 Dodge RD200; 1971-1974 Dodge B100 Van; 1975-1980 Dodge B100; 1995-1998 Dodge B1500;...

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Material	Nitrile
Inside Diameter	1.685 IN
Thickness	0.421 IN
Outside Diameter	2.506 IN
Sealing Material	Nitrile
Contains	7300S Seal & RP546 Bushing
Flanged Outside Diameter (inch)	2.850 IN
Flanged Outside Diameter (mm)	72.390 MM
Footnote	Seal & Bushing

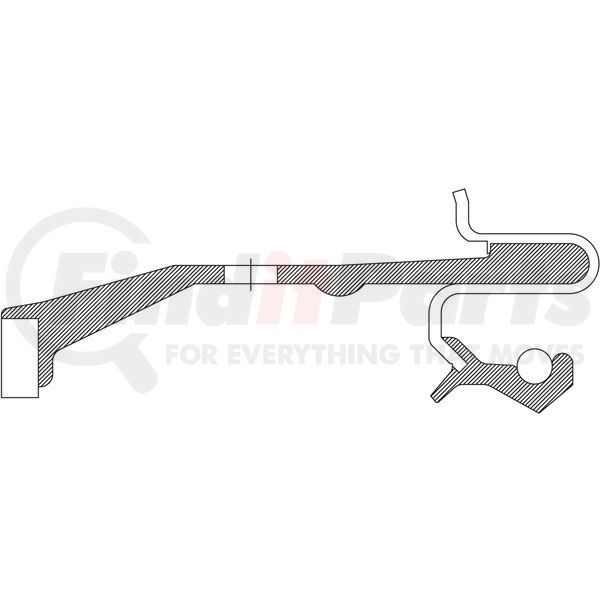

Helix Type	Counter-Clockwise-Spiral Lip Design
Housing Bore (inch)	2.500 IN
Housing Bore (mm)	63.500 MM
Outside Diameter (inch)	2.506 IN
Outside Diameter (mm)	63.650 MM
Overall Width With Side Lip (mm)	31.750 MM
Overall Width With Side Lip (inch)	1.250 IN
Part Description	Oil Seal
Redicoat	Yes
Series	5200
Shaft (inch)	1.685 IN
Shaft (mm)	42.800 MM
Type	79
Unit of Dimension	Inch
Width (inch)	0.421 IN
Width (mm)	10.693 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956157587

Part Interchanges

Fits Vehicles

International 1310M (1973)
International MS1210 (1972-1974)
International MHC1310 (1974)
International M1400 (1965-1967, 1969)
International M1200 (1972)
International M1100 (1972)
International 1310 (1972-1973)
International 1210 (1972-1973)
International 1110 (1972-1973)
International 1010 (1972-1973)
International 100 (1974)
International Travelall (1975)
International MS (1975)
International Scout II (1972-1980)
International 200 (1974-1975)
International 150 (1974-1975)
Plymouth Volare (1976-1980)
Plymouth PB350 (1981-1983)
Plymouth PB300 (1975-1980)
Plymouth PB250 (1981-1983)
Plymouth PB200 (1975-1980)
Plymouth PB150 (1981-1983)
Plymouth PB100 (1975-1980)
Jeep Wagoneer (1984-1986)
Jeep J20 (1984-1988)
Jeep J10 (1984-1988)
Jeep Grand Wagoneer (1984-1991)
Jeep Comanche (1986)
Jeep Cherokee (1984-1986)
Dodge W350 (1981-1993)
Dodge W300 (1975-1980)
Dodge W250 (1981-1993)
Dodge W200 (1975-1980)
Dodge W150 (1977-1993)
Dodge St. Regis (1979-1981)
Dodge Royal Monaco (1975-1977)
Dodge Ram 50 (1990-1993)
Dodge Ram 3500 Van (1999-2003)
Dodge Ram 2500 Van (1999-2003)
Dodge Ram 1500 Van (1999-2003)
Dodge Mirada (1980-1983)
Dodge Diplomat (1977-1989)
Dodge D450 (1978-1981)
Dodge D400 (1978-1981)
Dodge D350 (1981-1993)
Dodge D300 (1975-1980)
Dodge D250 (1981-1993)
Dodge D200 (1975-1980)
Dodge D150 (1977-1993)
Dodge B3500 (1995-1998)
Dodge B350 (1981-1994)
Dodge B300 (1975-1980)
Dodge B2500 (1995-1998)
Dodge B250 (1981-1994)
Dodge B200 (1975-1980)
Dodge B1500 (1995-1998)
Dodge B150 (1981-1994)
Dodge Aspen (1976-1980)
Dodge B100 (1975-1980)
Dodge RD200 (1978-1980)
Chrysler LeBaron (1978-1981)
Chrysler Fifth Avenue (1983-1989)
Chrysler Cordoba (1975-1983)
Dodge W100 (1975-1977, 1984-1989)
Dodge D100 (1975-1979, 1984-1989)
Dodge RM350 (1971, 1974)
Dodge R400 (1974)
Dodge M400 (1974)
Dodge RM400 (1973-1974)
Dodge M375 (1968-1973)
Dodge A100 Pickup (1967-1970)
AM General DJ5 (1974)
Dodge RM300 (1971, 1973-1974)
AM General FJ8 (1973-1974)
Dodge R300 (1972-1974)
Fargo B300 Van (1971-1972)
Fargo B200 Van (1971-1972)
Fargo B100 Van (1971-1972)
Aston Martin DBS (1971)
American Motors Javelin (1971-1974)
Dodge MB300 (1970-1974)
Fargo W110 Pickup (1969-1972)
Fargo A108 Van (1967-1970)
Fargo W200 Pickup (1966-1972)
Fargo W100 Pickup (1966-1972)
Fargo W100 Panel Delivery (1966-1967)
Fargo P100 Parcel Delivery (1966-1969)
Fargo D210 Pickup (1966-1972)
Fargo D200 Pickup (1966-1972)
Fargo D200 Panel Delivery (1966-1967)
Fargo D110 Pickup (1966-1972)
Fargo D100 Pickup (1966-1972)
Fargo D100 Panel Delivery (1966-1967)
Fargo A100 Van (1964-1970)
Dodge A100 (1964-1970)
Checker Aerobus (1962-1963)
Plymouth Custom (1961)
Fargo P300 Parcel Delivery (1961-1971)
Fargo P200 Parcel Delivery (1961-1971)
Fargo FW100 Pickup (1961-1965)
Fargo FW100 Panel Delivery (1961-1965)
Fargo F100 Pickup (1961-1965)
Fargo F100 Panel Delivery (1961-1965)
Dodge Pioneer (1961)
Dodge Seneca (1961)
Dodge Phoenix (1961)
Dodge P300 Van (1961-1964, 1966-1974)
Dodge P200 Van (1961-1964, 1967-1974)
Dodge P100 Van (1961-1964, 1967-1968)
Dodge Custom (1961)
DeSoto Adventurer (1961)
Chrysler Windsor (1961)
Ram 3500 (2011-2012)
Ram 2500 (2011-2012)
Ram 1500 (2011-2012)
Ram Dakota (2011)
Plymouth Belvedere II (1965-1967)
Dodge Nitro (2007-2012)
Chrysler Aspen (2007-2009)
Jeep Wrangler (2007-2010)
Mitsubishi Raider (2006-2009)
Jeep Commander (2006-2010)
Chrysler 300 (1965-1971, 2005-2010)
Dodge Magnum (1978-1979, 2005-2008)
Dodge Durango (1999-2009, 2011)
Jeep Liberty (2002-2012)
Jeep Grand Cherokee (1993-2011)
Dodge Viper (1992-2006)
Dodge Ram 3500 (1994-2002, 2004-2010)
Dodge Ram 2500 (1994-2002, 2004-2010)
Dodge Ram 1500 (1994-2010)
Dodge Dakota (1987-2010)
Plymouth Caravelle (1978-1987)
Plymouth VIP (1967)
Plymouth Valiant (1964-1976)
Plymouth Trailduster (1974-1981)
Plymouth Superbird (1970)
Plymouth Suburban (1961)
Plymouth Sport Wagon (1961)
Plymouth Scamp (1971-1976, 1983)
Plymouth Savoy (1961-1964)
Plymouth Satellite (1965-1974)
Plymouth Road Runner (1968-1975)
Plymouth PB300 Van (1974)
Plymouth PB200 Van (1974)
Plymouth PB100 Van (1974)
Plymouth GTX (1967-1971)
Plymouth Gran Fury (1972-1977, 1980-1989)
Plymouth Fury III (1965-1974)
Plymouth Fury II (1965-1974)
Plymouth Fury I (1968-1974)
Plymouth Fury (1961-1978)
Plymouth Fleet Special (1961-1963)
Plymouth Duster (1970-1976)
Plymouth Cuda (1970-1974)
Plymouth Belvedere (1961-1971)
Plymouth Barracuda (1964-1974)
Jensen Interceptor (1967-1976)
Jensen Healey (1972-1974)
Dodge Wm300 Power Wagon (1961-1966)
Dodge Wm300 Pickup (1967-1968)
Dodge W300 Series (1961-1967)
Dodge W300 Pickup (1968-1974)
Dodge W200 Series (1961-1967)
Dodge W200 Pickup (1968-1974)
Dodge W100 Series (1961-1967)
Dodge W100 Pickup (1968-1974)
Dodge Ramcharger (1974-1993)
Dodge Polara (1961-1973)
Dodge P375 (1968)
Dodge P300 (1961-1972)
Dodge P200 (1961-1972)
Dodge P100 (1962-1966, 1968)
Dodge Monaco (1965-1978)
Dodge M350 (1974)
Dodge M300 (1968-1974)
Dodge Dart (1961-1976)
Dodge D300 Series (1961-1967)
Dodge D300 Pickup (1968-1974)
Dodge D200 Series (1961-1967)
Dodge D200 Pickup (1968-1974)
Dodge D100 Series (1961-1967)
Dodge D100 Pickup (1968-1974)
Dodge Coronet (1965-1976)
Dodge Charger (1966-1978, 2006-2010)
Dodge Challenger (1970-1974, 2009-2010)
Dodge CB300 (1973-1980)
Dodge B300 Van (1971-1974)
Dodge B200 Van (1971-1974)
Dodge B100 Van (1971-1974)
Dodge A108 Van (1967-1970)
Dodge A100 Truck (1964-1970)
Dodge 880 (1963-1965)
Dodge 440 (1963-1964)
Dodge 330 (1963-1964)
Chrysler Town & Country (1961-1981)
Chrysler Newport (1961-1981)
Chrysler New Yorker (1965-1982)
Chrysler Imperial (1965-1975, 1981-1983)
Aston Martin Vantage (1972-1974)
American Motors Hornet (1972-1974)
American Motors Ambassador (1971-1974)
Maserati Quattroporte (1979-1986)
Maserati Biturbo (1986-1987)
Aston Martin Zagato (1987-1988)
Aston Martin Lagonda (1977-1989)
Aston Martin V-8 (1972-1989)
Mitsubishi Mighty Max (1990-1996)
American Motors Spirit (1979-1983)
American Motors Matador (1971-1978)
American Motors Concord (1979-1983)
American Motors AMX (1979-1980)

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
