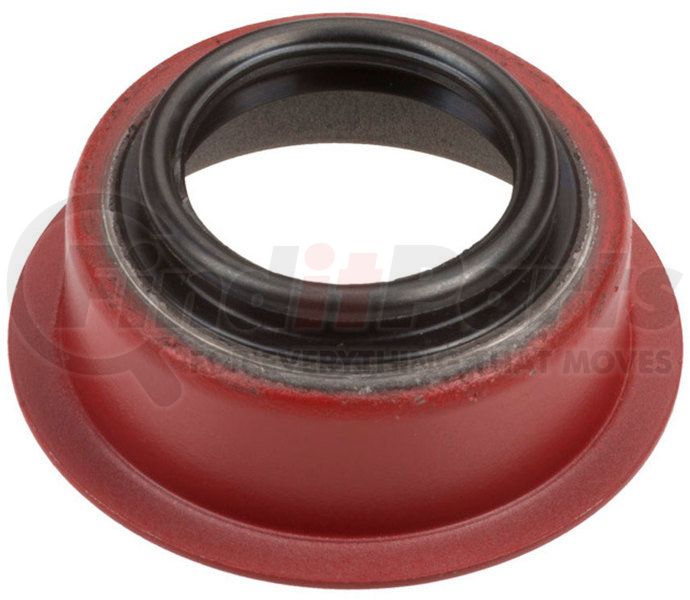

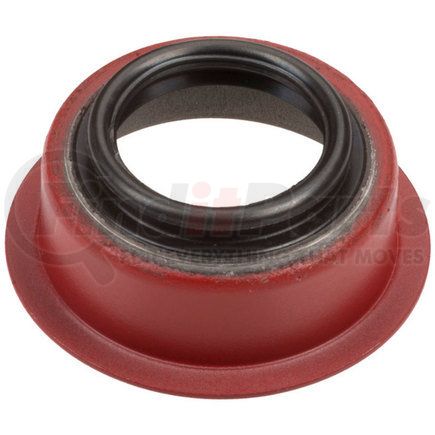

Name: National Seals 4748N Auto Trans Seal
SKU: 4748n
Price: 6.49 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® oil seals are recognized worldwide for their quality and reliable performance for every type of repair.

• Provides resistance to EP lubricants and have low swell in hydrocarbon fluids

• Performs well in slow speed applications

• Temperature Range: -20°F to 300°F; -29°C to `49°C

• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
Specifications

OIL SEAL: Part Description: Oil Seal

Shaft (Inch): 1.190

Shaft (MM): 30.230

Housing Bore (Inch): 1.889

Housing Bore (MM): 47.980

Outside Diameter (Inch): 1.896

Outside Diameter (MM): 48.160

Flanged Outside Diameter (Inch): 2.283

Flanged Outside Diameter (MM): 57.990

Width (Inch): 0.860

Width (MM): 21.840

Material: Polyacrylate

Type: #

Footnote: Bi-Directional Lip Design

Series: 4000

Redicoat: Yes
Applications

PASSENGER CAR & LIGHT TRUCK

Chrysler 300M 2004-1999

Chrysler Concorde 2004-1993

Chrysler Intrepid 2004-1993

Chrysler LHS 2001-1994

Chrysler New Yorker 1996-1994

Chrysler Prowler 2002-2001

Chrysler Sebring 2006-2001

Dodge Intrepid 2004-1993

Dodge Stratus 2006-2001

Eagle Vision 1997-1993

Plymouth Prowler 2001-1997

Product Description

Auto Trans Output Shaft Seal

Application Summary

1999-2004 Chrysler 300M (Right) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Chrysler 42LE Transmission); 1993-2004 Chrysler Concorde (Right) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Chrysler 42LE Transmission); 1994-2001 Chrysler LHS (Right) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Chrysler 42LE Transmission); 1994-1996 Chrysler New Yorker (Right) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Chrysler 42LE Transmission); 2001-2002 Chrysler Prowler (Right) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Chrysler 42LE Transmission); 2001-2006 Chrysler Sebring (Right) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Chrysler 42LE Transmission); 1993-2004 Chrysler Intrepid (Right) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Chrysler 42LE Transmission); 1993-2004 Dodge Intrepid (Right) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Chrysler 42LE Transmission); 2001-2006 Dodge Stratus (Right) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Chrysler 42LE Transmission); 1993-1997 Eagle Vision (Right) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Chrysler 42LE Transmission); 1997-2001 Plymouth Prowler (Right) (Transmission Base Gear: 4 & Transmission Control Type: Automatic / Qualifier: with Chrysler 42LE Transmission)

Features & Benefits

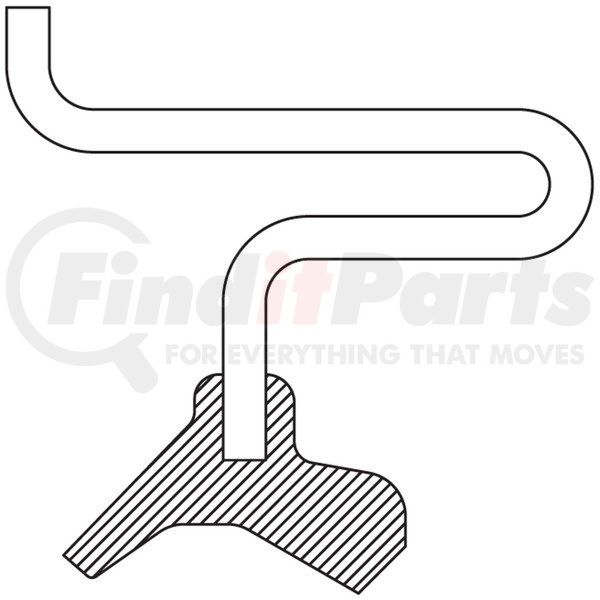

Design type: spring loaded; multi-lip
Temperature range: -20degF to 300degF / -29degC to 49degC
Resistance to EP lubricants
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Material	Polyacrylate
Inside Diameter	1.190 IN
Thickness	0.860 IN
Outside Diameter	1.896 IN
Flanged Outside Diameter (inch)	2.283 IN
Flanged Outside Diameter (mm)	57.990 MM
Helix Type	Bi-Directional Lip Design
Housing Bore (inch)	1.889 IN
Housing Bore (mm)	47.980 MM
Outside Diameter (inch)	1.896 IN
Outside Diameter (mm)	48.160 MM
Part Description	Oil Seal
Redicoat	Yes
Series	4000
Shaft (inch)	1.190 IN
Shaft (mm)	30.230 MM
Type	#
Unit of Dimension	Inch
Width (inch)	0.860 IN
Width (mm)	21.840 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00614046655768

Part Interchanges

Fits Vehicles

Plymouth Prowler (1997, 1999-2001)
Eagle Vision (1993-1997)
Chrysler New Yorker (1994-1996)
Chrysler LHS (1994-1997, 1999-2001)
Chrysler Prowler (2001-2002)
Dodge Stratus (2001-2006)
Dodge Intrepid (1993-2004)
Chrysler Concorde (1993-2004)
Chrysler Sebring (2001-2006)
Chrysler 300M (1999-2004)
Chrysler Intrepid (1993-2004)
