Name: National Seals 4278 Pinion Seal
SKU: 4278
Price: 16.49 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® oil seals are recognized worldwide for their quality and reliable performance for every type of repair.

• Design Type: Spring Loaded; Multi-Lip

• Excellent high temperature capabilities and compatible within a wide range of fluids

• Provides long life while provideing superior performance

• Temperature Range: -40°F to 400°F; -40°C to 204°C

• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
Specifications

OIL SEAL: Part Description: Oil Seal

Shaft (Inch): 1.812

Shaft (MM): 46.020

Housing Bore (Inch): 3.091

Housing Bore (MM): 78.510

Outside Diameter (Inch): 3.096

Outside Diameter (MM): 78.640

Flanged Outside Diameter (Inch): 3.400

Flanged Outside Diameter (MM): 86.360

Width (Inch): 0.485

Width (MM): 12.320

Material: Fluoro-Elastomer

Type: 86

Footnote: Flanged O.D.

Series: 4000

Redicoat: Yes
Applications

PASSENGER CAR & LIGHT TRUCK

Ford E-150 2011-2003

Ford E-150 Club Wagon 2005-2003

Ford E-150 Econoline 2002-1999

Ford E-150 Econoline Club Wagon 2002-1999

Ford Excursion 2005-2000

Ford Expedition 2012-1999

Ford F Super Duty 1997-1988

Ford F-150 2012-1999

Ford F-150 Heritage 2004

Ford F-250 1999-1985

Ford F-250 Super Duty 2012-1999

Ford F-350 1997-1985

Ford F-350 Super Duty 2012-1999

Lincoln Blackwood 2002

Lincoln Mark LT 2008-2006

Lincoln Navigator 2012-1999

Product Description

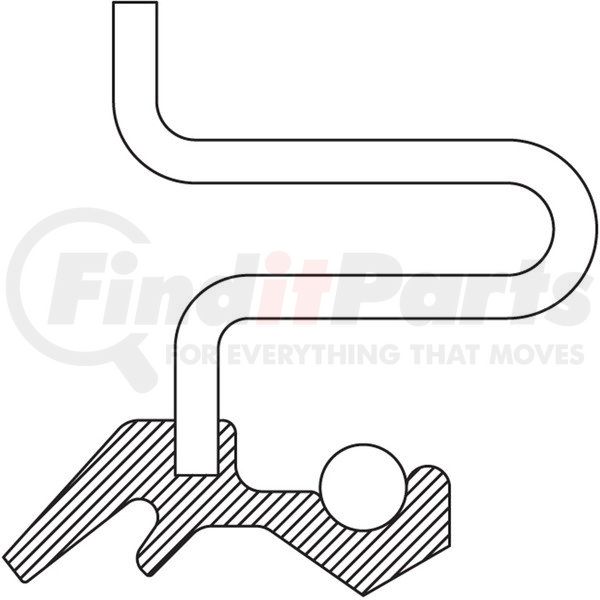

Differential Pinion Seal

Application Summary

2015-2018 Ford Transit-150 (Rear Outer); 2015-2018 Ford Transit-250 (Rear Outer); 2015-2018 Ford Transit-350 (Rear Outer); 2015-2018 Ford Transit-350 HD (Rear Outer); 2004 Ford F-150 Heritage (Rear Outer); 1999-2002 Ford E-150 Econoline (Rear Outer); 2003-2011 Ford E-150 (Rear Outer); 2003-2005 Ford E-150 Club Wagon (Rear Outer); 1999-2002 Ford E-150 Econoline Club Wagon (Rear Outer); 2000-2005 Ford Excursion (Rear Outer); 1999-2018 Ford Expedition (Rear Outer); 1988-1997 Ford F Super Duty (Rear Outer); 1999-2018 Ford F-150 (Rear Outer); 1985-1999 Ford F-250 (Rear Outer); 1999-2010 Ford F-250 Super Duty (Rear Outer); 1985-1998 Ford F-350 (Rear Outer); 1999-2010 Ford F-350 Super Duty (Rear Outer); 2015-2018 Ford Mustang (Rear Outer); 2006-2008 Lincoln Mark LT (Rear Outer); 2002 Lincoln Blackwood (Rear Outer); 1999-2018 Lincoln Navigator (Rear Outer)

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40degF to 400degF / -40degC to 204degC
Excellent high temperature capabilities
Compatible with wide range of fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Material	Fluoro-Elastomer
Inside Diameter	1.812 IN
Thickness	0.485 IN
Outside Diameter	3.096 IN
Flanged Outside Diameter (inch)	3.400 IN
Flanged Outside Diameter (mm)	86.360 MM
Housing Bore (inch)	3.091 IN
Housing Bore (mm)	78.510 MM
Outside Diameter (inch)	3.096 IN
Outside Diameter (mm)	78.640 MM
Part Description	Oil Seal
Redicoat	Yes
Series	4000
Shaft (inch)	1.812 IN
Shaft (mm)	46.020 MM
Type	86
Unit of Dimension	Inch
Width (inch)	0.485 IN
Width (mm)	12.320 MM

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956125289

Part Interchanges

Fits Vehicles

Lincoln Blackwood (2002)
Ford F-250 (1985-1999)
Ford E-150 Econoline Club Wagon (1999-2002)
Ford E-150 Econoline (1999-2002)
Ford Transit-250 (2015-2018)
Ford Transit-350 HD (2015-2018)
Ford Transit-350 (2015-2018)
Ford Transit-150 (2015-2018)
Ford Mustang (2015-2018)
Ford F Super Duty (1988-1997)
Ford F-350 (1985-1998)
Lincoln Mark LT (2006-2008)
Ford E-150 Club Wagon (2003-2005)
Ford E-150 (2003-2011)
Ford F-350 Super Duty (1999-2010)
Ford F-250 Super Duty (1999-2010)
Ford F-150 Heritage (2004)
Ford Excursion (2000-2005)
Ford Expedition (1999-2018)
Lincoln Navigator (1999-2018)
Ford F-150 (1999-2018)
