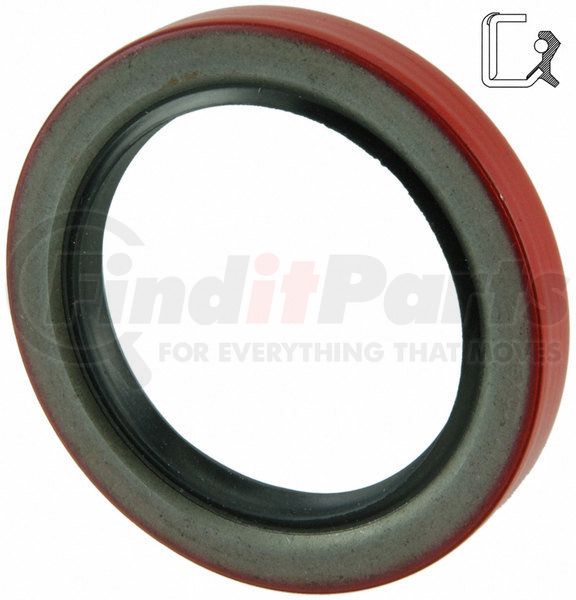

Name: National Seals 417191 Oil Seal
SKU: 417191
Price: 40.99 USD
Availability: OutOfStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® oil seals are recognized worldwide for their quality and reliable performance for every type of repair.

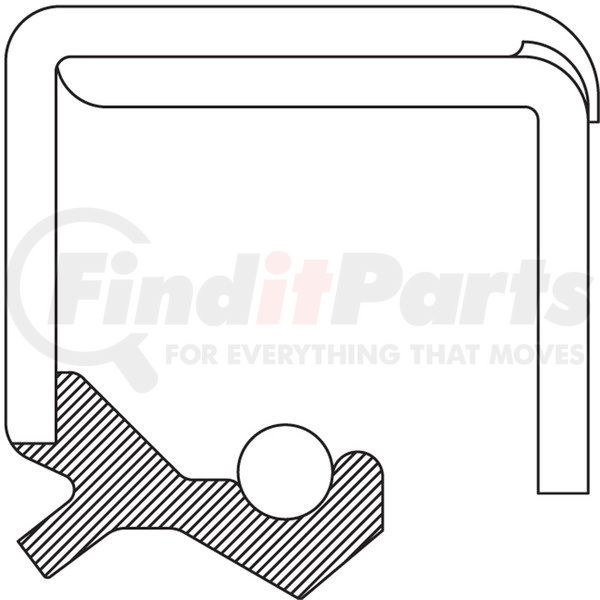

• Design Type: Spring Loaded; Multi-Lip

• Provides good low temperature capability

• Low swell in hydrocarbon fluids

• Temperature Range: -40°F to 225°F; -40°C to 107°C

• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
Specifications

OIL SEAL: Part Description: Oil Seal

Shaft (Inch): 3.375

Shaft (MM): 85.730

Housing Bore (Inch): 4.500

Housing Bore (MM): 114.300

Outside Diameter (Inch): 4.506

Outside Diameter (MM): 114.450

Width (Inch): 0.500

Width (MM): 12.700

Material: Nitrile

Type: 41

Footnote: Zero Duplication Part

Series: 410000

Redicoat: Yes

Product Description

Oil Seal

Application Summary

Industrial 3.375x4.500x0.500

Features & Benefits

Design type: spring loaded; multi-lip
Temperature range: -40degF to 225degF / -40degC to 107degC
Good low temperature capability
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Material	Nitrile
Inside Diameter	3.375 IN
Thickness	0.500 IN
Outside Diameter	4.506 IN
Sealing Material	Nitrile
Footnote	Zero Duplication Part
Housing Bore (inch)	4.500 IN
Housing Bore (mm)	114.300 MM
Outside Diameter (inch)	4.506 IN
Outside Diameter (mm)	114.450 MM
Part Description	Oil Seal
Redicoat	Yes
Series	410000
Shaft (inch)	3.375 IN
Shaft (mm)	85.730 MM
Type	41
Unit of Dimension	Inch
Width (inch)	0.500 IN
Width (mm)	12.700 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956121663
