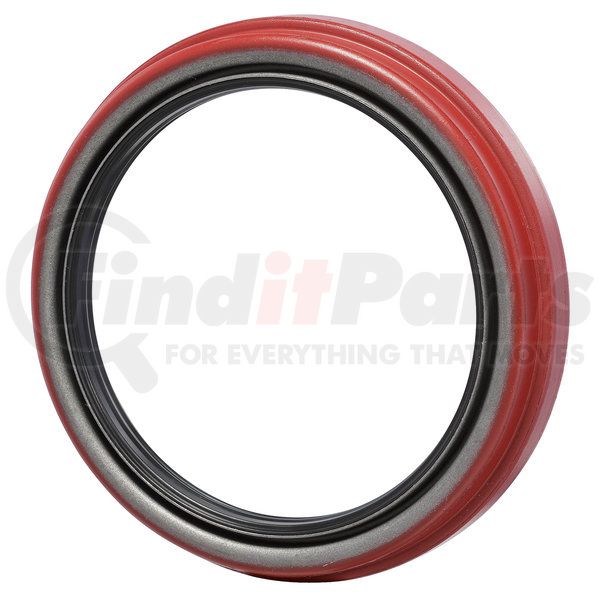

Name: National Seals 370027A Wheel Seal
SKU: 370027a
Price: 815.84 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® Red 37 Series Oil Bath Seals - The Most Dependable Point Contact Seal in the Market from the The Leader in Wheel End Technology™

• Abrasion resistant nitrile with spring-loaded main lip for positive sealing with reduced shaft interference

• Unitized construction provides greater structural integrity, easier installation and main lip protection

• Unique rubber I.D. and O.D. includes patented SURE-LOCK® ribs that prevent shaft leaks and bore contamination

• Temperature Range: -40°F to 225°F; -40°C to 107°C

• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
Specifications

OIL SEAL: Part Description: Oil Bath Seal

Shaft (Inch): 4.812

Shaft (MM): 122.220

Housing Bore (Inch): 6.311

Housing Bore (MM): 160.300

Outside Diameter (Inch): 6.316

Outside Diameter (MM): 160.430

Width (Inch): 1.062

Width (MM): 26.970

Material: Nitrile

Type: 03

Series: Red 37 Series

Installation Tool: RD289

Redicoat: Yes
Other Media

Oil Bath Seal Installation Procedures

Oil Bath Seal Troubleshooting Checklist

Commercial Vehicle Wheel End Maintenance

Product Description

Oil Bath Seal

Application Summary

IH; Rockwell-Standard FWRW

Features & Benefits

Red 37 Series oil bath seals deliver dependable point contact seal
Temperature range: -40degF to 225degF; -40degC to 107degC
Unitized construction provides greater structural integrity, easier installation and main lip protection
Abrasion-resistant nitrile with spring-loaded main lip for positive sealing with reduced shaft interference
Unique rubber I.D. and O.D. includes patented SURE-LOCK(R) ribs that prevent shaft leaks and bore contamination

Product Attributes

Material	Nitrile
Width	1.062 IN
Outside Diameter	6.316 IN
Shaft Diameter	4.812 IN
Housing Bore	6.311 IN
Housing Bore (inch)	6.311 IN
Housing Bore (mm)	160.300 MM
Installation Tool	RD289
Outside Diameter (inch)	6.316 IN
Outside Diameter (mm)	160.430 MM
Part Description	Oil Bath Seal
Redicoat	Yes
Series	370000
Shaft (inch)	4.812 IN
Shaft (mm)	122.220 MM
Type	03
Unit of Dimension	Inch
Width (inch)	1.062 IN
Width (mm)	26.970 MM

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956106899

Part Interchanges

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
