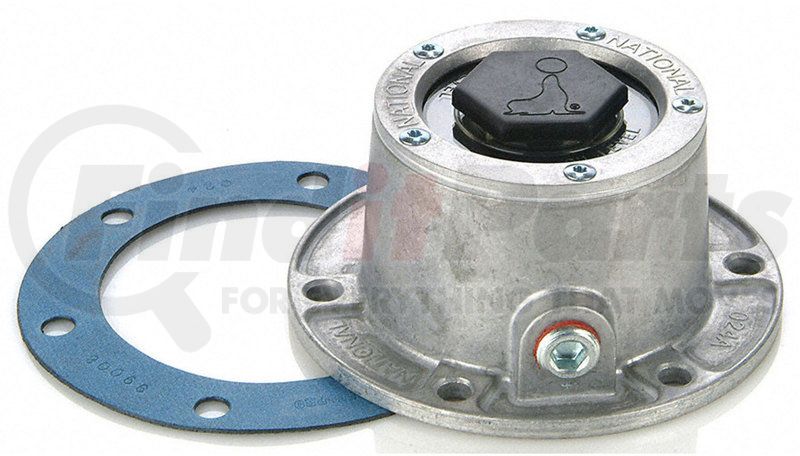

National Seals 343024 - Hub Cap
- Part Number
- 343024
- Manufacturer
- FEDERAL MOGUL-NATIONAL SEALS
- Description
-
Hub Cap
details
$4599
MSRP: $52.92
Save: $6.93
In stock
limited availability at this price!
. Learn more
FEDERAL MOGUL-NATIONAL SEALS part description
- Unbeatable protection for wheel end systems
- Cast aluminum hub cap
- Zytel® inspection window resists window clouding and cracking
- Steel Torx® screws eliminate back-out and resist contamination
- Slit-style vent plugs reduce pressure while preventing contamination
- Fel-Pro® hub cap gasket included
Part Specifications
| Part Description | Hub Cap & Gasket |
| Application | Oil |
| Bolt Circle (Inch) | 4.500 |
| Bolt Circle (MM) | 114.300 |
| Bolt Hole Diameter (Inch) | 0.358 |
| Bolt Hole Diameter (MM) | 9.093 |
| Number of Bolt Holes | 6 |
| Overall Height (Inch) | 2.625 |
| Overall Height (MM) | 66.675 |
| Inside Depth (Inch) | 1.875 |
| Inside Depth (MM) | 47.625 |
| Flange Inside Diameter (Inch) | 3.500 |
| Flange Inside Diameter (MM) | 88.900 |
| Flange Outside Diameter (Inch) | 5.250 |
| Flange Outside Diameter (MM) | 133.350 |
| Material | Cast Aluminum |
| Footnote | National center fill plug and side fill plug |
| Gasket | GKT024 |
| Window Kit | WK5999 |
| Plug | B299 |
Product Description
Hub Cap
Application Summary
Heavy Duty Cast Aluminum Truck Hub Cap
Features & Benefits
- Unbeatable protection for wheel end systems
- Cast aluminum hub cap
- Zytel(R) inspection window resists window clouding and cracking
- Steel Torx(R) screws eliminate back-out and resist contamination
- Slit-style vent plugs reduce pressure while preventing contamination
- Fel-Pro(R) hub cap gasket included
Product Attributes
| Material | Cast Aluminum |
| Application | Oil |
| Bolt Circle (inch) | 4.500 IN |
| Bolt Circle (mm) | 114.300 MM |
| Bolt Hole Diameter (inch) | 0.358 IN |
| Bolt Hole Diameter (mm) | 9.093 MM |
| Flange Inside Diameter (inch) | 3.500 IN |
| Flange Inside Diameter (mm) | 88.900 MM |
| Flange Outside Diameter (inch) | 5.250 IN |
| Flange Outside Diameter (mm) | 133.350 MM |
| Footnote | National center fill plug and side fill plug |
| Gasket | GKT024 |
| Inside Depth (inch) | 1.875 IN |
| Inside Depth (mm) | 47.625 MM |
| Number of Bolt Holes | 6 |
| Overall Height (inch) | 2.625 IN |
| Overall Height (mm) | 66.675 MM |
| Part Description | Hub Cap & Gasket |
| Plug | B299 |
| Unit of Dimension | Inch |
| Window Kit | WK5999 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708706045 |
| Harmonized Tariff Code (HTS) | 8708706045 |
| UPC | 00614046718388 |
Part Interchanges
The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
