National Seals 240949 - Oil Seal
- Part Number
- 240949
- Manufacturer
- FEDERAL MOGUL-NATIONAL SEALS
- Description
-
Oil Seal
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
FEDERAL MOGUL-NATIONAL SEALS part description
-
Description
National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® oil seals are recognized worldwide for their quality and reliable performance for every type of repair.

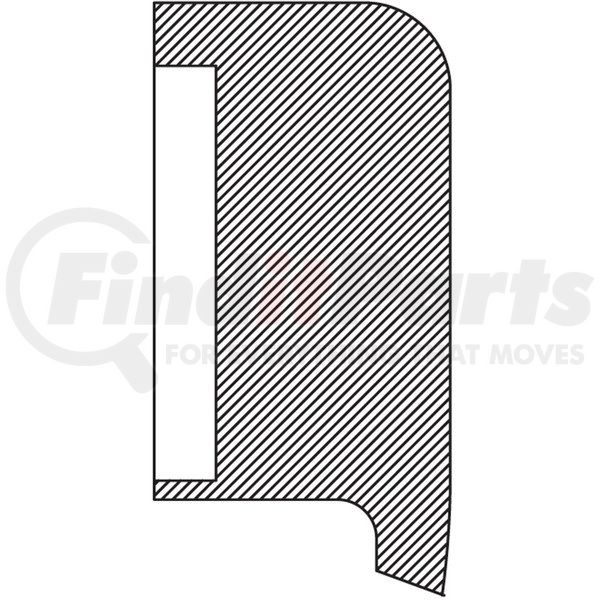

• Design Type: Springless; Single-Lip
• Provides good low temperature capability
• Low swell in hydrocarbon fluids
• Temperature Range: -40°F to 225°F; -40°C to 107°C
• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
-
Specifications
OIL SEAL: Part Description: Oil Seal
Shaft (Inch): 1.250
Shaft (MM): 31.750
Housing Bore (Inch): 1.828
Housing Bore (MM): 46.430
Outside Diameter (Inch): 1.838
Outside Diameter (MM): 46.690
Width (Inch): 0.187
Width (MM): 4.750
Material: Nitrile
Type: 24
Series: 240000
Product Description
Oil Seal
Application Summary
Industrial 1.250x1.838x0.187
Features & Benefits
- Design type: springless; single-lip
- Temperature range: -40°F to 225°F / -40°C to 107°C
- Good low temperature capability
- Low swell in hydrocarbon fluids
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Inside Diameter | 1.250 IN |
| Inside Diameter | 31.750 MM |
| Thickness | 0.187 IN |
| Thickness | 4.750 MM |
| Outside Diameter | 1.838 IN |
| Outside Diameter | 46.690 MM |
| Sealing Material | Nitrile |
| Housing Bore | 1.828 in |
| Material | Nitrile |
| Outside Diameter | 1.838 IN |
| Part Description | Oil Seal |
| Series | 240000 |
| Shaft | 1.25 in |
| Type | 24 |
| Unit of Dimension | Inch |
| Width | 0.187 in |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Remanufactured Part | N |
| UPC | 00724956078196 |
Part Interchanges
The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
