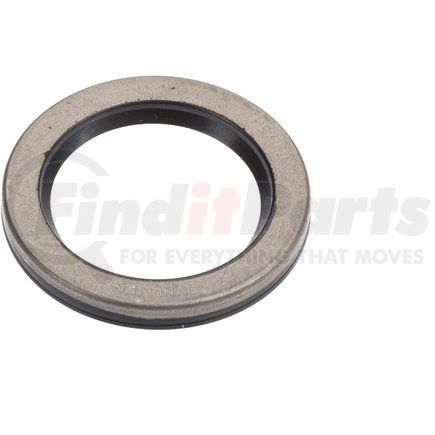

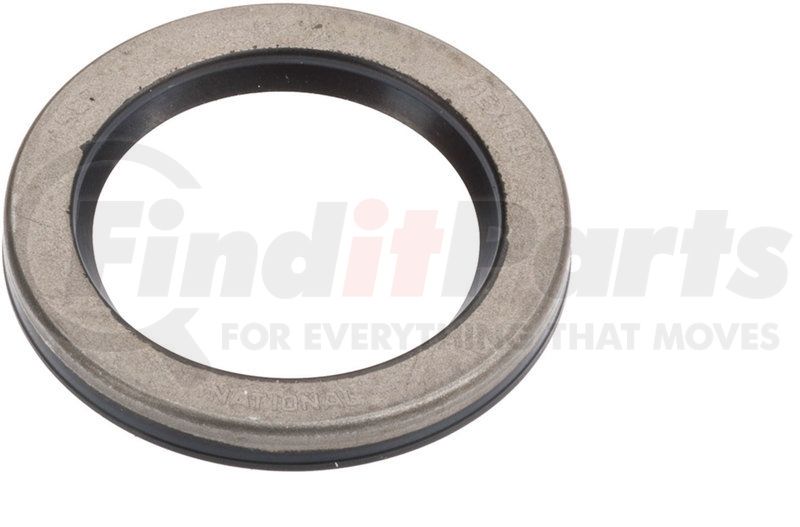

Name: National Seals 1987 Oil Seal
SKU: 1987
Price: 16.49 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

Description

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® oil seals are recognized worldwide for their quality and reliable performance for every type of repair.

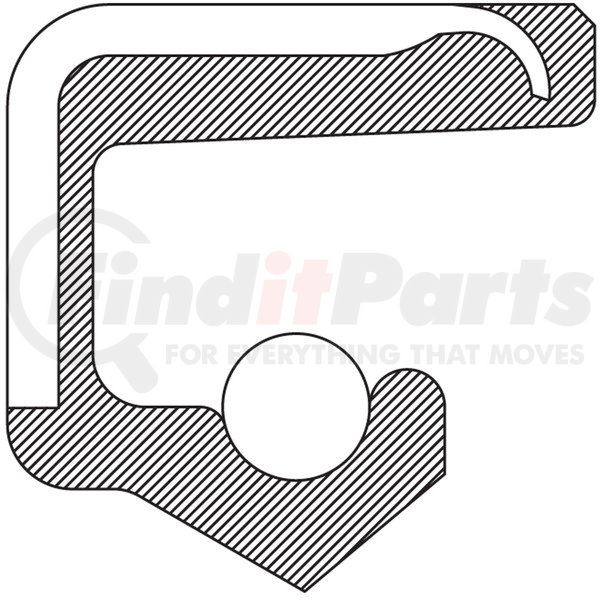

• Design Type: Spring Loaded; Single-Lip

• Compatible with most oils and EP lubricants at higher operating temperatures

• High resistance to oxidation and ozone and has low swell in hydrocarbon fluids

• Temperature Range: -20°F to 300°F; -29°C to `49°C

• Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
Specifications

OIL SEAL: Part Description: Oil Seal

Shaft (Inch): 1.378

Shaft (MM): 35.000

Housing Bore (Inch): 1.929

Housing Bore (MM): 49.000

Outside Diameter (Inch): 1.937

Outside Diameter (MM): 49.200

Width (Inch): 0.236

Width (MM): 6.000

Material: Polyacrylate

Type: 33

Series: 1000

Redicoat: Yes
Applications

PASSENGER CAR & LIGHT TRUCK

Buick Opel 1979-1976

Chevrolet Chevette 1986-1981

Chevrolet LUV 1982-1975

Chevrolet Luv Pickup 1974-1972

Chevrolet Nova 1988-1985

Chevrolet S10 1987-1982

Chevrolet S10 Blazer 1984-1983

Chrysler Concorde 2001-1998

Chrysler Intrepid 2001-1998

Dodge Intrepid 2001-1998

Geo Prizm 1997-1989

GMC S15 1987-1982

GMC S15 Jimmy 1984-1983

Isuzu I-Mark 1985-1981

Isuzu Impulse 1989-1983

Isuzu Pickup 1987-1981

Isuzu Trooper 1987-1984

Lexus HS250h 2012-2010

Pontiac Acadian 1986-1981

Pontiac T1000 1986-1981

Pontiac Vibe 2009

Scion tC 2010-2005

Scion xA 2006-2004

Scion xB 2012-2004

Toyota Camry 2011-2002

Toyota Celica 1997-1988

Toyota Corolla 2010-1983

Toyota Cressida 1992-1989

Toyota Echo 2005-2000

Toyota Highlander 2007-2001

Toyota Matrix 2012-2009

Toyota MR2 1995-1985

Toyota Paseo 1999-1992

Toyota Prius 2009-2001

Toyota RAV4 2008-2004

Toyota Solara 2008-2002

Toyota Supra 1992-1986

Toyota Tercel 1999-1980

Toyota Yaris 2012-2006

Product Description

Oil Seal

Application Summary

1981-1985 Isuzu I-Mark; 1983-1989 Isuzu Impulse; 1981-1987 Isuzu Pickup; 1984-1987 Isuzu Trooper; 1976-1979 Buick Opel; 1972-1974 Chevrolet Luv Pickup; 1981-1986 Chevrolet Chevette; 1975-1982 Chevrolet LUV; 1985-1988 Chevrolet Nova; 1983-1984 Chevrolet S10 Blazer; 1982-1987 Chevrolet S10; 1983-1984 GMC S15 Jimmy; 1982-1987 GMC S15; 1989-1997 Geo Prizm; 1981-1986 Pontiac Acadian; 1982-1986 Pontiac T1000; 2009-2010 Pontiac Vibe; 2010-2012 Lexus HS250h; 2001-2007 Toyota Highlander; 2002-2011 Toyota Camry; 1988-1997 Toyota Celica; 1983-2010 Toyota Corolla; 1989-1992 Toyota Cressida; 2000-2005 Toyota Echo; 2009-2013 Toyota Matrix; 1985-1995 Toyota MR2; 1992-1999 Toyota Paseo; 2001-2009 Toyota Prius; 2002-2008 Toyota Solara; 1986-1992 Toyota Supra; 1980-1999 Toyota Tercel; 2004-2008 Toyota RAV4; 2012-2020 Toyota Prius C; 2017-2018 Toyota Yaris iA; 2006-2019 Toyota Yaris; 2004-2006 Scion xA; 2004-2015 Scion xB; 2005-2010 Scion tC; 2016 Scion iA

Features & Benefits

Design type: spring loaded; single-lip
Temperature range: -20degF to 300degF / -29degC to 49degC
Resistance to EP lubricants
Low swell in hydrocarbon fluids
Delivers quality and reliable performance for every type of repair

Product Attributes

Material	Polyacrylate
Inside Diameter	1.378 IN
Thickness	0.236 IN
Outside Diameter	1.937 IN
Sealing Material	Polyacrylate
Housing Bore (inch)	1.929 IN
Housing Bore (mm)	49.000 MM
Outside Diameter (inch)	1.937 IN
Outside Diameter (mm)	49.200 MM
Part Description	Oil Seal
Series	1000
Shaft (inch)	1.378 IN
Shaft (mm)	35.000 MM
Type	33
Unit of Dimension	Metric
Width (inch)	0.236 IN
Width (mm)	6.000 MM

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4016931020
Harmonized Tariff Code (HTS)	4016931020
UPC	00724956062133

Part Interchanges

Fits Vehicles

Pontiac T1000 (1982-1986)
Geo Prizm (1989-1997)
GMC S15 (1982-1987)
GMC S15 Jimmy (1983-1984)
Chevrolet S10 (1982-1987)
Chevrolet S10 Blazer (1983-1984)
Chevrolet Nova (1985-1988)
Chevrolet LUV (1975-1982)
Chevrolet Chevette (1981-1986)
Isuzu Trooper (1984-1987)
Isuzu Pickup (1981-1987)
Isuzu Impulse (1983-1989)
Isuzu I-Mark (1981-1985)
Toyota Yaris iA (2017-2018)
Scion iA (2016)
Toyota Prius C (2012-2020)
Lexus HS250h (2010-2012)
Pontiac Vibe (2009-2010)
Toyota Matrix (2009-2013)
Toyota Yaris (2006-2019)
Scion tC (2005-2010)
Buick Opel (1976-1979)
Toyota RAV4 (2004-2008)
Scion xB (2004-2006, 2008-2015)
Scion xA (2004-2006)
Chevrolet Luv Pickup (1972-1974)
Pontiac Acadian (1981-1986)
Toyota Tercel (1980-1999)
Toyota Supra (1986-1992)
Toyota Solara (2002-2008)
Toyota Prius (2001-2009)
Toyota Paseo (1992-1999)
Toyota MR2 (1985-1989, 1991-1995)
Toyota Echo (2000-2005)
Toyota Cressida (1989-1992)
Toyota Corolla (1983-1997, 2009-2010)
Toyota Celica (1988-1997)
Toyota Camry (2002-2011)
Toyota Highlander (2001-2007)
