FEDERAL MOGUL-NATIONAL SEALS part description

  • Description

    National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for today™s vehicles. : • National® oil seals are recognized worldwide for their quality and reliable performance for every type of repair.
    • Design Type: Spring Loaded; Multi-Lip
    • Provides good low temperature capability
    • Low swell in hydrocarbon fluids
    • Temperature Range: -40°F to 225°F; -40°C to 107°C
    • Products sold are warranted to be free from defects in workmanship or material for a period of one (1) year from the date of purchase.
  • Specifications

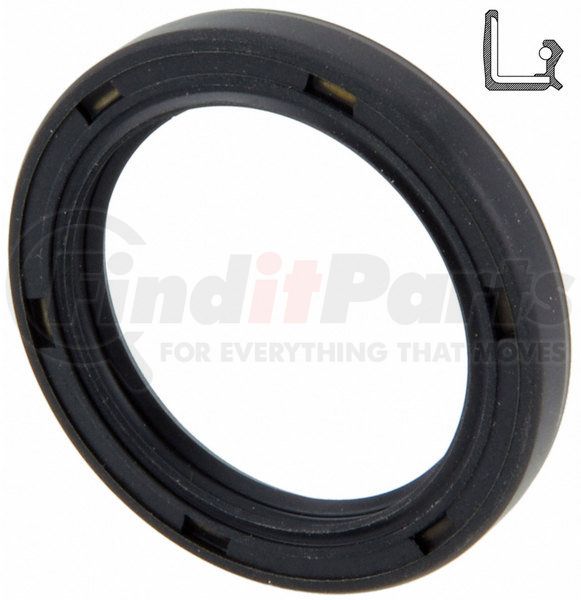

    OIL SEAL: Part Description: Oil Seal
    Shaft (Inch): 4.134
    Shaft (MM): 105.000
    Housing Bore (Inch): 5.512
    Housing Bore (MM): 140.000
    Outside Diameter (Inch): 5.523
    Outside Diameter (MM): 140.280
    Width (Inch): 0.472
    Width (MM): 12.000
    Material: Nitrile
    Type: 32
    Series: METRIC

Product Description

Oil Seal

Application Summary

Industrial Metric

Features & Benefits

  • Design type: spring loaded; multi-lip
  • Temperature range: -40°F to 225°F / -40°C to 107°C
  • Good low temperature capability
  • Low swell in hydrocarbon fluids
  • Delivers quality and reliable performance for every type of repair

Product Attributes

Inside Diameter 4.134 IN
Inside Diameter 105.000 MM
Thickness 0.472 IN
Thickness 12.000 MM
Outside Diameter 5.523 IN
Outside Diameter 140.280 MM
Sealing Material Nitrile
Housing Bore 5.512 in
Material Nitrile
Outside Diameter 5.523 IN
Part Description Oil Seal
Series METRIC
Shaft 4.134 in
Type 32
Unit of Dimension Metric
Width 0.472 in

Additional Information

Country of Origin (Primary) TW
Harmonized Tariff Code (Schedule B) 4016931020
Harmonized Tariff Code (HTS) 4016931020
Remanufactured Part N
UPC 00724956040674

Part Interchanges

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
