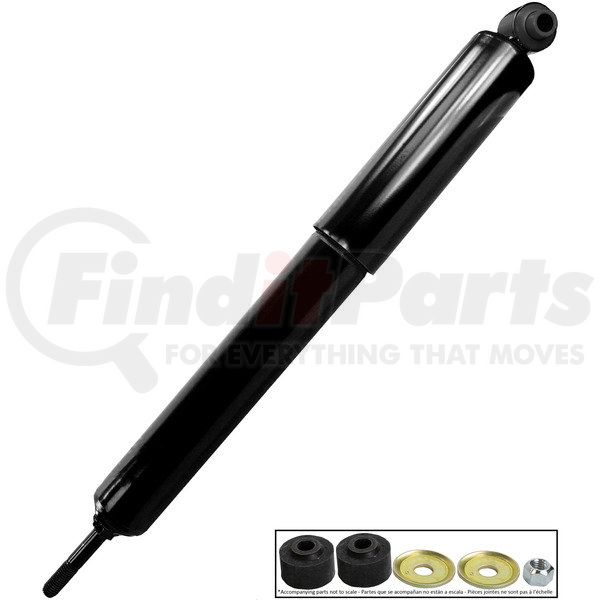

Name: Monroe 65507 Magnum Shock Absorber - 21.85 in. Extended Length, Rear
SKU: 65507
Price: 73.99 USD
Availability: InStock

MONROE part description

Technical Specifications:

Series	Magnum
Location	Rear
Quantity Sold	Sold Individually
Compressed Length	13.7656 in.
Extended Length	21.8594 in.
Travel Length	8.093 in.
Dust Shield	Yes
Dust Shield Material	Metal
Upper Mounting Description	Loop Bushing & Sleeve Mount5/8" Sleeve ID X 2.9/16" Sleeve OAL
Lower Mounting Description	Stem Mount3.5/16" Stem Length X 5/8"-11 Thread Pitch
Compressed Bumper Stop	No
Extended Bumper Stop	No
Extended Hydraulic Lockout	Yes
Parts Pack	P01482
UPC	048598174079
VMRS Code	016008003
UNSPSC	25172011
Harmonized Tariff Code	8708801600

Application Summary

2013-2004 International 5600i Rear
2020-2018 International HV507 Rear
2020-2018 International HV513 Rear
2020-2018 International HV607 Rear
2020-2018 International HV613 Rear
2019-2017 International HX515 Rear

Product Description

Magnum Shock Absorber

Application Summary

2013-2004 International 5600i Rear, 2020-2018 International HV507 Rear, 2020-2018 International HV513 Rear, 2020-2018 International HV607 Rear, 2020-2018 International HV613 Rear, 2019-2017 International HX515 Rear

Product Attributes

Compressed Length	13.7656 IN
Travel Length	8.093 in
Extended Length	21.8594 in
Dust Shield Material	Metal
Compressed Bumper Stop	No
Dust Shield Included	Yes
Extended Bumper Stop	No
Extended Hydraulic Lockout	Yes
Lower Mounting Code	S6
Lower Mounting Description	Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
Parts Pack	P01482
Upper Mounting Code	LS62
Upper Mounting Description	Loop Bushing & Sleeve Mount - 5/8" Sleeve ID X 2.9/16" Sleeve OAL

Additional Information

Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
MSDS Sheet Number	01164
Refurbished Part	N
Remanufactured Part	N
UPC	00048598174079
VMRS Code	016008003
UNSPSC	25172011

Part Interchanges

MONROE 65507 Cross Reference

We have 11 alternatives for the 65507 by MONROE:

Fits Vehicles

Western Star 4700SF (2012-2021)
Western Star 4700SB (2012-2021)
Freightliner 122SD (2013-2021)
International HV507 (2019-2021)
International HV513 (2019-2021)
International HV613 (2019-2021)
International HV607 (2019-2021)
Mack Anthem (2018-2021)
Mack Granite (2015-2021)
International HX520 (2018-2021)
Peterbilt 520 (2017-2021)
International HX620 (2017-2021)
International HX615 (2017-2021)
International HX515 (2017-2021)
Peterbilt 389 (2008-2021)
Kenworth T880 (2014-2021)
Kenworth T680 (2013-2021)
Mack GU8 (2008-2019)
Mack GU7 (2008-2019)
Peterbilt 388 (2008-2015)
Peterbilt 367 (2008-2021)
Peterbilt 567 (2014-2021)
Mack GU5 (2012-2018)
Mack GU4 (2012-2019)
Peterbilt 365 (2008-2021)
Kenworth T400 (2010-2021)
Autocar LLC. Xpeditor (2008-2021)
Peterbilt 357 (2002-2008)
Peterbilt 320 (2001-2018)
Peterbilt 348 (2010-2021)
Autocar LLC. Xpert (2012, 2014-2021)
Freightliner 108SD (2012-2021)
Freightliner 114SD (2012-2021)
International 5600i (2004-2014)
Freightliner M2 112 (2003-2021)
Kenworth T370 (2008-2021)
Kenworth T270 (2008-2021)
Freightliner M2 106 (2002-2021)

Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.
