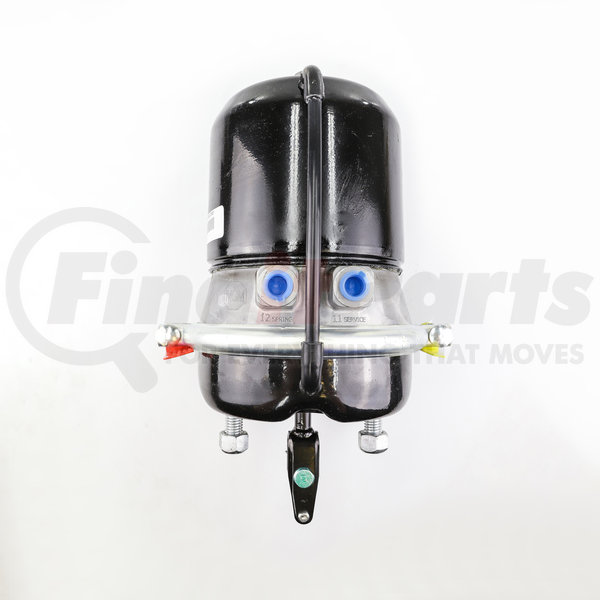

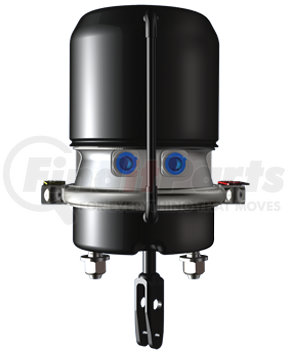

MGM Brakes MJS3024ET951 - Combination - with Welded Yoke - Y=2.25
- Part Number
- MJS3024ET951
- Manufacturer
- MGM BRAKES
- Description
-
Combination - with Welded Yoke - Y=2.25
details
$32649
MSRP: $794.19
Save: $467.70
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
General Description
Dry Bulk Chemicals
Features and Benefits
- Tamper Resistant Design
- Lighter Weight
- 3 inch (76.2 mm) Long Stroke
- Compact Size
- Patented Integral Release Bolt Mechanism -Minimal Bolt Protrusion -Approx. 1.25 inch (31.8 mm) Protrusion On "Long Stroke" Models When Manually Released
- Lower Hold Off Pressure (Less Air Consumption)
- Epoxy Coated Return Spring
- Non-Coil Clash Power Spring
- Increased Corrosion Resistance -Steel head, Epoxy Coated
- Available With 1,749 lb (793.3 kg) -2,450 lb (1,111.3 kg) of Push-Rod Braking Force @ 1.25 inch (31.8 mm) Stroke/Service Brake Sizes 17-36
- Center Hole Shield
Technical Specifications
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) Combination | 22.40 lb (10.2 kg) |
| Weight lb (kg) Single | 14.60 lb (6.6 kg) |
| A | 10.33" (262.4 mm) |
| B | 7.94" (201.7 mm) |
| C | 8.32" (211.3 mm) |
| D | 6.76" (171.7 mm) |
| E | 4.75" (120.7 mm) |
| F | 5/8" - 11 UNC (M16 x 1.5 - 6g) |
| Inlets | 3/8" - 18 NPTF (M16 x 1.5 - 6H) |
| Y | 2.25" |
