MGM Brakes 1428001 - Brake Chamber, Service, Long Stroke
- Part Number
- 1428001
- Manufacturer
- MGM BRAKES
- Description
-
Brake Chamber, Service, Long Stroke
details
$7299
MSRP: $126.49
Save: $53.50
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
MGM BRAKES part description
Specifications
Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.550
Port Size: 3/8-18 NPTF
Stroke (in.): 3.00
Service Size: 24
Spring Size: N/A
Features & Benefits
- Formed Steel Pressure Cap -Epoxy-Coated
- Formed Steel Non-Pressure Chamber -Epoxy-Coated
- Heavy-Duty Nylon Reinforced Diaphragms
- Top and Side Air Ports -3/8" NPTF
- Center Hole Shield (except C16L 2.5)

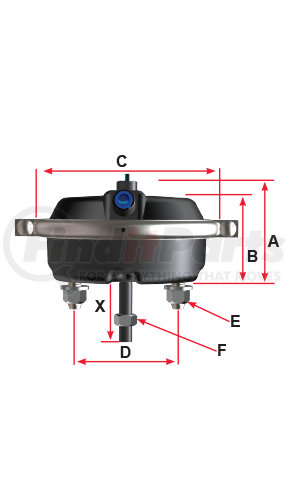

Technical Data
| Stroke | 3.00" (76.2 mm) |
| Weight lb (kg) | 9.72 lb (4.8 kg) |
| A | 5.30" (134.6 mm) |
| B | 4.22" (107.0 mm) |
| C | 7.37" (187.2 mm) |
| D | 4.75" (120.7 mm) |
| E | 5/8" - 11 UNC |
| F | 5/8" - 18 UNF |
| Inlets | 3/8" - 18 NPTF |
| X - Min. (aftermarket unit only) | 8.00" (203.2 mm) |
Replacement Parts
| 1 | Kit -NP Chamber (a) | 9015200 |
| 2 | Kit -Nuts & Bolts | 9003001 |
| 3 | Clamp Band Assembly | 8216025 |
| 4 | Diaphragm | 8017924 |
| 5 | Kit -Push-Rod Assembly (a) SAE | 9064006 |
| 5a | Kit -Push-Rod Assembly (a) METRIC | 9064027 |
| 6 | Return Spring | 8068012 |
| 7 | Kit -Center Hole Shield | 9065002 |
| 8 | NP Chamber Assembly (a) | 8215200 |
| 9 | Kit - Nuts & Washers SAE | 9002001 |
| 9a | Kit -Nuts & Washers METRIC | 9002002 |
| 10 | Hex Nut -Yoke SAE | 8130004 |
| 10a | Hex Nut -Yoke METRIC | 8130016 |
| 11 | Pressure Cap (2-inlet/steel | 8210026 |
| *NOTE: | (a)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units. |
MGM BRAKES 1428001 Cross Reference
We have 6 alternatives for the 1428001 by MGM BRAKES:
