MGM Brakes 1427801 - Brake Chamber, Service, Model C24l

Specifications

Aftermarket Unit
Mounting Bolt Thread: 5/8-11
Mounting Bolt Length (in.): 1.570
Neoprene Diaphragm
Port Size: 3/8-18 NPTF
Stroke (in.): 2.50

Service Size: 24
Spring Size: N/A

Features & Benefits

• Formed Steel Pressure Cap -Epoxy-Coated
• Formed Steel Non-Pressure Chamber -Epoxy-Coated
• Heavy-Duty Nylon Reinforced Diaphragms
• Top and Side Air Ports- 3/8" NPTF
• Center Hole Shield (Except type 12 and type 16)

Model: C24L

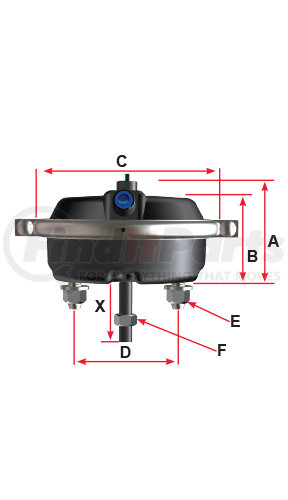

Technical Data

Stroke	2.50" (63.5 mm)
Weight lb (kg)	9.00 lb (4.1 kg)
A	4.42" (112.3 mm)
B	3.67" (93.2 mm)
C	7.34" (186.4 mm)
D	4.75" (120.7 mm)
E	5/8" - 11 UNC
F	5/8" - 18 UNF
Inlets	3/8" - 18 NPTF
X - Min. (aftermarket unit only)	8.00" (203.2 mm)

Replacement Parts

1	Kit -NP Chamber (b)	9015117
2	Kit -Nuts & BOlts	9003001
3	Clamp Band Assembly	8216025
4	Diaphragm	8017224
5	Kit -Push-Rod Assembly (b) SAE	9064002
5a	Kit -Push-Rod Assembly (b) METRIC	9064016
6	Return Spring	8068002
7	Kit -Center Hold Shield	9065002
8	NP Chamber Assembly (b)	8215105
9	Kit -Nuts &Washers SAE	9002001
9a	Kit -Nuts & Washers MERTIC	9002002
10	Hex Nut -Yoke SAE	8130004
10a	Hex Nut -Yoke METRIC	8130016
11	Pressure Cap (2-inlet/steel)	8210002
*NOTE:	(a)Type 12 pressure cap is cast aluminum
*NOTE:	(b)To ensure correct stroke alert positioning, kits MUST only be used on the designated MGM brake units.

MGM BRAKES 1427801 Cross Reference

We have 2 alternatives for the 1427801 by MGM BRAKES:

• MERITOR W763276X24
• MERITOR V953276X24
