HORTON part description

Specifications

A 2.21
B 1.93
C 5.00
E 4.49
F 0.36
G FOUR
H -
J 0.25
TMfg FREIGHTLINER STERLING
Service 996121
OEM 986049
D 6.00
L 4.59
D1 SIX
K 3.78
CL12 12V

Cross Reference

Cross Ref. Description horton oem# horton service#
Horton OEM to Service 986049 996121

Product Description

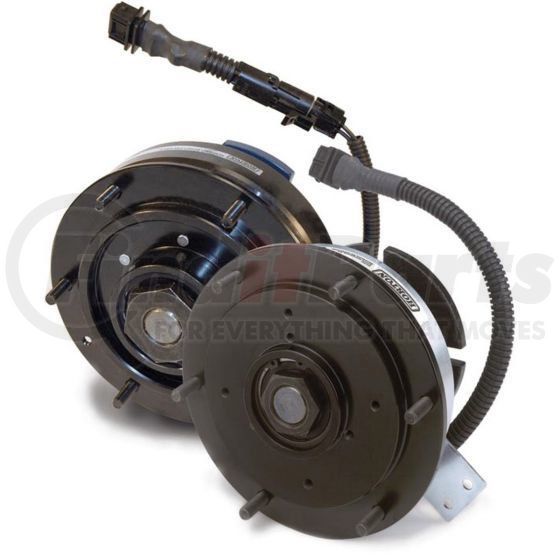

Engine Cooling Fan Clutch

Application Summary

FREIGHTLINER, STERLING

Requires 996034 Anti-Rotation Strap/Bracket for service part replacement.

Product Attributes

BASE TO FAN 3.78
BOLT CIRCLE 6
Fan Pilot 5
Flange Diameter 0.253937008 IN
Heavy Duty No
MOUNTING BOLT CIRCLE 4.49
MOUNTING FLANGE DIAMETER 0.3
MOUNTING FLANGE THICKNESS 0.25
MOUNTING PILOT DIAMETER 2.21
Number of Bolts 6
Number of Fan Mounting Bolts 0.36
NUMBER OF SLOTS/HOLES 4
Overall Length 4.59
Pilot Depth 1.93
SLOT WIDTH/THREAD 0.36
Volts 12V

Additional Information

OEM's Part Number 986049
Original Supplier Part Number 986049

Part Interchanges

HORTON 996121 Cross Reference

We have 3 alternatives for the 996121 by HORTON:

Horton® is a world-renowned manufacturer of high-grade engine cooling solutions for the trucking industry for over 65 years. This company believes that improved airflow translates to better performance, reduced emissions, more significant fuel savings, and happy customers. Horton offers best-in-class fans, fan drives, and clutches for on-highway big rigs like heavy-, medium-, and light-duty trucks, R.V.s, buses, refuse vehicles, commercial vehicles, and other applications. This company also takes pride in its off-highway and heavy-duty products, including sweepers, agricultural tractors, mining trucks, aerial work platforms, excavators, generators, articulated vehicles, and industrial compressors. Made to operate in harsh environments, these Horton products withstand temperature extremes, dust, dirt, chemicals, as well as stop-and-go driving. For truck parts that consume less fuel, last longer, and run quieter, trust no other brand than Horton.
