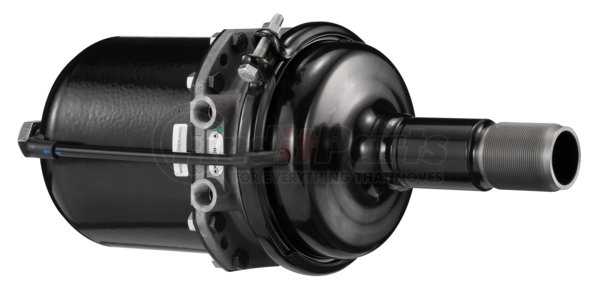

WABCO 4253310000 - TRISTOP-CYLINDER WEDGE F-24/24
$88499
MSRP: $1,439.72
Save: $554.73
In stock
limited availability at this price!
. Learn more
WABCO part description
Technical Specifications
| Brand | WABCO Original |
| Part type | Premium original quality |
| Technical Specification | OE specification |
| Max operating pressure | 8.0/8.0 bar |
| Calculated Volume dm | 16.7852 |
| Mounting | M45 x 1.5 |
| Port threads | M16 x 1.5 |
| Temperature range | -40°C to +80°C |
| Type | 24/24 |
| Stroke | 53/53 mm |
| Port thread 11 | M16 x 1.5 JED - 152 |
| Output force M | 8700 N |
| Total length | 357 mm |
| Type of operation | Wedge |
| Output force 3 | 8700 N |
| Release pressure | 5.1 bar |
| Thread length | 60 mm |
| Body | Steel |
WABCO 4253310000 Cross Reference
We have 8 alternatives for the 4253310000 by WABCO:
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
