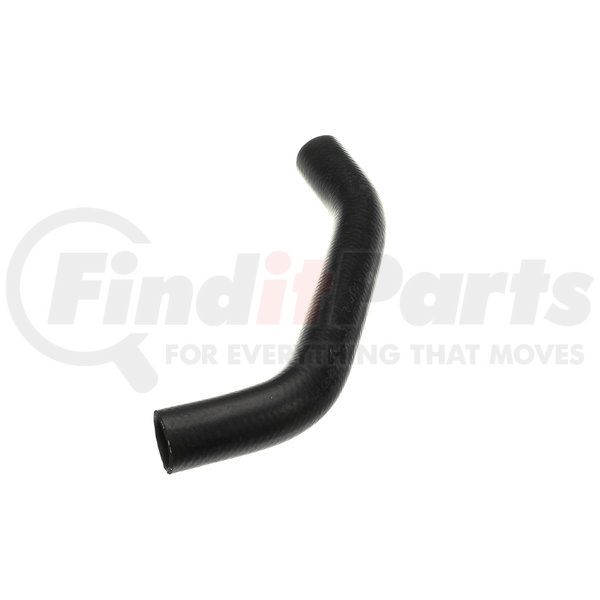

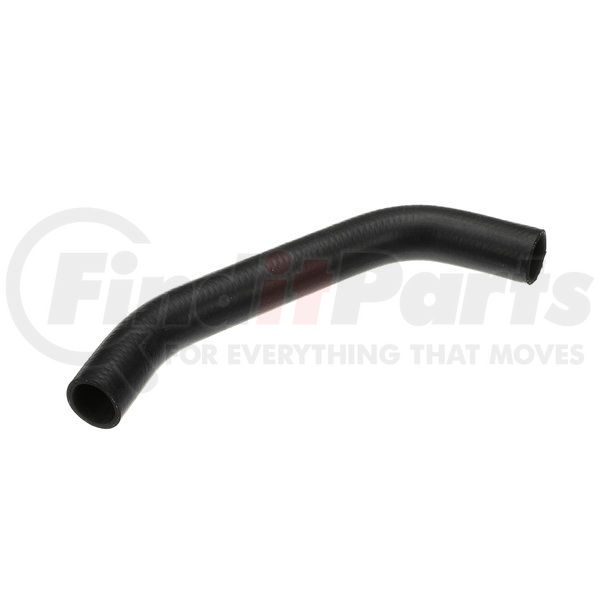

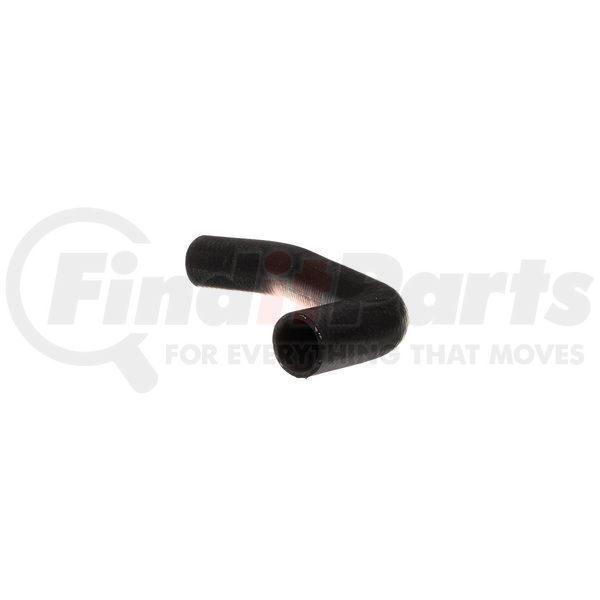

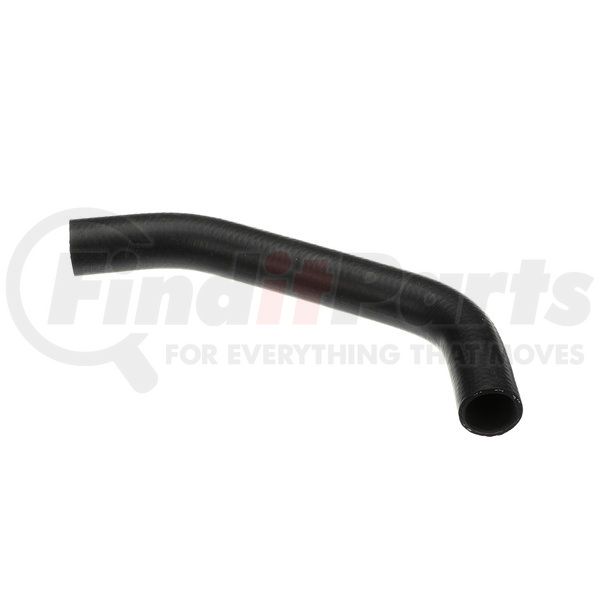

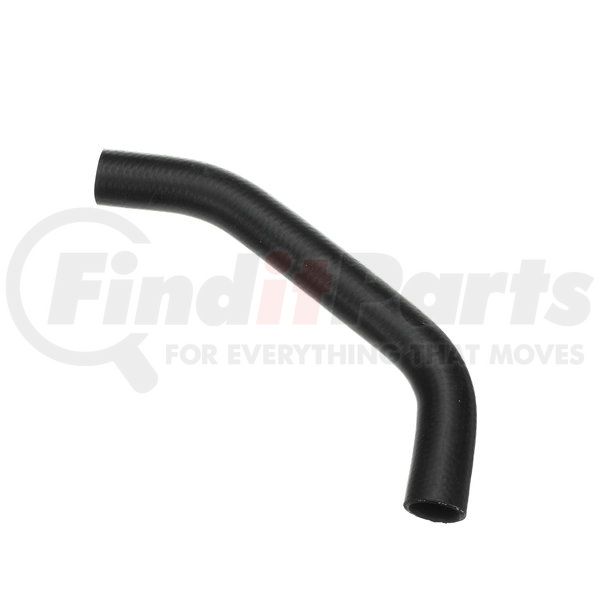

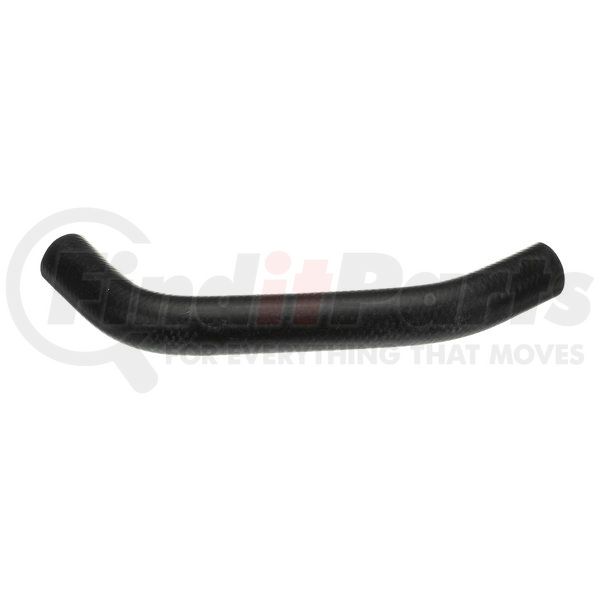

Name: Gates 23687 Hose
SKU: 23687
Price: 17.49 USD
Availability: InStock

GATES CORPORATION part description

Technical Specifications

Part Number	23687
Application Summary	2015-11 Jeep, Grand Cherokee, V-6 3.6 L, Upper
Centerline Length (in)	27.4
Centerline Length (mm)	696
Contains Spring	No
Inside Diameter 1 (in)	1.5
Inside Diameter 1 (mm)	38
Marketing Description	Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications. Recommend for upper, lower, by-pass, heater and other coolant hose applications. Heat and ozone resistant cover. Engineered to resist electrochemical degradation - the leading cause of hose failure. Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications. Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications. Temperature Rating: -40 F to 275 F (-40 C to 135 C) in coolant hose applications. Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed. Gates - Driven By Possibility
Modular Hose	No
Number of Branches	0
Product Description - Invoice	Coolant Hose
Product Description - Long	Molded Coolant Hose
Product Description - Short	Hose

Product Description

Premium Molded Coolant Hose

Application Summary

2015-11 Jeep, Grand Cherokee, V-6 3.6 L, Upper

Features & Benefits

Specifically-engineered materials resist collapse under vacuum
Engineered to resist electrochemical degradation, the leading cause of hose failure
Pre-shaped to fit and to ensure perfectly sealed conditions
EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
Caution: Do not use for fuel or oil transfer applications

Product Attributes

Material	EPDM
End 1 Inside Diameter	1.5 in
End 2 Inside Diameter	1.5 in
Contains Spring	No
Centerline Length	27.4 IN
Branch Quantity	0
9839	Yes
9845	0
9940	No

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4009310000
UPC	00770075458043
VMRS Code	042004014
UNSPSC	40142000

Part Interchanges

Fits Vehicles

Dodge Durango (2011-2015)
Jeep Grand Cherokee (2011-2015)
