Name: Haldex KN28131 Vlvrelay
SKU: kn28131
Price: 127.49 USD
Availability: InStock

HALDEX part description

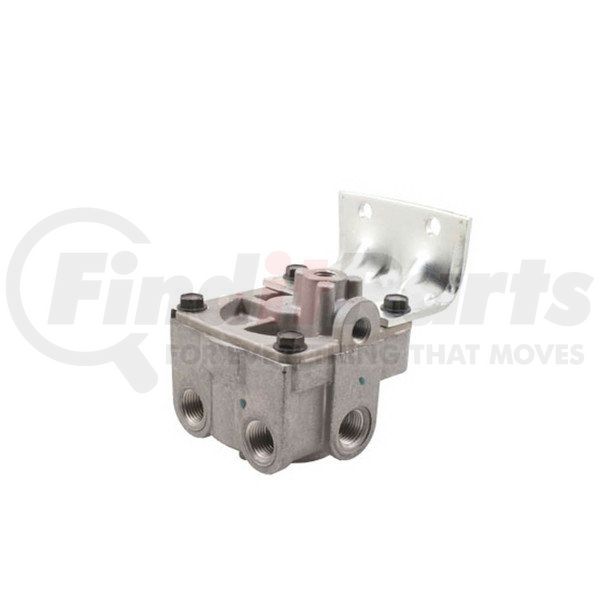

HALDEX TWO-PORT RELAY VALVE

Relay Valve - 2-Port - Single Control Line

Cover may be rotated without affecting performance or warranty.
Used to Apply and Release Service Brakes on Tractor or Trailer
Approximate Weight: 3 lbs.

Notes:

Includes bushings and plugs to match OEM production valves.

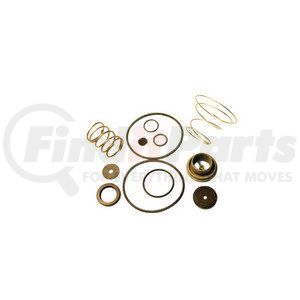

Repair Kit use part number RN10HK.

Technical Specifications:

Supply (2):	1/2" in.
Delivery (2):	1/2" in.
Control (1):	1/4" in.
Crack Pressure:	4.6 PSI
Notes:	Includes K202000 Bracket
OEM Part Number:	N30106F
Approximate Weight:	3 lbs.

Haldex Air Brake Relay Valve

Get improved air brake system performance with the Haldex air brake relay valve. Manufactured by a brand with more than 100 years of engineering expertise, this 2-port, single control line ABS relay valve is designed to provide supreme levels of quality, performance, and reliability.

Features & Benefits

Can be used to apply and release service brakes on tractor or trailer
Product’s cover may be rotated without affecting the warranty or performance
Weighs approximately 3 lbs. and has mounting holes
Comes with bushings and plugs to match OEM production valves

Product Description

Relay Valve - Two Port - Single Control Line

Features & Benefits

Can be used to apply and release service brakes on tractor or trailer
Product’s cover may be rotated without affecting the warranty or performance
Weighs approximately 3 lbs. and has mounting holes
Comes with bushings and plugs to match OEM production valves

Haldex Air Brake Relay Valve

Product Attributes

Control Port Diameter	1/4 in.
Delivery Port Diameter	2 @ 1/2 in.
Freight Class	70
New Or Remanufactured	New
Notes	Single Control Line with Bracket
Opening Pressure	4.6 PSI
Port Quantity	5
Supply Port Diameter	2 @ 1/2 in.

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8481200070
Harmonized Tariff Code (HTS)	8481200070
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653010717
VMRS Code	013010009

Part Interchanges

HALDEX KN28131 Cross Reference

We have 2 alternatives for the KN28131 by HALDEX:

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
