Haldex KN27010 - Height Control Egp
$11899
MSRP: $420.58
Save: $301.59
In stock
limited availability at this price!
. Learn more
HALDEX part description
HALDEX IR HEIGHT CONTROL VALVE

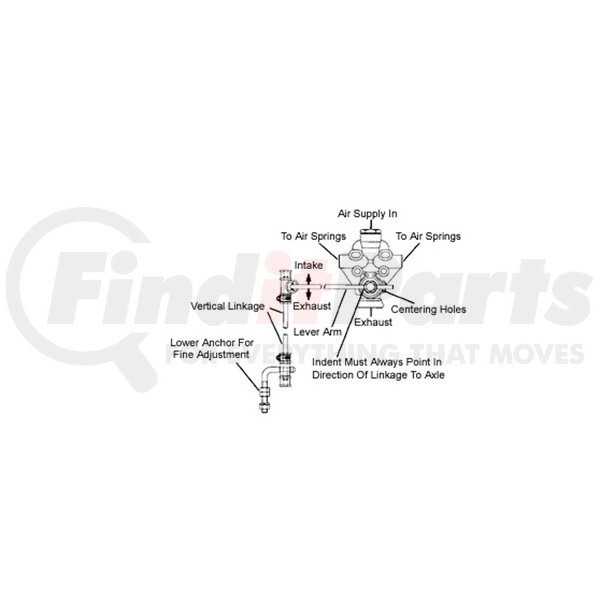

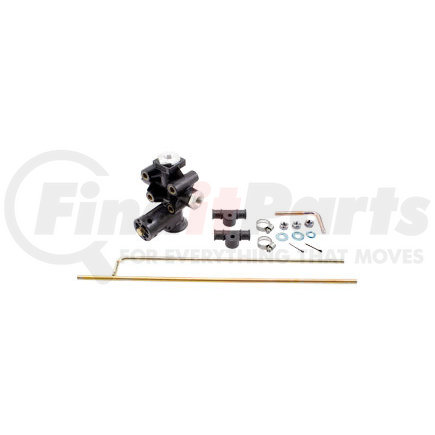

EGP High Flow Leveling Valve Kit- Used to maintain vehicle height on an air suspended chassis.
- Made of durable (EGP) Engineering Grade Plastic.
- Linkage included in specified lengths.
- One valve can be used for left and right installations.
- No vertical link arm; special Navistar. Adjust and cut horizontal arm to desired length for application.
- One valve can control two suspension bellows.
- High flow valve recommended for tractor application.
- All ports: 1/4" NPT
Notes:
- Variations in the height of the chassis resulting from different load conditions are equalized by inflating or deflating the air suspension bellows in proportion to the respective loads carried by the vehicle.
- Exhaust Cover Repair Kit use part number RN10JE.

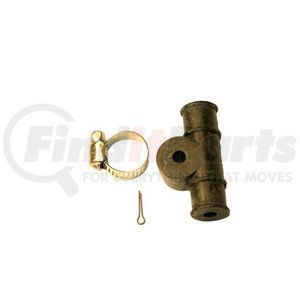

- Linkage Repair Kit use part number RN10JC.
Technical Specifications:
| Horizontal Arm Length: | 8.2" (Max) |
| Notes: | Without Dump and Linkage Kit Included |
| All Ports: | 1/4" NPT |
Haldex IR Height Control Valve
Save on fuel and maintenance cost and reduce fleet downtime by outfitting your trucks with Haldex IR height control valve. This component adds air to or releases air from the suspension to sustain suspension ride height.
Features & Benefits
- A high-quality Immediate Response height control valve that helps maintain vehicle height on an air suspended chassis
- Made of durable (EGP) Engineering Grade Plastic to ensure it lasts longer than the competition
- Comes with a linkage in specified lengths
- One valve can be used for right and left installations, while another valve can control two suspension bellows
- Does not include a vertical link arm
- A high-flow valve that’s highly recommended for tractor applications
Product Description
EGP High Flow Leveling Valve Kit
Application Summary
Variations in the height of the chassis resulting from different load conditions are equalized by inflating or deflating the air suspension bellows in proportion to the respective loads carried by the vehicle.
Features & Benefits
- A high-quality Immediate Response height control valve that helps maintain vehicle height on an air suspended chassis
- Made of durable (EGP) Engineering Grade Plastic to ensure it lasts longer than the competition
- Comes with a linkage in specified lengths
- One valve can be used for right and left installations, while another valve can control two suspension bellows
- Does not include a vertical link arm
- A high-flow valve that’s highly recommended for tractor applications
Haldex IR Height Control Valve
Save on fuel and maintenance cost and reduce fleet downtime by outfitting your trucks with Haldex IR height control valve. This component adds air to or releases air from the suspension to sustain suspension ride height.
Product Attributes
| Air Port Thread Diameter | 1/4 in. NPT |
| Dump Valve Included | Yes |
| Exhaust Port Diameter | 1/4 in. NPT |
| Freight Class | 70 |
| Linkage Arm Adjustment | Horizontal |
| Linkage Arm Length | 8.2 in. |
| Series | Immediate Response (IR) |
| Supply Port Diameter | 1/4 in. NPT |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8481200070 |
| Harmonized Tariff Code (HTS) | 8481200070 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 24 MO, 200,000 MI=Air Compressors EL850(4), EL1300(5), EL1600(5), Tu-Flo 501/550(4), Tu-Flo 700/750(4), 12 MO, 100,000 MI=All Other REMAN Products Not Listed(13). See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653010564 |
| VMRS Code | 016008023 |
Part Interchanges
HALDEX KN27010 Cross Reference
We have 3 alternatives for the KN27010 by HALDEX:
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
