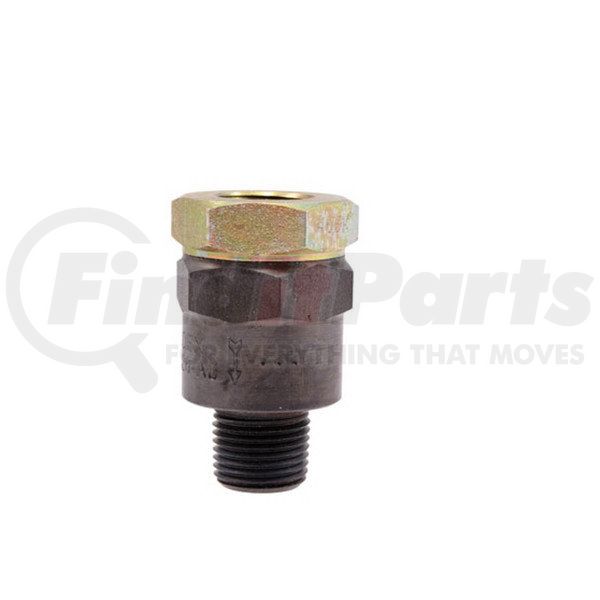

Name: Haldex KN23040 Check Valve
SKU: kn23040
Price: 29.99 USD
Availability: InStock

HALDEX part description

HALDEX CHECK VALVE

One-Way Check Valve

Permits air flow in one direction only.
Used wherever pressures must be isolated and not allowed to flow back.
Male-female thread.

Notes:

Use heavy duty models on compressor discharge.

Technical Specifications:

Inlet/Outlet:	3/4"
Length:	2.31"
Repair Kit:	RN10Y
Notes:	Standard
OEM Part Number:	N13526J
Style:	1

Haldex Air Brake Check Valve

Equip your air brake system with a highly reliable check valve like the Haldex air brake check valve. Manufactured by a brand with over 100 years of engineering experience, this valve is designed to meet or exceed OEM standards for superior durability and performance.

Features & Benefits

Designed as a one-way check valve that allows airflow in one direction only
Must be used wherever pressures should be isolated and not allowed to flow back
Designed with a male-female thread
For compressor discharge, use the heavy-duty model

Product Description

Valvecheck,Single,3/4M,3/4F

Features & Benefits

Designed as a one-way check valve that allows airflow in one direction only
Must be used wherever pressures should be isolated and not allowed to flow back
Designed with a male-female thread
For compressor discharge, use the heavy-duty model

Haldex Air Brake Check Valve

Product Attributes

Freight Class	70
Inlet Port	0.75
Length	2.31 in.
Outlet Port	0.75

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8481200070
Harmonized Tariff Code (HTS)	8481200070
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653010373
VMRS Code	013010013

Part Interchanges

HALDEX KN23040 Cross Reference

We have 3 alternatives for the KN23040 by HALDEX:

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
