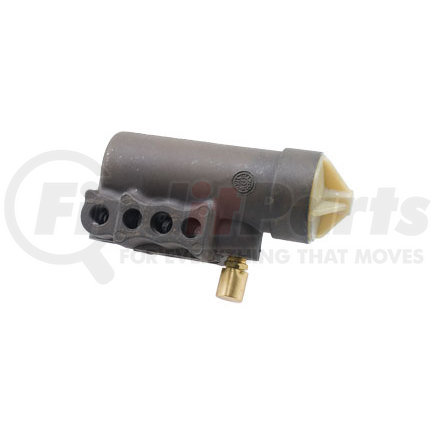

Name: Haldex KN18534 Governor
SKU: kn18534
Price: 82.49 USD
Availability: InStock

HALDEX part description

HALDEX GOVERNOR

Piston Type Governor - High Temperature Applications

Operates in conjunction with the compressor unloading mechanism.
Automatically controls the air pressure in the air supply system between the desired predetermined maximum and minimum pressures.
Direct compressor or remote mount.
1/8-27 NPT ports. (Unless Noted)
.336 diameter mounting holes.
Approximate weight 1 lb. 1 oz.

Notes:

Service Kit use part number RN32W.

Technical Specifications:

Cut-In Pressure:	105 PSI Nominal
Cut-Out Pressure:	120 PSI Nominal
Adjustable:	Yes
Notes:	Breather Included
OEM Part Number:	N30190CA
Port Thread Size:	1/8-27 NPT (Unless Noted)
Mounting Holes:	.336 diameter
Approximate Weight:	1 lb.

Haldex Air Brake Compressor Governor

The Haldex air brake compressor governor ensures the air brakes have a consistent pressure to function properly. Its piston system is designed with durability in mind and supports various mounting options.

Features & Benefits

Piston-type construction for durability and reliable performance
Automatically adjusts air pressure in the air supply system for consistent braking
Works in sync with the compressor unloading system
Supports direct compressor or remote mounting for added flexibility

Product Description

Piston Type Governor - High Temperature Applications

Features & Benefits

Piston-type construction for durability and reliable performance
Automatically adjusts air pressure in the air supply system for consistent braking
Works in sync with the compressor unloading system
Supports direct compressor or remote mounting for added flexibility

Haldex Air Brake Compressor Governor

Product Attributes

Adjustable	Yes
Cut-In Pressure	105 PSI Nominal
Cut-Out Pressure	120 PSI Nominal
Freight Class	70
Mounting Hole Diameter	0.336 in.
Port Diameter	1/8-27 in. NPT

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8481200070
Harmonized Tariff Code (HTS)	8481200070
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	36 MO, 350,000 MI=Air Governors(1). 24 MO, 200,000 MI=Air Compressors EL850(4), EL1300(5)(12), EL1600(5)(12), TYPE 292(1), TYPE 365(1). See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653040653
VMRS Code	013009070

Part Interchanges

HALDEX KN18534 Cross Reference

We have 4 alternatives for the KN18534 by HALDEX:

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
