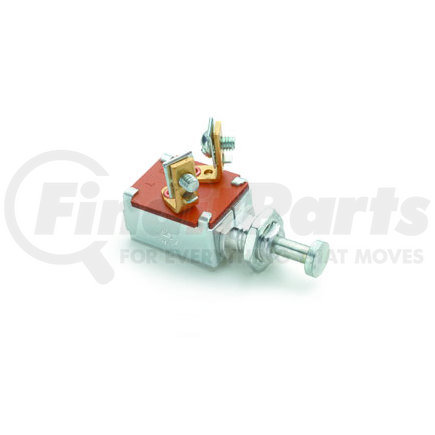

Name: Cole Hersee 9052BX 9052 - Neutral Safety and Backup Switches Series
SKU: 9052bx
Price: 10.49 USD
Availability: InStock

COLE HERSEE part description

10A at 12V DC. Normally Off. On with plunger depressed, spring return to Off.Two screw terminals. 7/16" (7.9mm) diameter mounting stem, 7/16" –20 (7.9mm) long, with two flats for mounting in double-D hole. 1/2" (12.7mm) long button-head plunger can be passed through the panel hole when installing. Replaces: Ford B9AF, C0AF, 51-A15520A, Jeep 710412, 721028, Motorcraft SW-410. SPST,

Property	Value
Description	Back-Up Lamp Switch
Additional Description	Has plunger button shaft
Circuitry	SPST
Terminals	Screw
Terminal details	two 8-32 screws
Mounting	7/16-20 UNF-2A thread 7/16 long with two flats for mounting in double D hole
Sealing	None
Rating	5A at 12V DC 3A at 24V DC
Normal position	Contacts open
Contacts	Copper
Details	Normally Open Contacts Closed when plunger is depressed spring return to Normally Open

Cole Hersee Neutral Safety And Backup Switch

The Cole Hersee neutral safety and backup switch provides versatile and reliable performance when you need it the most. It is built and tested to withstand harsh operating conditions.

Features & Benefits

Heavy duty ball and lever actuator system that’s compatible with a wide variety of applications
Provides discrete circuit control based on user and environment inputs
Circuits and indicators are designed for heavy repeated use
Ideal for use in construction, agriculture, materials handling, and transit and commercial vehicles and equipment

Cole Hersee® is highly valued in the heavy duty truck industry. It is a leading manufacturer of heavy-duty battery master switches that are widely used as OE equipment by leading heavy-duty vehicle manufacturers. These switches are essential safety components for trucks as they help prevent theft, tampering, electrical fires, and battery drain. Founded in 1924, Cole Hersee is committed to improving vehicle safety by partnering with ECCO Safety Group Australia (ESGA) to establish and implement safety standards for trucks that drive onto mining sites. Its products are also manufactured in its ISO 9001:2008-certified facility and undergo strict testing to ensure safety and reliability.
