Name: Haldex GC2024D Ddsb Disc Gold Ss
SKU: gc2024d
Price: 116.99 USD
Availability: InStock

HALDEX part description

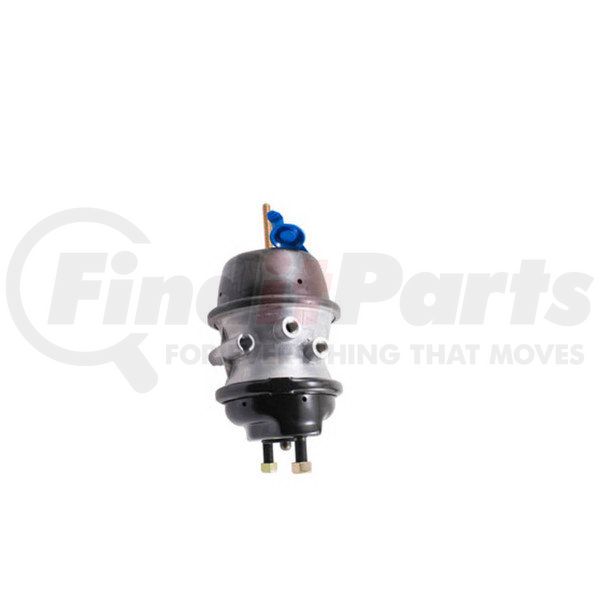

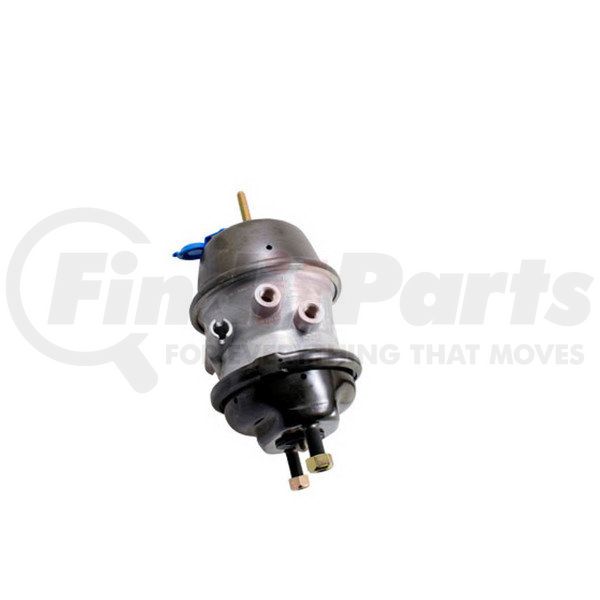

HALDEX GOLDSEAL SPRING BRAKE

2024 GoldSeal AIR DISC Actuator

Technical Specifications:

Actuator Type Size:	20/24
Stroke Type:	Standard
Available Stroke:	2.5"
Pushrod Threads:	Ball End
Weight:	16.3 LBS
A - Length from mounting bracket to end of Spring Housing:	10.18"
B - Length of Piggyback:	7.42"
C - Dimension at rolled Spring Housing flange:	7.65"
D - Dimension at Service Clampband:	6.98"
E - Stud Spacing:	4.75"
J - Pushrod Length from face of Service Housing:	.59"
K - Distance to Clevis Pin centerline from face of Service Housing:	N/A
S1 - Service Clampband position:	160°
T - Air Port position:	0°

Haldex ADB Actuator

Keep your air brake spring brake working at its peak condition by replacing any damaged or worn ADB actuator with the Haldex ADB actuator. Manufactured by a brand with over 100 years of engineering expertise, this product is designed to offer reliable performance and long-lasting service.

Features & Benefits

Made using high-quality materials for superior durability
Manufactured to meet or exceed OEM standards for maximum efficiency
Stringently tested to ensure performance and reliability
Stringently tested to ensure performance and reliability

Product Description

Brake Chamber GoldSeal 2024 Air Disc

Application Summary

Gold Seal Double Diaphragm Spring Brake for ADB 20/24(1) unit with fasteners. 1 wheel end

Features & Benefits

Made using high-quality materials for superior durability
Manufactured to meet or exceed OEM standards for maximum efficiency
Stringently tested to ensure performance and reliability
Stringently tested to ensure performance and reliability

Haldex ADB Actuator

Product Attributes

Air Port Position	0°
Bracket to End of Spring Housing Length	10.18 in.
Clevis Pin Length	N/A
Freight Class	70
Piggyback Length	7.42 in.
Service Clampband Position	160°
Service Clampband Size	6.98 in.
Service Housing to Push Rod Length	.59 in.
Spring Housing Flange Size	7.65 in.
Stud Distance	4.75 in.

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8412310080
Harmonized Tariff Code (HTS)	8412310080
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	See Haldex Aftermarket Product warranty Policy (L20221W).pdf
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653323312
VMRS Code	013004027

Part Interchanges

HALDEX GC2024D Cross Reference

We have 4 alternatives for the GC2024D by HALDEX:

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
