Name: Haldex CS41760 Camshaft
SKU: cs41760
Price: 20.49 USD
Availability: InStock

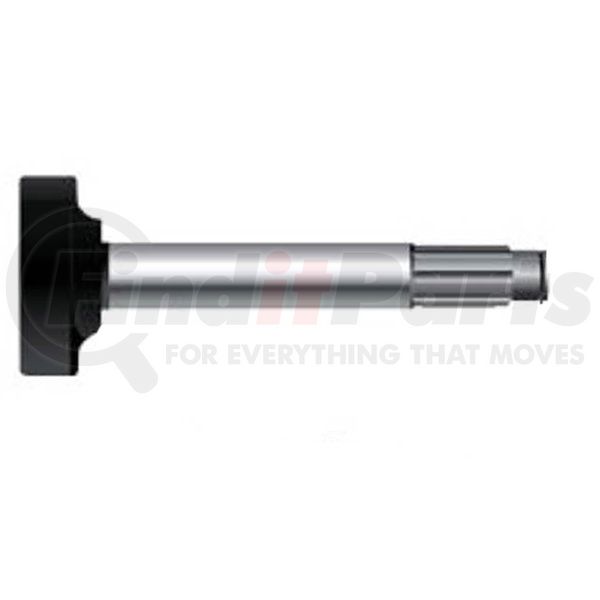

HALDEX part description

HALDEX DRIVE AXLE CAMSHAFT

Eaton with 16-1/2" & 18" Single Anchor Pin Brakes

1-1/2" Diameter - 10 Spline

Note:

Use Bushing Kit CQ67326.

Technical Specifications:

Replaces:	Eaton 70306, Navistar 385957C1
A (refer to image):	11-1/2" in.
B (refer to image):	1-21/32" in.
Position:	Left Hand
Nominal Head Dimension:	1-3/8" in.
Bushing Kit:	CQ67326

Haldex Drive Axle Camshaft

Don’t let a malfunctioning camshaft take the fun out of driving your big rig—replace it at once with the high-quality Haldex drive axle camshaft. Engineered to deliver consistently reliable performance and maximum efficiency, this camshaft is all you need to get your truck running again in no time.

Features & Benefits

Made of high-quality materials for superior durability
Built to withstand even when used under the harshest conditions
With a precise fit for fast, hassle-free installation
All Haldex camshafts are crafted to offer a longer-lasting service life

Product Description

Camshaft For Eaton with 16-1/2" & 18" Single Anchor Pin Brakes

Application Summary

Eaton with 16-1/2" & 18" Single Anchor Pin Brakes.

Features & Benefits

Made of high-quality materials for superior durability
Built to withstand even when used under the harshest conditions
With a precise fit for fast, hassle-free installation
All Haldex camshafts are crafted to offer a longer-lasting service life

Haldex Drive Axle Camshaft

Product Attributes

Spline Quantity	10
Brake Drum Diameter	16.5 in., 18 in.
Axle Type	Drive
Freight Class	70
Length	11-1/2 in.
Location	Left Hand
Nominal Head Dimension	1.375 IN
Recommended Use	Eaton® Brakes with Single Anchor Pin (SAP)
Spider Bushing Diameter	1-1/2 in.
Spider Bushing Shoulder Length	1.66 in.
Spline Diameter	1-1/2 in.

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8483103010
Harmonized Tariff Code (HTS)	8483103010
Remanufactured Part	N
Warranty Distance	100000
Warranty Distance UOM	MI
Warranty Special	12 MO, 100,000 MI, 3600 Hours See L20221W.pdf for warranty details
Warranty Time	12
Warranty Time UOM	MO
UPC	00767653076607
VMRS Code	013002029

Part Interchanges

HALDEX CS41760 Cross Reference

We have 1 alternatives for the CS41760 by HALDEX:

013-002-029
