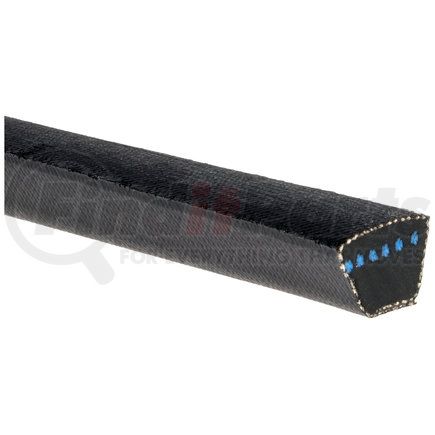

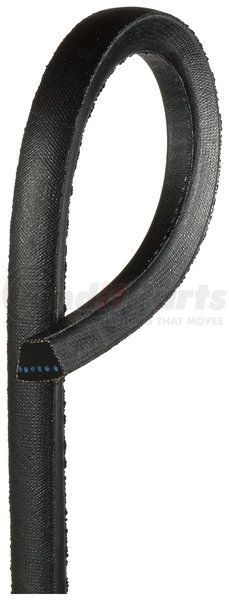

Name: Gates A76 HI-POWER II BELT
SKU: a76
Price: 15.49 USD
Availability: InStock

GATES CORPORATION part description

Application
Features Advantages	Superior performance on heavy-duty A, B, C, D and E Section V-belt drives. Composite multi-purpose construction reduces flex fatigue. Superior length stability means less tensioning and take-up during service.
Belt / Sprocket Specifications
Outside Circumference (in)	78.00
Outside Circumference (mm)	1981
Top Width (in)	.50
Top Width (mm)	13
Packaging
Product Attributes
Section	A
Weight
Weight (Lbs.)	.52

Product Description

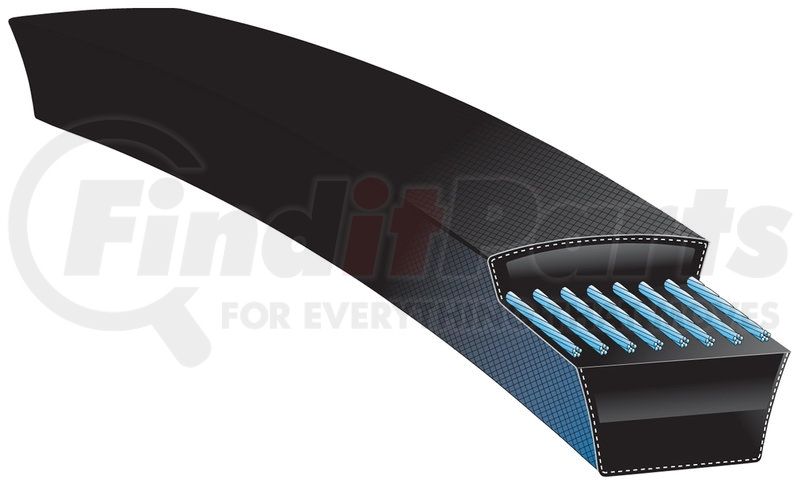

Hi-Power II Classical Section Wrapped V-Belt

Application Summary

International Harvester, 815, IH V-8 345, Rotary Air Screen Drive

Features & Benefits

Smoother running with less slip and wear for excellent belt service life and reduced pulley wear
High-quality rubber compound protects the belt against heat, ozone and sunlight
Proprietary Flex-Weave cover is a patented fabric construction, providing extended protection to the belt core from oil, contaminants and heat for longer belt life
Flex-bonded cords strongly adhere to the body of the belt, resulting in equal load distribution and absorption of bending stress, fatigue and shock loads without cord deterioration
Meets RMA oil and heat resistant standards and static conductivity requirements
Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
NOTE: Available in A, B, C, D and E cross-sections as well as Hi-Power II PowerBand V-belts

Product Attributes

Top Width	.5 in
Construction	Wrapped
Cord Material	Polyester
Cross Section Designation	A
Strand Quantity	1
Outside Circumference	78 in
Type	Classical Section Wrapped V-Belt
Belt Material	EPDM
9837	No

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4010343000
UPC	00072053017786
VMRS Code	065005003
UNSPSC	26111801

Part Interchanges

GATES CORPORATION A76 Cross Reference

We have 1 alternatives for the A76 by GATES CORPORATION:

90026076
