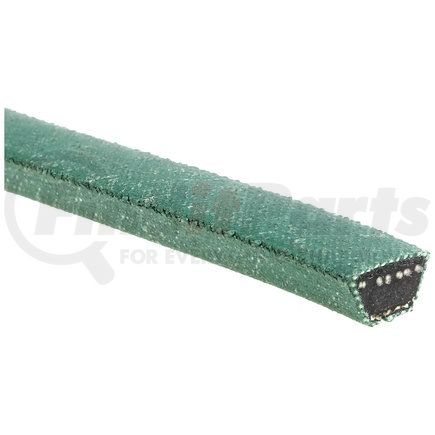

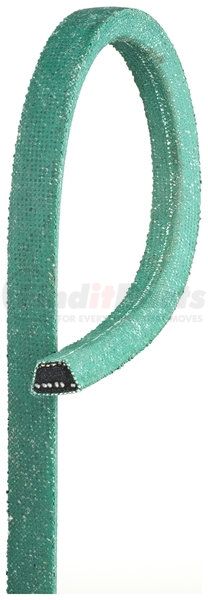

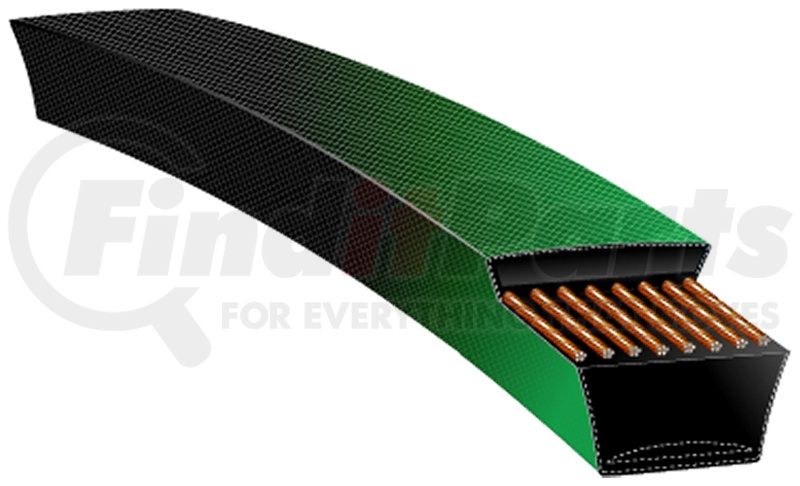

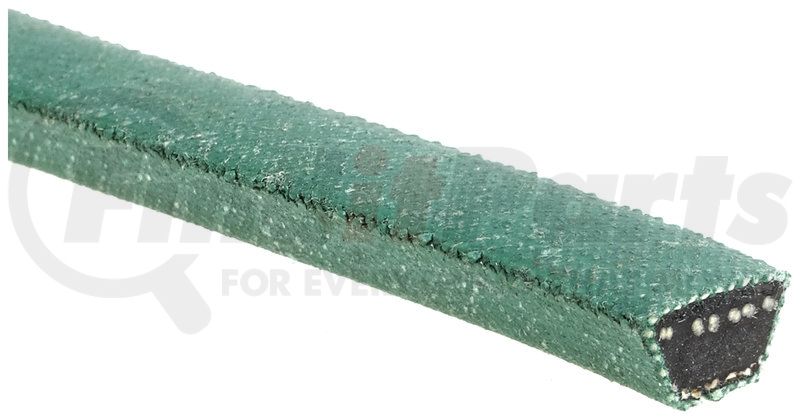

Name: Gates 6828 POWERATED V-BELT
SKU: 6828
Price: 12.49 USD
Availability: InStock

GATES CORPORATION part description

Application
Category Name Description	These green belts are an alternative to conventional light-duty belts, with high performance construction delivering more horsepower, less stretch and providing longer service life.
Features Advantages	Aramid Tensile Cords combine limited stretch with extraordinary strength and durability. Meets RMA oil and heat resistant standards. Bareback construction for smooth clutching on shock loaded, backside-idler driven equipment. PoweRated belts transmit more hp than conventional utility belts, up to 17 hp. Gives outstanding performance on drives with backside idlers. Green Flex-Weave cover resists heat, oil and cracking. Superior performance on clutching and backside idler drives. NOTE: Can be substituted for equivalent sizes of Truflex V-Belts.
Markets/Applications	PoweRated belts are suitable for outdoor power equipment, appliances and industrial applications where FHP belts are typically used.
Belt / Sprocket Specifications
Effective Length (in)	28.19
Outside Circumference (in)	28
Outside Circumference (mm)	711
Recommended Sheaves	Light-Duty Sheaves-Bored-to-Size Light-Duty Sheaves-Variable Pitch Light-Duty Sheaves-Bushed
Top Width (in)	.5
Top Width (mm)	13
Packaging
Product Attributes
Section	4L
Weight
Weight (Lbs.)	.17

Product Description

PoweRated FHP Medium Horse-Power V-Belt

Application Summary

Ace Hardware, 120-250, , Drive

Features & Benefits

Designed with distinct green color bareback construction for smooth clutching on shock loaded, backside idler-driven equipment to ensure high crack resistance
Low, aramid tensile cord positioned in a thin profile gives extreme flexibility and limited stretch with extraordinary strength and durability
Meets RMA oil and heat-resistant standards, but not for static conductivity
Temperature Range: -22 Deg. F to +140 Deg. F (-30 Deg. C to +60 Deg. C)
Note: Gates PoweRated V-belts can be substituted for equivalent sizes of FHP low horsepower Gates Truflex V-belts

Product Attributes

Top Width	.5 in
Construction	Wrapped
Cord Material	Aramid
Cross Section Designation	4L
Strand Quantity	1
Effective Length	28.19 in
Outside Circumference	28 in
Type	FHP Medium Horse-Power V-Belt
Belt Material	EPDM
Angle	36
9837	No

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	4010323000
UPC	00072053004335
VMRS Code	065005003
UNSPSC	26111801
