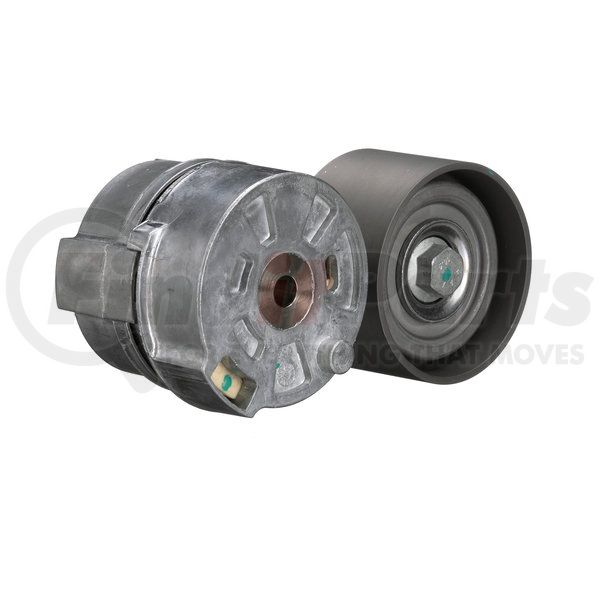

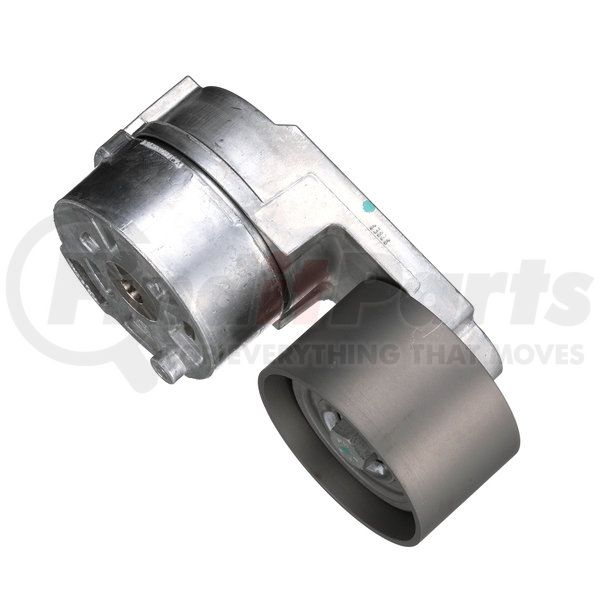

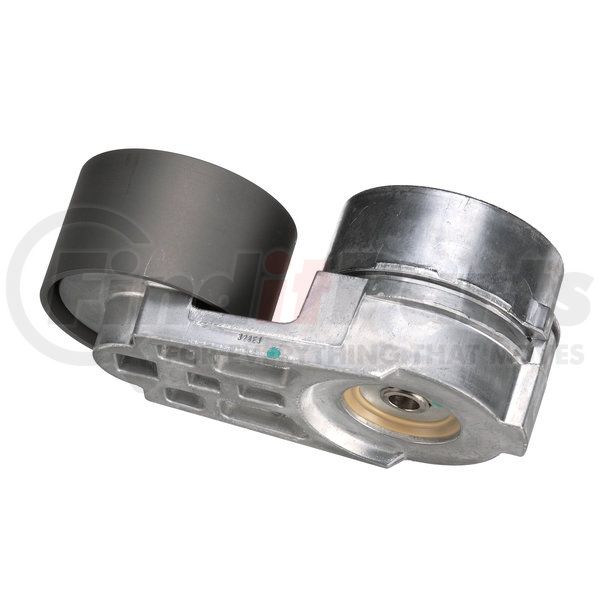

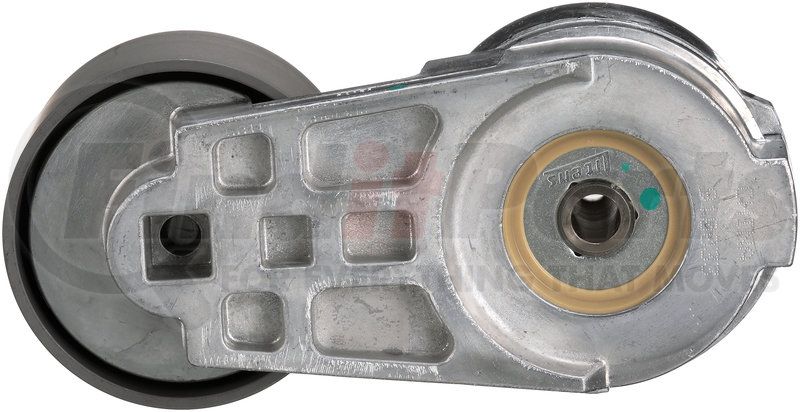

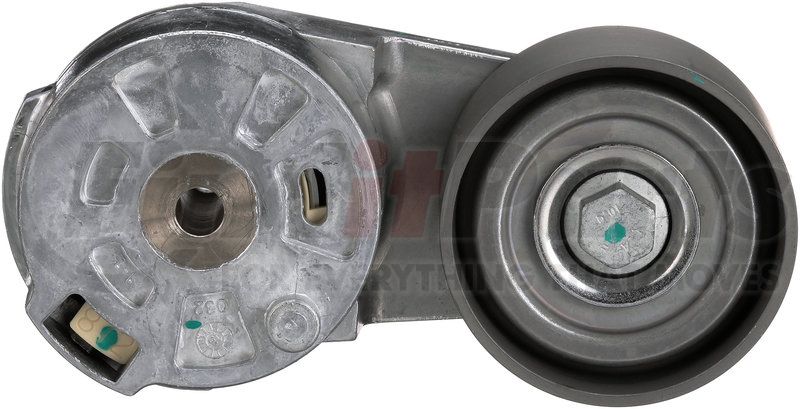

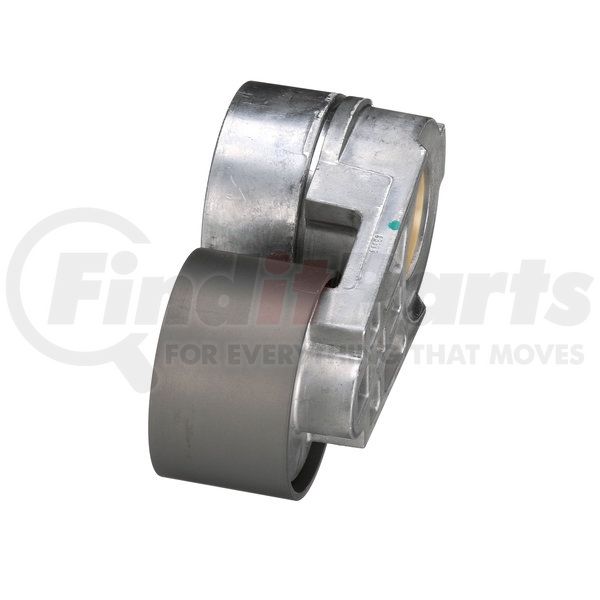

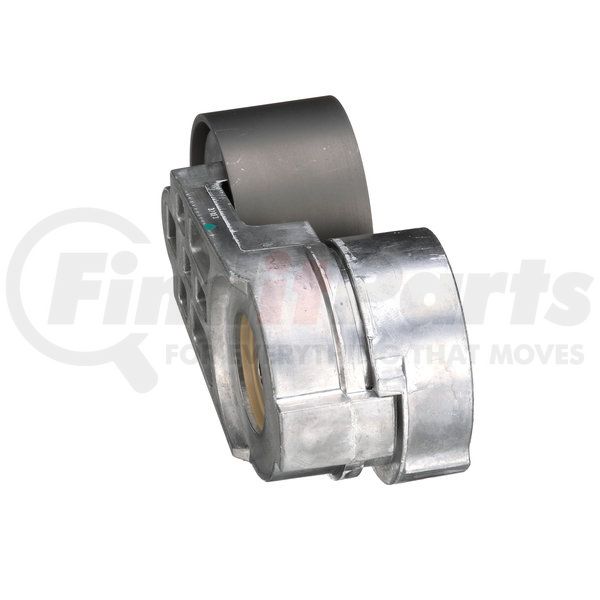

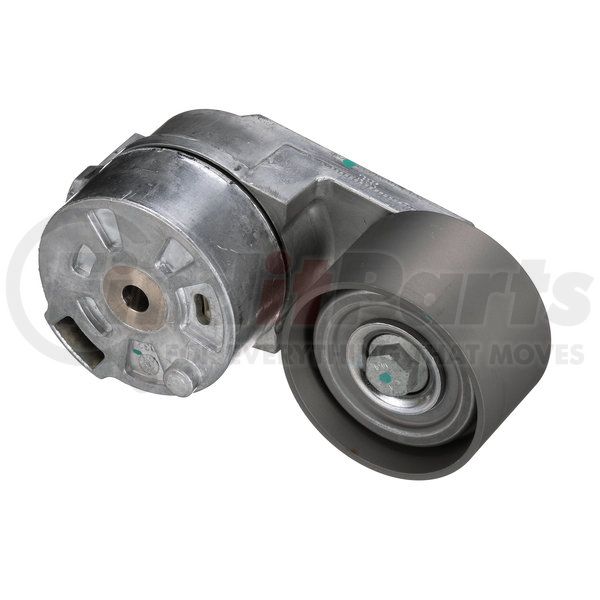

Name: Gates 38569 Drivealign Heavy-Duty Automatic Belt Tensioner - BTENS 05-06 C15 Freightliner
SKU: 38569
Price: 129.49 USD
Availability: InStock

GATES CORPORATION part description

Technical Specifications

Weight Lbs	4.5
Category Name Description	The longest lasting belt tensioners in the industry. Engineered to exceed demanding OEM requirements. In laboratory tests, under extreme peak-to-peak vibration and contamination tests, DriveAlign heavy-duty tensioners lasted up to three times longer than competitive aftermarket tensioners.
Features Advantages	Labyrinth Seal - prevents contamination of internal parts for maximum durability and service life. Patented Design - provides superior belt alignment and tension for improved drive efficiency and life. Patented Damping Mechanism - provides maximum stability, reducing vibration and increasing the life of belt, tensioner and other accessory drive components. Round Spring Wire - includes chrome-silicone torsion spring for less flex-fatigue than flat-wire designs. Machined Steel Pulley - reduces surface wear while shielding internal bearing from outside contaminants. Double Row Bearings - twin rows of bearings carry more load and last up to three times longer than two individual bearings. Optimized Components - engineered for maximum strength and durability.
Material	Steel
Width mm	32.5
Contents	Tensioner Assy., Bolt
Contact Surface	Smooth/Backside
Number of Pulleys	1
Pulley 1 Flanged	No
Bearing Bore Inside Diameter 1 mm	30
Outside Diameter mm	75
Instruction Sheet Number	98-0178 (HD Tensioners except 38522-38524, 38567, 38568)

Features & Benefits

Labyrinth Seal prevents contamination of internal parts for maximum durability and service life
Machined Steel Pulley reduces surface wear while shielding internal bearing from outside contaminants
Double Row Bearings twin rows of bearings carry more load and last up to three times longer than two individual bearings

Product Description

FleetRunner Heavy-Duty Automatic Belt Drive Tensioner

Application Summary

2007-04 Peterbilt, 379, Caterpillar C15 Diesel, Tensioner Assy. - Fan & Alt.

Features & Benefits

Optimized components engineered for maximum strength and durability
Patented design provides superior belt alignment and tension for improved drive efficiency and life
Patented labyrinth seal prevents contamination of internal parts for maximum durability and service life
Long-lasting steel pulleys with dust shields to protect internal bearings from contamination
Double row bearings carry more load and last up to 3X longer than two individual bearings
Chrome-silicone round torsion spring for less ?ex-fatigue than ?at-spring designs
Patented damping mechanism provides maximum stability, reducing vibration and increasing the life of the belt, tensioner and other accessory drive components

Product Attributes

Material	Steel
Pulley 1 Flanged	No
191	.67 IN
Width	1.81 IN
Outside Diameter	2.95 IN
Grade Type	OE Performance
Mounting Hole Quantity	1
Belt Type	V-Ribbed
Pulley Quantity	1
9836	Smooth/Backside
Contents	Tensioner Assy., Bolt

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	8708998180
UPC	00770075142232
VMRS Code	042003076
UNSPSC	26111805

Part Interchanges

GATES CORPORATION 38569 Cross Reference

We have 2 alternatives for the 38569 by GATES CORPORATION:

Fits Vehicles

Freightliner FLD120SD (2007)
Western Star 4900E (2002)
Western Star 4900 (2002)
Peterbilt 388 (2014)
Peterbilt 520 (2019-2020)
Freightliner FLD132 (2005-2007)
International 9900ix (2004-2007)
International 9900i (2004-2007)
Kenworth T880 (2016-2019)
Freightliner 114SD (2016-2017)
Freightliner FLD120 (2005-2007)
Volvo VNL (2014-2017)
Kenworth T680 (2014-2019)
Western Star 6900XD (2005-2007)
Western Star 4900EX (2002-2007)
Western Star 4900FA (2002-2007)
Western Star 4900SA (2003-2007)
Kenworth T600A (2007)
Peterbilt 386 (2014)
Peterbilt 367 (2015-2017)
Peterbilt 579 (2014-2017)
Peterbilt 387 (2004-2007)
Mack CXU (2014-2017)
Kenworth T660 (2014-2016)
Peterbilt 379 (2004-2007)
Kenworth C500 (2012)
Peterbilt 567 (2014-2020)
Peterbilt 384 (2014-2015)
Peterbilt 365 (2012, 2014-2018)
Peterbilt 320 (2009, 2014-2017)
Autocar LLC. Xpeditor (2014-2019)
Kenworth T800 (2005-2007, 2014-2019)
Kenworth W900 (2004-2007, 2014-2019)
Freightliner Cascadia (2012-2019)
Freightliner Coronado (2005-2007)
Freightliner Classic (2007)
Freightliner Century Class (2005-2007)
Freightliner Columbia (2004-2007)
International 5600i (2004, 2008)
International 9400i SBA (2004-2007)
Sterling Truck AT9500 (2004-2007)
Pierce Mfg. Inc. Velocity (2009)
Sterling Truck LT9500 (2004)
Sterling Truck L9500 (2004)
