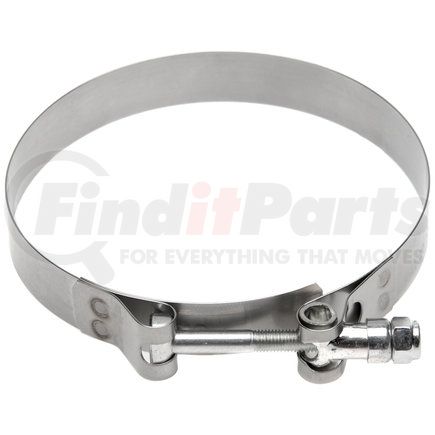

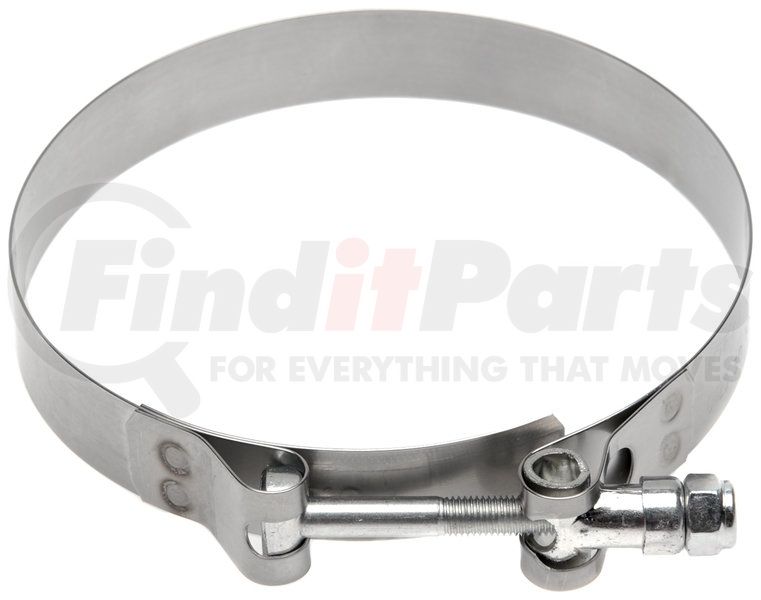

Name: Gates 32768 T-BOLT CLAMP
SKU: 32768
Price: 74.9 USD
Availability: InStock

GATES CORPORATION part description

Features Advantages: Designed for use in high-vibration and large diameter applications. Use with heavy truck, off-road equipment and industrial machinery.

Recommended For: Use in high vibration and large diameter applications. Typical applications include industrial machinery, truck air take systems, cold side charge air systems and off road equipment.

Construction

Construction: T-Bolt Standard Design

Construction: Band/Bridge: 3/4" width, 201/301 stainless steel.

Construction: Bolt: 1/4" - 28 plated steel.

Construction: Nut: 7/16" hex, nylon insert, plated steel locknut.

Construction: Trunnion: Plated Steel

Customer Pack: 1.0

Packaging: 10 each per box.

Standard Pack: 10

Stock (X) or Minimum Order Qty.: X

Product Attributes

Bolt Type: .25" - 28 Male Pipe Thread

Nut Type: .4375" (11.1mm) Hex-Head

Recommended Torque (in/lbs): 75

Type: T-Bolt (Standard)

Specifications

Band Width (in): .75

Band Width (mm): 19.1

Clamping Range Max (in): 4.0625

Clamping Range Max (mm): 103.1

Clamping Range Min (in): 3.75

Clamping Range Min (mm): 95.3

Size: 92

Weight

Weight (Lbs.): .19

Product Description

Green Stripe Heavy-Duty T-Bolt Hose Clamp

Features & Benefits

Built for use with medium & heavy-duty trucks, off-road equipment & industrial machinery
Designed to operate in high-vibration applications
Clamp has large diameter, required for use w/ large machinery

Product Attributes

Bolt Type	.25 in. - 28 Male Pipe Thread
Adjustment Type	T-Bolt (Standard)
Band Width	.75 IN
Nut Type	.4375 in. (11.1 mm) Hex-Head
3872	4.0625 IN
3873	3.75 IN
9816	75
9867	92

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	7326908688
UPC	00072053896015
VMRS Code	053008020
UNSPSC	31162900

Part Interchanges

GATES CORPORATION 32768 Cross Reference

We have 1 alternatives for the 32768 by GATES CORPORATION:

74221068
