Name: Gates 32348 CLAMP
SKU: 32348
Price: 2.75 USD
Availability: InStock

GATES CORPORATION part description

Application
Features Advantages	Tightens to 35 in./lbs. Designed to provide an extra-tight seal on silicone hose and prevent hose cover extrusion. 300 series stainless steel band, screw and housing resist corrosion. Four-piece construction and 100% mechanical interlock for added strength. Combination 5?16" hexagon, deep slot screw head makes installation easy. Tightens with screwdriver, nutdriver or socket wrench. One piece band and liner. Inner-liner band eliminates hose cover extrusion. Wide 9?16" band gives 12 1?2% more compression than 1?2" band.
Packaging
Product Attributes
Maximum Torque (in/lbs)	60
Recommended Torque (in/lbs)	30-40
Screw Type	.3125" Deep Slot Hex-Head
Type	Silicone Hose Clamp
Specifications
Band Width (in)	.5625
Clamping Range Max (in)	3.5
Clamping Range Min (in)	2.5625
Hose I.D. Max (in)	3
Hose I.D. Min (in)	2.50
Size	48
Weight
Weight (Lbs.)	.09

Product Description

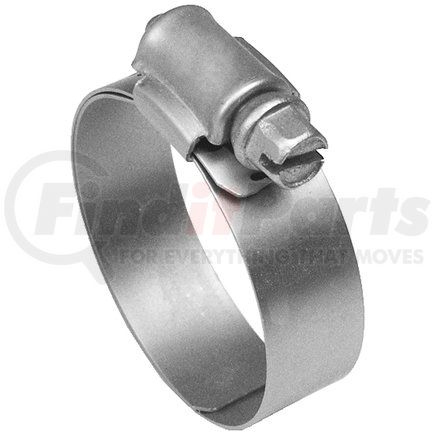

Green Stripe Silicone Hose Clamp

Features & Benefits

300 series stainless steel band, screw and housing resist corrosion
Four-piece construction and 100 percent mechanical interlock for added strength and torque capability
Combination 5/16 in. hexagon with deep slot screw head makes installation easy - tightens with a screwdriver, nut driver or socket wrench
Wide 9/16 in. band gives 12-1/2 percent more compression than 1/2 in. band
One-piece band and liner
Inner-liner band eliminates hose cover extrusion

Product Attributes

Material	Stainless Steel
Adjustment Type	Silicone Hose Clamp
Band Width	.5625 IN
Maximum Torque	60
Housing Material	Stainless Steel
3872	3.5 IN
3873	2.5625 IN
4172	2.5 IN
4438	3 IN
9816	30-40
9817	.3125 in. Deep Slot Hex-Head
9867	48

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	7326908688
UPC	00072053022094
VMRS Code	053008020
UNSPSC	31162900

Part Interchanges

GATES CORPORATION 32348 Cross Reference

We have 2 alternatives for the 32348 by GATES CORPORATION:
