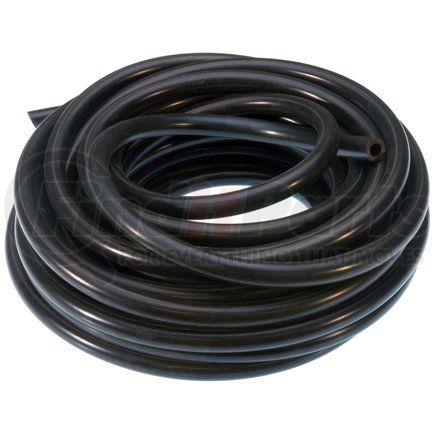

Gates 27053 - VACUUM TUBING
- Part Number
- 27053
- Manufacturer
- GATES CORPORATION
- Description
-
VACUUM TUBING
details
$3200
Package Price for 25 Units
@ $1.28 per unit
In stock
limited availability at this price!
. Learn more
GATES CORPORATION part description
| Application | |
| Features Advantages | Vacuum and kink resistant construction. Meets SAE J1037, J942b specifications. Ideal for windshield, vacuum-operated accessories and overflow applications. |
| Recommended For | Ideal for windshield washers and vacuum-operated accessories. |
| Construction | |
| Construction: Design Factor | NR |
| Construction: Tube | Type P (EPDM). Black. Heat resistant. |
| International Standards | |
| Standards | Tested to SAE J1037. |
| Notes | |
| Special Order Requirements | None. |
| Packaging | |
| Branding | None. |
| Packaging | Boxed 7/64" through 3/8": Packaged 50' per reel. 5/16" and 3/8": Packaged 25' per reel. |
| Product Attributes | |
| Type | Windshield Washer & Vacuum Hose (Non-Reinforced) |
| Specifications | |
| Centerline Length (ft) | 25 |
| Inside Diameter (in) | .375 |
| Inside Diameter 1 (in) | .375 |
| Minimum Bend Radius (in) | 3.0 |
| Minimum Bend Radius (mm) | 76 |
| Nipple Size (in) | .3125 |
| Nipple Size (mm) | 11.1 |
| Nom. I.D. (in) | 3/8 |
| Nom. I.D. (mm) | 9.5 |
| Nom. O.D. (in) | 5/8 |
| Nom. O.D. (mm) | 15.9 |
| Temperature | |
| Temperature | -40F to +257F (-40C to +125C) continuous service. |
| Weight | |
| Weight (Lbs.) | 3.6 |
| Wt. Per Ea. (Kg) | 2.30 |
| Working Pressure | |
| Suction (In. Hg) | 30.0 |
| Suction (mm Hg) | 762 |
Product Description
Windshield Washer/Vacuum Hose
Features & Benefits
- Remains flexible for easy installation and cleaning
- Resistant to the harmful conditions under the hood
- Heat, ozone, coolant and kink resistant
- Vacuum and kink resistant construction
- Convenient 6-ft. lengths in self-service, reusable, recyclable package that can be displayed on pegboard
- Meets SAE J1037, J942b specifications
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
Product Attributes
| Inside Diameter | .375 IN |
| 2035 | 25 FT |
| Type | Windshield Washer & Vacuum Hose (Non-Reinforced) |
| 9823 | .3125 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009110000 |
| UPC | 00072053410006 |
| VMRS Code | 001002026 |
| UNSPSC | 40142000 |
