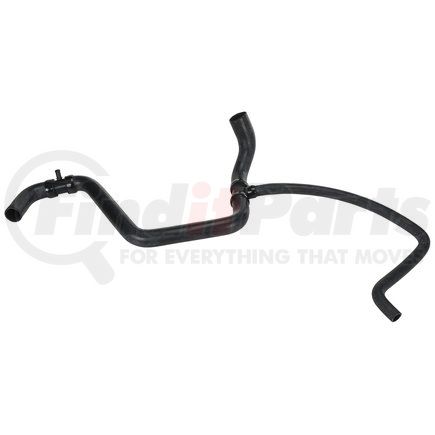

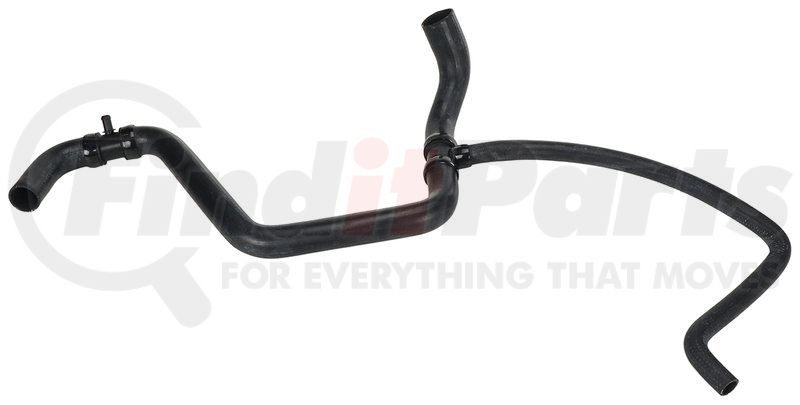

Gates 22771 - CURVED HOSE
- Part Number
- 22771
- Manufacturer
- GATES CORPORATION
- Description
-
CURVED HOSE
details
$21749
MSRP: $252.56
Save: $35.07
In stock
limited availability at this price!
. Learn more
GATES CORPORATION part description
| Application | |
| Features Advantages | CAUTION: Do not use for fuel or oil transfer applications. Factory molded to fit specific applications. Similar to OEM specifications. Recommended for upper, lower, by-pass, heater and other coolant hose applications. Heat and ozone resistant cover. Re-engineered materials resist vacuum collapse. Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications. Engineered to resist electrochemical degradation - the leading cause of hose failure. Approved for Marine Applications. |
| Packaging | |
| Product Attributes | |
| Contains Spring | No |
| Number of Branches | 1 |
| Specifications | |
| Centerline Length (in) | 49.1 |
| Inside Diameter 1 (in) | 1.75 |
| Inside Diameter 2 (in) | 2 |
| Inside Diameter 3 (in) | 1 |
| Weight | |
| Weight (Lbs.) | 3.7 |
Product Description
Premium Modular Coolant Hose
Application Summary
2005-03 Chevrolet, C4500, GM V-8 6.6 L Diesel, Lower - Eng. To Rad.
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
- Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
- Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
Product Attributes
| Material | EPDM, Plastic |
| End 1 Inside Diameter | 1.75 in |
| End 2 Inside Diameter | 2 in |
| Contains Spring | No |
| Centerline Length | 49.1 IN |
| End 3 Inside Diameter | 1 in |
| Branch Quantity | 1 |
| 9839 | Yes |
| 9845 | 0 |
| 9940 | Yes |
| 9942 | Branch, Outlet |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00072053981681 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
Part Interchanges
GATES CORPORATION 22771 Cross Reference
We have 1 alternatives for the 22771 by GATES CORPORATION:
Fits Vehicles
- Chevrolet C6500 Kodiak (2004-2007)
- Chevrolet C4500 Kodiak (2003-2006)
- GMC C4500 Topkick (2003-2006)
- GMC C7500 Topkick (2004-2007)
- GMC C6500 Topkick (2004-2007)
- GMC C5500 Topkick (2003-2006)
- Chevrolet C7500 Kodiak (2004-2007)
- Chevrolet C5500 Kodiak (2003-2006)
- GMC C8500 Topkick (2004-2007)
- Chevrolet C8500 (2004-2007)
