Name: Gates 20808 CURVED HOSE
SKU: 20808
Price: 10.49 USD
Availability: InStock

GATES CORPORATION part description

Application
Features Advantages	CAUTION: Do not use for fuel or oil transfer applications. Factory molded to fit specific applications. Similar to OEM specifications. Recommended for upper, lower, by-pass, heater and other coolant hose applications. Heat and ozone resistant cover. Re-engineered materials resist vacuum collapse. Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications. Engineered to resist electrochemical degradation - the leading cause of hose failure. Approved for Marine Applications.
Packaging
Product Attributes
Contains Spring	No
Number of Branches	N/A
Specifications
Centerline Length (in)	11.9
Inside Diameter 1 (in)	1.31
Weight
Weight (Lbs.)	.65

Product Description

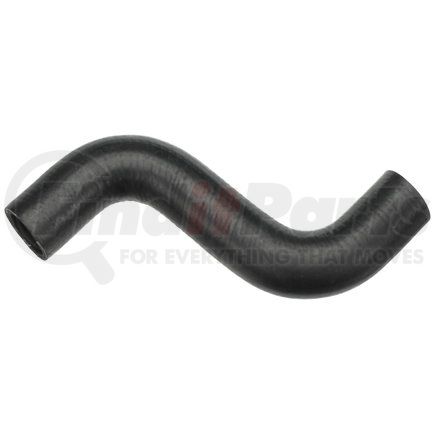

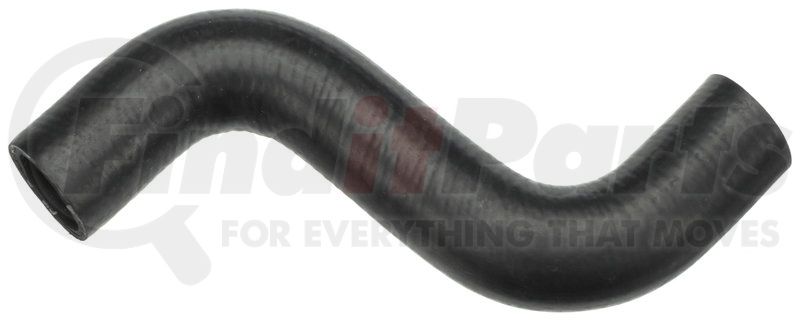

Premium Molded Coolant Hose

Application Summary

2000-1995 Chrysler, Sebring, V-6 2.5 L, Upper

Features & Benefits

Specifically-engineered materials resist collapse under vacuum
Engineered to resist electrochemical degradation, the leading cause of hose failure
Pre-shaped to fit and to ensure perfectly sealed conditions
EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover
Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances)
Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
Caution: Do not use for fuel or oil transfer applications

Product Attributes

Material	EPDM
End 1 Inside Diameter	1.31 in
End 2 Inside Diameter	1.31 in
Contains Spring	No
Centerline Length	11.9 IN
Branch Quantity	0
9839	Yes
9845	0
9940	No

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	4009310000
UPC	00072053053210
VMRS Code	042004014
UNSPSC	40142000

Part Interchanges

GATES CORPORATION 20808 Cross Reference

We have 1 alternatives for the 20808 by GATES CORPORATION:

42610808

Fits Vehicles

International Cargostar (1984-1986)
Toyota Corona (1974)
Toyota Pickup (1970-1972)
Toyota Hi-Lux (1970-1972)
Toyota Celica (1982-1986)
Toyota Cressida (1983-1984)
Toyota Corolla (1984-1985)
Mercedes-Benz 300D (1990-1993)
Dodge Avenger (1995-2000)
Chrysler Sebring (1995-2000)
Fiat X-1/9 (1974-1983)
