Name: Horton 79A9498-2 Reman Fan Clutch - Clutch DMA2S SE 21 Reman, 6/10-Pk, 127.1 OD
SKU: 79a94982
Price: 1132.99 USD
Availability: InStock

HORTON part description

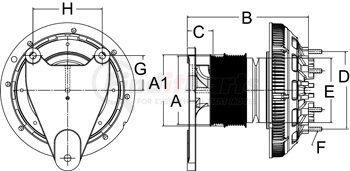

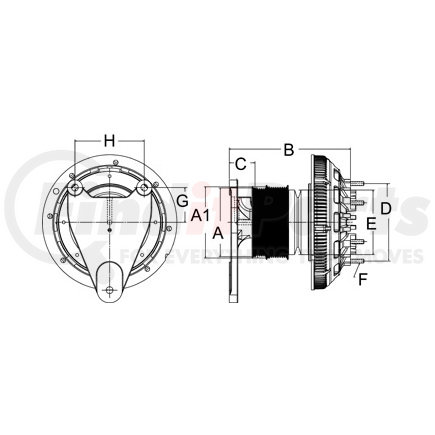

Specifications

A	5.04
A1	5.23
B	9.43
CL3	6K, 10K, 1V
C	3.09
E	2.56
F	1.07
F1	.312-18 UNC 2A
G	2.69
H	5.39
J	2.69
TMfg	MACK
Service	79A9498-2
OEM	989498
D	3.50

Product Description

DM Advantage Two-Speed Reman Fan Clutch

Application Summary

MACK

Features & Benefits

Built to the same specifications as Horton Genuine models
Easy-to-install, exact drop-in replacements
Total cost can be less than rebuilding
Two-year warranty for line-haul applications
Credit for old Horton or competitor cores
Low eddy-current speeds reduce noise, increase available horsepower, conserve fuel and minimize radiator abrasion
Higher, spring-actuated fan speeds make sure necessary cooling is delivered
Faster engine warm-ups in cold weather
Premium bearings and friction liners
High torque for turning large fans
Lower parts count for easy installation and maintenance

Two-speed fan clutch, fan clutch, engine cooling, fan drive, performance, cooling system, horsepower, performance, reman

Product Attributes

BACK PULLEY DIAMETER	5.043307087 IN
BELT CONFIGURATION	6K, 10K, 1V
Belt Groove Location	3.094488189 IN
Bolt Circle	3.5 in
CENTER OF JB TO TOP RIGHT MOUNTING HOLE	2.69488189 IN
Fan Blade Stud Length	1.066929134 IN
FAN PILOT DIAMETER	2.55984252 IN
FRONT PULLEY DIAMETER	5.229527559 IN
Heavy Duty	Yes
HORIZONTAL MOUNTING DISTANCE	5.393700787 IN
Overall Length	9.430314961 IN
Stud Thread Size	.312-18 UNC 2A IN
VERTICAL MOUNTING DISTANCE	2.69488189 IN

Additional Information

OEM's Part Number	989498
VMRS Code	042003131

Part Interchanges

HORTON 79A9498-2 Cross Reference

We have 2 alternatives for the 79A9498-2 by HORTON:
