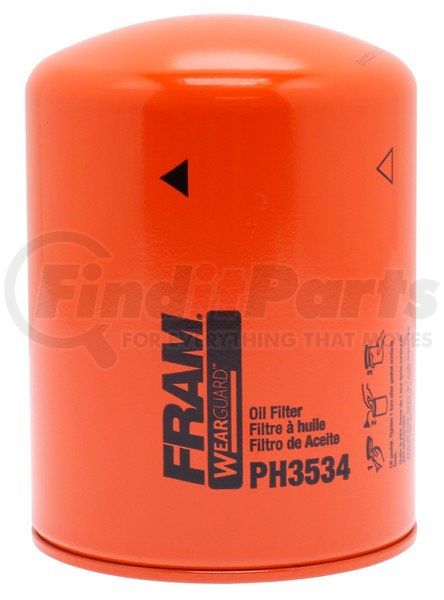

FRAM PH3534 - H.D. Oil Filter
$2449
MSRP: $26.92
Save: $2.43
In stock
limited availability at this price!
. Learn more
FRAM part description
Product Description
H.D. Oil Filter
Application Summary
ALLIS-CHALMERS, ALLIS-CHALMERS (Diesel), ALLIS-CHALMERS (Gasoline), ALUMAX, ATHEY, BANTAM, BUFFALO SPRINGFIELD, CASE/IHC, CLEVELAND, DEUTZ-ALLIS, FIAT, FIAT(Engine), FIAT-ALLIS, FORD, FORD (Diesel Industrial), FRANKLIN EQUIPMENT, GRADALL, HERCULES (Diesel), HERCULES (Gasoline), HESSTON, HOUGH, INGERSOLL RAND, JOY, KUBOTA, LOMBARDINI (Engine), MILLER ELECTRIC, NEW HOLLAND, NEW IDEA, PERKINS, PUCKETT BROTHERS, QUINCY, THOMSEN, WESTERBEKE (Marine), WINPOWER
HD Spin-on Oil Filter
Product Attributes
| Anti-Drain Back Valve | Yes |
| Burst Pressure | 240.000 PS |
| Bypass Relief Valve | Yes |
| Bypass Relief Valve Setting | 22 PS |
| Filter Media Material | Cellulose/Synthetic Blend |
| Filter Type | Spin-On Canister |
| Gasket Inside Diameter | 2.270 IN |
| Gasket Material | Base |
| Gasket Outside Diameter | 2.531 IN |
| Gasket Thickness | 0.203 IN |
| Gasket Type | Base |
| Height | 5.781 in |
| Inside Thread Diameter | 3/4-16 |
| Marine Approved | No |
| Micron Rating | 16.000 Microns |
| Non Slip Grip | No |
| Outside Diameter | 4.234 IN |
| Thread Size | Standard |
| Torque Nut | No |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8421230000 |
| Remanufactured Part | N |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100422118 |
| UNSPSC | 15121501 |
Part Interchanges
- Mopar L-48
- Donaldson P553411
- Motorcraft FL-237
- Hastings BT7316
- Hercules 40-0000-401
- White 40-0000401
- ACDelco PF1032
- Kralinator L40A
- Purolator L20022
- Wix 51411
- Big A 92411
- Baldwin B481
- Luber-finer LFP3411
- CARQUEST 85411
- Mann-Filter W940/15N
- Allis Chalmers 26540215
- Case 47128196
- Crosland 640
- EMD 9311037
- Fleetguard LF3449
- Fleetrite LFR-8682
- Frigiking 31-00218
- Gardner Denver 2012840
- General Motors 25011619
- Ford D5NN-6714-A
- International Harvester (IHC) 925229C91
- Kubota 16543-99170
- Knecht FO-371/5
- Phillips 66 P22
- Purflux LS186
- Worthington ELM-49
- NAPA 1411
- Perkins 26540214
- Hastings LF127
- Hastings W940
- ACDelco PF1803
- ACDelco PF1806
- Purolator L30022
- Purolator L34733
- Purolator L37198
- Wix 51601
- Big A 92594
- Baldwin BT238
- Baldwin BT267
- CARQUEST 85601
- CARQUEST 85714
- Allis Chalmers 4027979
- Allis Chalmers 40279796
- Allis Chalmers 451341
- Allis Chalmers 4513411
- Allis Chalmers 4513411-1
- Allis Chalmers 45134111
- Allis Chalmers 74027979
- Crosland 655
- Fleetguard LF3505
- Fleetguard LF682
- Gardner Denver 26A43
- Ford D8NN-6714-LA
- Ford D9NN-6714-CA
- Kubota 70000-15451
- Worthington ELM-60
- Worthington FLR-412
- NAPA 1714
- Perkins 26540215
- Perkins 2654350
FRAM PH3534 Cross Reference
We have 10 alternatives for the PH3534 by FRAM:
