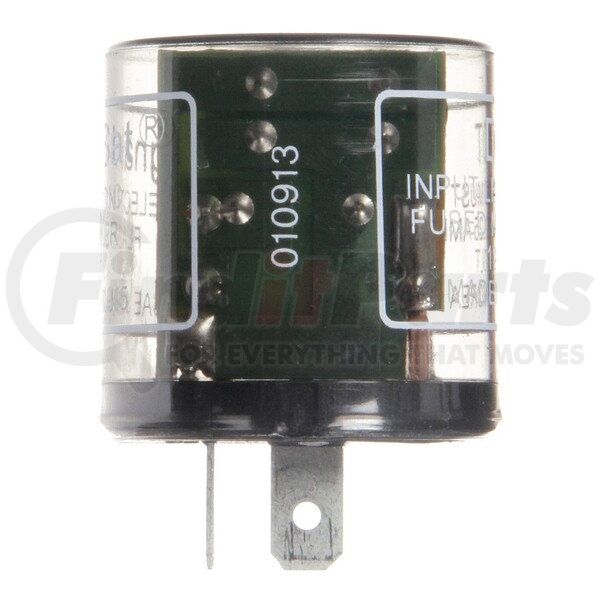

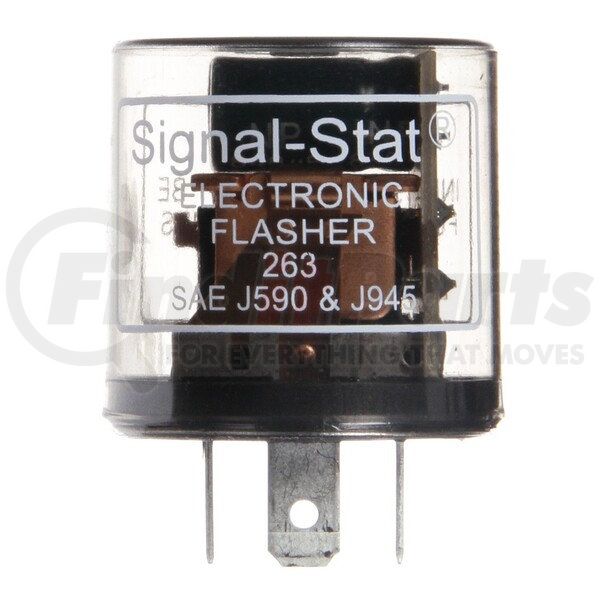

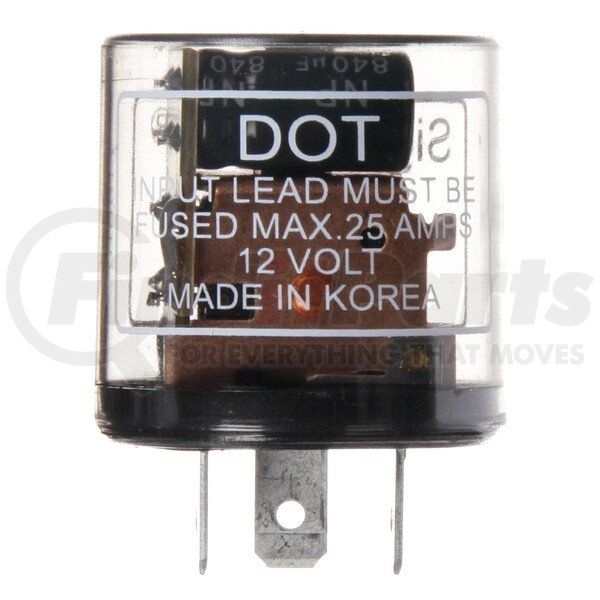

Truck-Lite 263 - Flasher Module - Signal-Stat, 10 Light Electro-Mechanical, Plastic, 60-120Fpm, 12V, 3 Blade Terminals
- Part Number
- 263
- Manufacturer
- TRUCK-LITE
- Description
-
Flasher Module - Signal-Stat, 10 Light Electro-Mechanical, Plastic, 60-120Fpm, 12V, 3 Blade Terminals
details
$2149
MSRP: $32.30
Save: $10.81
In stock
limited availability at this price!
. Learn more
TRUCK-LITE part description
Features and Benefits
- Flashes at a rate of 60 to 120 FPM, with first flash less than 1.5 seconds after startup
- Bi-polar flasher functions continuously at 13v for 36 hours with 10-32 CP lamps, 20 AMP max
- Uses standard 1/4" male blade terminals
- Features double coil relay with electronic components
- Replaces Truck-Lite 97202/03/04 series
Technical Specifications
| Compliance Family | FMVSS 108|DOT|SAE |
| Product Type | Flasher Module |
| Packaging Type | Standard |
| KIT (Y/N) | No |
| Series | Signal-Stat |
| Standards Met | J590|J945 |
| VMRS | 034-006-029 |
| Warranty | 1-Year |
| Total Height_INH | 1.37 |
| Total Height_MMT | 34.8 |
| Total Depth_INH | 1.77 |
| Total Depth_MMT | 44.96 |
| Total Width_INH | 1.37 |
| Total Width_MMT | 34.8 |
| Mount/Trim Material | Plastic |
| Voltage_VLT | 12 |
| Number of Lamps | 10 |
| Flasher Mechanism | Electro-Mechanical |
| Mount/Trim Color | Black |
| Lamp Connection | 3 Blade Terminals |
| Strobe Frequency Max_FPM | 120 |
| Strobe Frequency Min_FPM | 60 |
| Current_AMP | 20 |
| Housing Material | Plastic |
| Audible (Y/N) | No |
Truck-Lite Signal-Stat Flasher Module
The Truck-Lite’s line of Signal-Stat flasher modules is capable of producing 60 to 120 flashes per minute. It is available in varying lamp and terminal configurations to accommodate different vehicle applications.
Features & Benefits
- Generates flashes less than 13 seconds after startup
- Full ISO relay support with electronic control circuits
- Heavy duty construction that’s capable of running for 36 continuous hours
- Meets or exceeds international safety and environmental regulations
| Voltage | 12 |
| Color/Finish | Black |
| Material | Plastic |
| Connection/Plug Type | 3 Blade Terminals |
Product Description
10 Light Electro-Mechanical, 60-120fpm, Flasher Module, 12V
Features & Benefits
- Generates flashes less than 13 seconds after startup
- Full ISO relay support with electronic control circuits
- Heavy duty construction that’s capable of running for 36 continuous hours
- Meets or exceeds international safety and environmental regulations
Truck-Lite Signal-Stat Flasher Module
The Truck-Lite’s line of Signal-Stat flasher modules is capable of producing 60 to 120 flashes per minute. It is available in varying lamp and terminal configurations to accommodate different vehicle applications.
Product Attributes
| Flasher Ampere Capacity | FMVSS 108, DOT, SAE |
| Housing Material | Plastic |
| Kit | No |
| Lamp Connection | 3 Blade Terminals |
| Nsn | FMVSS 108, DOT, SAE |
| Series | Signal-Stat |
| Standards Met | J590, J945 |
| Trim Color | Black |
| Trim Material | Plastic |
| Voltage | 12 |
Part Interchanges
TRUCK-LITE 263 Cross Reference
We have 2 alternatives for the 263 by TRUCK-LITE:
Truck-Lite® is a world-renowned manufacturer of mirrors, heavy-duty forward and signal lighting, trailer harnesses, and other safety and visibility-enhancing products. Its main headquarters is located in Falconer, NY, and it maintains ten more facilities across North America and Europe. The company may have started small as a sealed lighting manufacturer in 1955. But it has grown tremendously over the years—in fact, it introduced a series of firsts including the first sealed lighting products, first LED S/T/T lamps, and first forward lighting. Being first in product development has sure paved the way for Truck-Lite to become a successful business today.
