Truck-Lite 242 - Flasher Module - Signal-Stat, 16 Light Electro-Mechanical, Plastic, 60-120Fpm, 12V, 2 Blade Terminals
- Part Number
- 242
- Manufacturer
- TRUCK-LITE
- Description
-
Flasher Module - Signal-Stat, 16 Light Electro-Mechanical, Plastic, 60-120Fpm, 12V, 2 Blade Terminals
details
$3499
MSRP: $62.97
Save: $27.98
In stock
limited availability at this price!
. Learn more
TRUCK-LITE part description
Features and Benefits
- Certification for 16 bulb capacity for hazard warning
- Flashes up to eight 32 CP blubs per side, plus pilot bulb
- 35 amp capacity at 12VDC
- Low profile, only 1-1/4" height above terminals
Technical Specifications
| Compliance Family | FMVSS 108|SAE |
| Product Type | Flasher Module |
| Packaging Type | Standard |
| KIT (Y/N) | No |
| Series | Signal-Stat |
| Standards Met | J590|J945t |
| VMRS | 034-003-020 |
| Warranty | 1-Year |

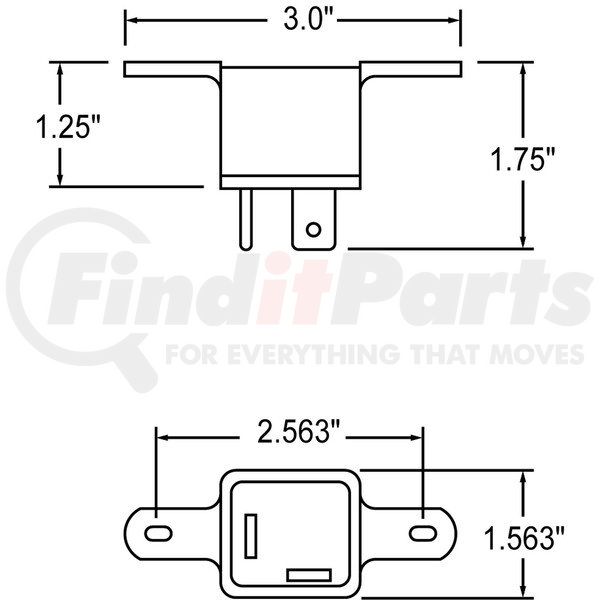

| Total Height_INH | 1.75 |
| Total Height_MMT | 44.45 |
| Total Depth_INH | 1.56 |
| Total Depth_MMT | 39.7 |
| Total Width_INH | 3 |
| Total Width_MMT | 76.2 |
| Mount/Trim Material | Plastic |
| Voltage_VLT | 12 |
| Mounting Connector Diameter_INH | 0.19 |
| Number of Lamps | 16 |
| Flasher Mechanism | Electro-Mechanical |
| Mount Type | 2 Screw |
| Mount/Trim Color | Black |
| Lamp Connection | 2 Blade Terminals |
| Strobe Frequency Max_FPM | 120 |
| Strobe Frequency Min_FPM | 60 |
| Current_AMP | 35 |
| Housing Material | Plastic |
| Audible (Y/N) | No |
Truck-Lite Signal-Stat Flasher Module
The Truck-Lite’s line of Signal-Stat flasher modules is capable of producing 60 to 120 flashes per minute. It is available in varying lamp and terminal configurations to accommodate different vehicle applications.
Features & Benefits
- Generates flashes less than 13 seconds after startup
- Full ISO relay support with electronic control circuits
- Heavy duty construction that’s capable of running for 36 continuous hours
- Meets or exceeds international safety and environmental regulations
| Voltage | 12 |
| Color/Finish | Black |
| Material | Plastic |
| Connection/Plug Type | 2 Blade Terminals |
Features & Benefits
- Generates flashes less than 13 seconds after startup
- Full ISO relay support with electronic control circuits
- Heavy duty construction that’s capable of running for 36 continuous hours
- Meets or exceeds international safety and environmental regulations
Truck-Lite Signal-Stat Flasher Module
The Truck-Lite’s line of Signal-Stat flasher modules is capable of producing 60 to 120 flashes per minute. It is available in varying lamp and terminal configurations to accommodate different vehicle applications.
TRUCK-LITE 242 Cross Reference
We have 5 alternatives for the 242 by TRUCK-LITE:
