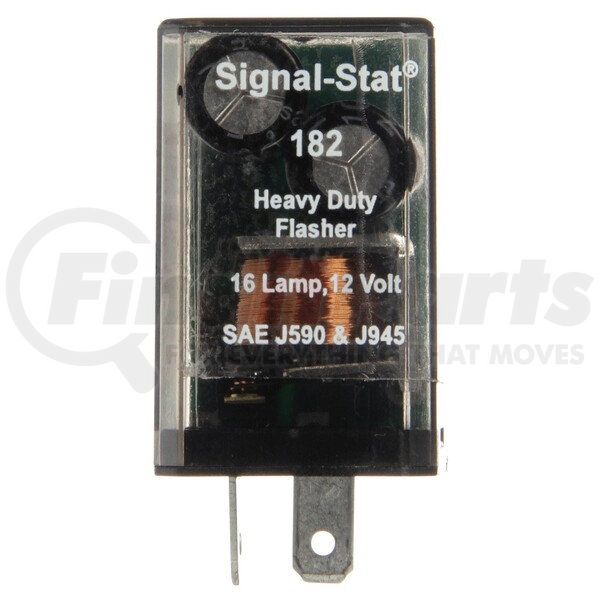

Name: Truck-Lite 182 Flasher Module - Electro-Mechanical, 2 Blade Terminal, 70-120 Fpm, 12V
SKU: 182
Price: 27.49 USD
Availability: InStock

TRUCK-LITE part description

Features and Benefits

Flashes at a rate of 70 to 120 fpm, with first flash less than 1.3 seconds after startup
Functions at 13v for 36 continuous hours with 16-32 cp lamps at 35 amp max (#182 and 183), 20-32 cp lamps at 45 amp max (#282 and 283), 10-32 cp lamps alternating at 25 amp max per side (#286)
Five available versions include 16-lamp with 2- or 3- terminal, 20-lamp with 2- or 3- terminal and alternating 10-lamp with 3- terminal
Features ISO relay with electronic control circuits
Replaces Truck-Lite 97205-97209

Technical Specifications

Compliance Family	FMVSS 108\|SAE
Product Type	Flasher Module
Packaging Type	Standard
KIT (Y/N)	No
Series	Signal-Stat
Standards Met	J590\|J945\|J1054
VMRS	034-002-013
Warranty	1-Year

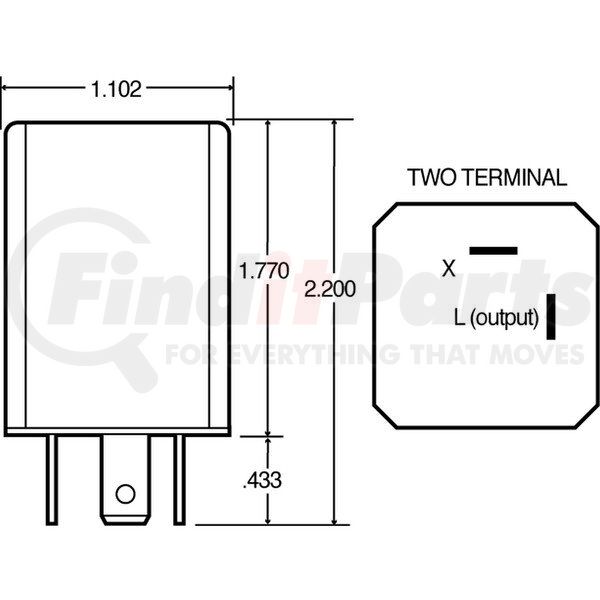

Total Height_INH	2.2
Total Height_MMT	55.88
Total Depth_INH	1.12
Total Depth_MMT	28.45
Total Width_INH	1.12
Total Width_MMT	28.45
Mount/Trim Material	Plastic
Voltage_VLT	12
Number of Lamps	16
Flasher Mechanism	Electro-Mechanical
Mount/Trim Color	Black
Lamp Connection	2 Blade Terminals
Strobe Frequency Max_FPM	120
Strobe Frequency Min_FPM	70
Current_AMP	35
Housing Material	Plastic
Audible (Y/N)	No

Voltage	12
Color/Finish	Black
Material	Plastic
Connection/Plug Type	2 Blade Terminals

Product Description

16 Light Electro-Mechanical, 70-120fpm, Flasher Module, 12V

Features & Benefits

Flashes at a rate of 70 to 120 FPM, with first flash less than 13 seconds after startup
Functions at 13v for 36 continuous hours with 16-32 cp lamps at 35 amp max (#182 and 183), 20-32 cp lamps at 45 amp max (#282 and 283), 10-32 cp lamps alternating at 25 amp max per side (#286)
Five available versions include 16-lamp with 2- or 3- terminal, 20-lamp with 2- or 3- terminal and alternating 10-lamp with 3- terminal
Features ISO relay with electronic control circuits
Replaces Truck-Lite 97205-97209

Product Attributes

Flasher Ampere Capacity	FMVSS 108, SAE
Housing Material	Plastic
Kit	No
Lamp Connection	2 Blade Terminals
Nsn	FMVSS 108, SAE
Series	Signal-Stat
Standards Met	J590, J945, J1054
Trim Color	Black
Trim Material	Plastic
Voltage	12

Part Interchanges

TRUCK-LITE 182 Cross Reference

We have 3 alternatives for the 182 by TRUCK-LITE:
