Triangle Suspension AS-8523 - Triangle Air Spr - Rolling Lobe, Triangle Bellows # 6398, ContiTech Bellows # 11 10.5A-16
- Part Number
- AS-8523
- Manufacturer
- TRIANGLE SUSPENSION SYSTEMS CO.
- Description
-
Triangle Air Spr - Rolling Lobe, Triangle Bellows # 6398, ContiTech Bellows # 11 10.5A-16
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
TRIANGLE SUSPENSION SYSTEMS CO. part description
Inventory Available
| DUB | OKC | FON | Unit Price |
|---|---|---|---|
| 65 | 72 | 37 | |
| Type | Bellows # | Top Plate # | Bottom Plate # | Bottom Plate Material | |
|---|---|---|---|---|---|
| Rolling Lobe | 11105A16 1DK28E 1T19F6 1T19FC5 6398 | Plastic |

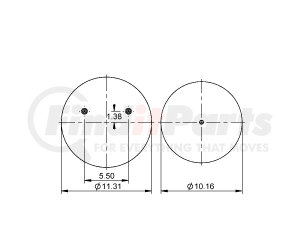

| Top Plate Dia. (in) | Design Height (in) | Min. Height (in) | Max. Height (in) |
|---|---|---|---|
| 11.31 | 10.0 | 5.1 | 19.3 |
| Max. Diameter (in) | Load (lbs) @ 80psi | Load (lbs) @ 100psi | Natural Frequency (cpm) |
| 14.1 | 8200 | 10250 | 74 |
2 Schematics
| Hendrickson Model- INTRAXX AA230T, AA250T - Trailer Suspension |
| Hendrickson Models-VANTRAXX HKA180, HKA200, HKA250 - Trailer Suspension |
Cross Reference
| OEM # - Xref # | Manufacturer |
|---|---|
| 11105A16P523 | ContiTech |
| 1DK28E8091 | Phoenix |
| 1R14171 | Goodyear |
| 1R14245 | Springride |
| 64421 | Contitech |
| AB1DK28E8091 | Phoenix |
| AS8091 | Firestone |
| C20901 | Hendrickson |
| C21784 | Hendrickson |
| FS8091 | Firestone |
| RL80910 | Road Leveler |
| S-20901 | Hendrickson |
| W013588091 | Firestone |
TRIANGLE SUSPENSION SYSTEMS CO. AS-8523 Cross Reference
We have 14 alternatives for the AS-8523 by TRIANGLE SUSPENSION SYSTEMS CO.:
Since 1919, Triangle Suspension Systems Co.® has set the gold standard for steel leaf springs. With generations of spring shop customers going back for more than 7 decades, Triangle Suspension has made a name for itself for its use of high-quality materials that are backed by ISO-compliant manufacturing processes. Their catalog covers a wide range of applications, including leaf spring assemblies, air beams, and helper springs for light, medium, and heavy duty vehicles. They also offer spring repair components and custom-engineered spring to fill almost any niche. All their products are manufactured in-house in their DuBois, PA, manufacturing facility and distributed across the United States and beyond.
