WIX FILTERS part description

Product Specifications

Part Number:	24112
UPC Number:	765809241121
Style:	Coolant Spin-On Filter
Service:	Coolant
Type:
Media:	Cellulose
Height:	5.76 (146)*
Outer Diameter Top:	3.772 (96)*
Outer Diameter Bottom:	Closed:
Thread Size:	36X2 MM

( )* denotes metric

Gasket Diameters

Number	O.D.	I.D.	Thk.
Attached	3.725 (95)*	3.175 (81)*	0.200 (5)*

Principle Application:

Cummins ISX Engine

Product Description

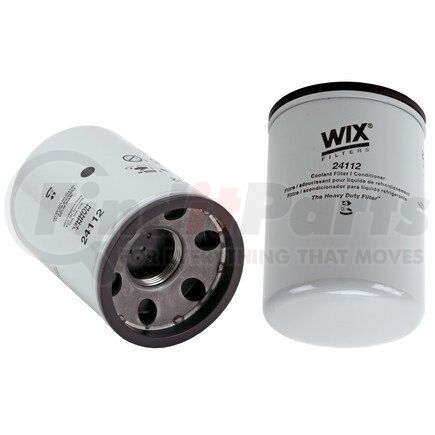

WIX Coolant Spin-On Filter

Application Summary

Cummins ISX Engine - contains DCA4 Chemical - 8 Units - For non-chemical version, use 24113

Coolant Filters SDS 24206, 24075, 24112, 24370

Product Attributes

Class	HD
Duty Type	HD
Height	5.76 in
Inner Diameter Top	Closed
Media Material	Cellulose
Outer Diameter Top	3.772 in
Style	Coolant Spin-On Filter
Thread Size	36X2 MM IN

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (HTS)	8421290065
Remanufactured Part	N
UPC	00765809241121

Part Interchanges
