WIX FILTERS part description

Product Specifications

Part Number:	51666
UPC Number:	765809516663
Style:	Cartridge Transmission Filter
Service:	Transmission
Type:	Full Flow
Media:	Cellulose
Height:	4.195 (107)*
Outer Diameter Top:	1.705 (43)*
Outer Diameter Bottom:	1.742 (44)*
Inside Diameter Top:	Closed:
Inside Diameter Bottom:	0.805 (20)*
By-Pass Valve Setting-PSI:	16
Nominal Micron Rating:	19

( )* denotes metric

Gasket Diameters

Number	O.D.	I.D.	Thk.
15596 Packed	2.005 (51)*	1.799 (46)*	0.103 (3)*

Principle Application:

Allis-Chalmers Combines, Clark, IHC

Product Description

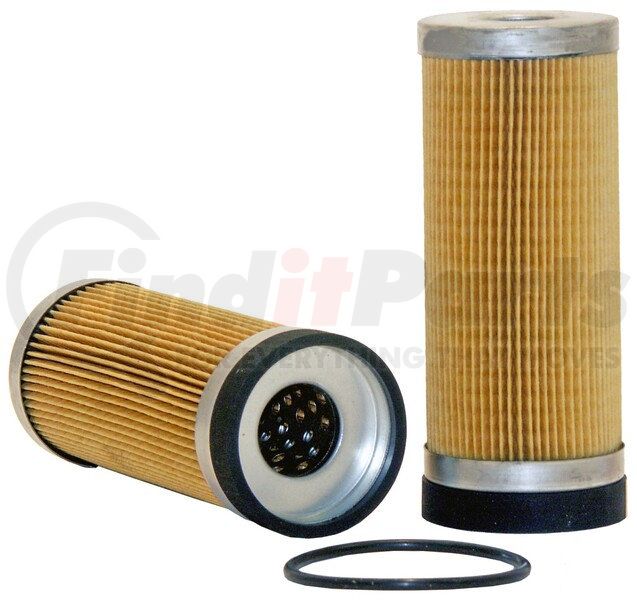

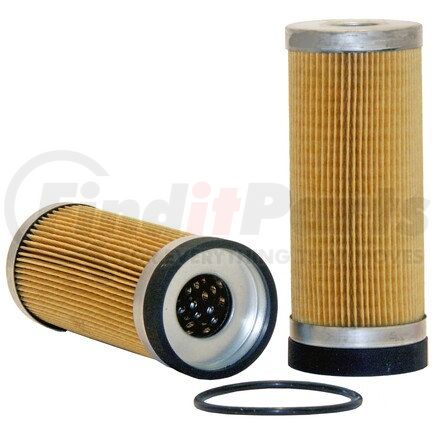

WIX Cartridge Transmission Filter

Application Summary

Allis-Chalmers Combines, Clark, IHC

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Attributes

Bypass Relief Valve Setting	16
Class	HW
Duty Type	HD
Height	4.195 in
Inner Diameter Bottom	0.805 in
Inner Diameter Top	Closed
Media Material	Cellulose
Micron	19.00 Micron
Outer Diameter Bottom	1.742 in
Outer Diameter Top	1.705 in
Style	Cartridge Transmission Filter

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (HTS)	8421230000
Remanufactured Part	N
UPC	00765809516663

Part Interchanges
