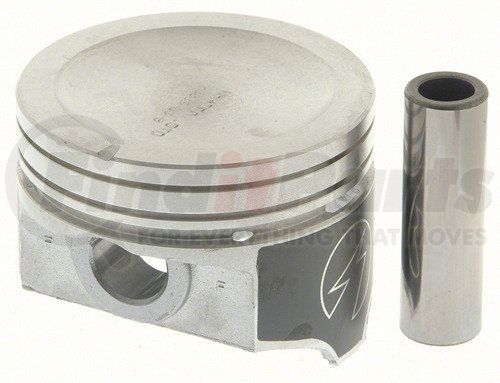

Sealed Power H562CP100MM - Cast Piston
- Part Number
- H562CP100MM
- Manufacturer
- SEALED POWER ENGINE PARTS
- Description
-
Cast Piston
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
SEALED POWER ENGINE PARTS part description
Product Description
Engine Piston Set
Application Summary
1992-1990 GM V6 189CI 3.1L Chevrolet; 1995-1990 GMT L/D V6 189CI 3.1L Chevrolet
Features & Benefits
- Helps improve cylinder sealing for less blow-by
- Retains standard ring gaps in top groove
- DUROSHIELD® skirt-coated piston
- Moly-graphite coating extends engine life
- Reduces friction for higher fuel economy
- Prevents damage from inadequate lubrication on start-up
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 1.50 MM |
| Second Compression Ring Thickness | 1.50 MM |
| Oil Ring Thickness | 4.00 MM |
| Piston Pin Outside Diameter | 0.9055 IN |
| Piston Pin Outside Diameter | 23.0 MM |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.5039 IN |
| Bore Diameter | 89.0 MM |
| Piston Material | Hypereutectic |
| 9607 | 1.442 IN |
| Dome Volume CC | Negative 011.4 |
| Head Illustration | 28 |
| Head Type | Recessed Head .105 deep x 2.913 dia.; DUROSHIELD~ skirt coated piston |
| Minimum Clearance | See Piston Fitting Information on carton label |
| Oversized Amount | 1.00 MM |
| Part Description | Engine Piston Set |
| Pin Offset (Inch) | 0.04 |
| Pin Offset (MM) | 1.016 |
| Pin Type | P |
| Weight W Pin Gram | 00533.+/- 00. |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046227804 |
Part Interchanges
- Badger P437-100
- Ertel 1287P100MM
- Clevite 9-1486100MM
- Clevite TC2758.040
- Dana Commercial Vehicle Service Parts 224-2758.040
- Dana Commercial Vehicle Service Parts TC2758.040
- Badger P437100
- Silvolite 1486100MM
- Clevite 91486100MM
- Clevite TC2758040
- Dana Commercial Vehicle Service Parts 2242758040
- Dana Commercial Vehicle Service Parts TC2758040
Fits Vehicles
- Pontiac Trans Sport (1990-1995)
- Pontiac Firebird (1990-1992)
- Oldsmobile Silhouette (1990-1994)
- Chevrolet Lumina APV (1990-1995)
- Chevrolet Camaro (1990-1992)
Sealed Power® supplies the industry with application-specific engine components, including pistons, engine bearings, piston rings, oil pumps, and lifters. These replacement parts are crafted from automotive experts' product development efforts and commitment to putting only the best on the streets and highways. The engineers behind Sealed Power products design and evaluate these engine parts to provide solutions for repowering engines due to wear. Backed by many years of industry experience and expertise, Sealed Power offers components that deliver unparalleled performance and reliability. All Sealed Power Engine Parts meet the industry's highest standards for product quality. This is what makes Sealed Power the professional's brand of choice when it comes to engine parts.
