Gates 27341 - Hose and Couplings - Barricade Fuel Injection Hose
- Part Number
- 27341
- Manufacturer
- GATES CORPORATION
- Description
-
Hose and Couplings - Barricade Fuel Injection Hose
details
$10450
Package Price for 25 Units
@ $4.18 per unit
In stock
limited availability at this price!
. Learn more
GATES CORPORATION part description
Technical Specifications
| Weight Lbs | 2.98 |
| Temperature Range | -40°F to +275°F (-40°C to +135°C) continuous, up to +302°F (+150°C) intermittent. |
| Category Name Description | Low-permeation, premium hose for use on all fuel systems, including fuel injection (MPI). Approved for use with gasoline, diesel, bio-diesel including soybean methyl ester (SME), rapeseed methyl ester (RME), palm methyl ester (PME) per ASTM D6751, E-85, methanol, ethanol, ethanol extended gasoline, gasohol fuels and 100% alcohol. Patented five-layer Greenshield barrier technology keeps fuel out of the environment while delivering peak fuel efficiency. |
| Features Advantages | Exceeds SAE J30R14T2 (except for kink resistance) as well as low-permeation requirements for CARB. Oil, heat, ozone and abrasion-resistant cover. Aramid reinforcement spiral braid for superior burst strength. Recommended for any fuel injection applications for superior service life. Thermoplastic barrier layer. |
| Type | Barricade MPI Fuel Line Hose |
| Centerline Length ft | 25 |
| Inside Diameter 1 in | .375 |
| Working Pressure psi | 225 |
| Centerline Length m | 7.62 |
| Inside Diameter 1 mm | 9.5 |
| Automotive Notes | Do not submerse in gasoline. |
Product Description
Barricade Fuel Injection Hose
Features & Benefits
- Multi-fuel compatibility
- Extremely low permeation rate

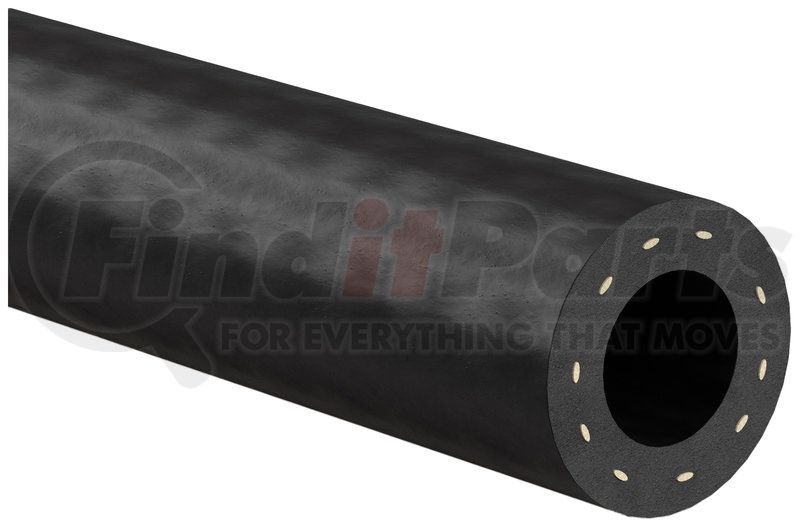

- HNBR tube with thermoplastic barrier, aramid fiber reinforcement and CPE cover
- Oil, heat, ozone, and abrasion-resistant cover
- Meets SAE 30R14 T2 (except for kink resistance), CARB and EPA non-road fuel lines
- Temperature Range: -40 Deg. F to +275 Deg. F (-40 Deg. C to +135 Deg. C) continuous, up to +302 Deg. F (+150 Deg. C) intermittent
- Note: Do not submerse in gasoline
Product Attributes
| Inside Diameter | .375 IN |
| 2035 | 25 FT |
| 2053 | 225 PS |
| Unassigned_26 | Barricade MPI Fuel Line Hose |
| Unassigned_3390 | CARB & EPA Certified |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00770075453949 |
| VMRS Code | 044001020 |
| UNSPSC | 40142000 |
Part Interchanges
The Gates Corporation® helps keep the industry running by providing top-of-the-line solutions that minimize downtime and lost production. From trucking and automotive to mining and specialty manufacturing, Gates provides best-in-class belts and power transmission solutions that maximize the production and capabilities of top companies, making them outshine the competition. Gates Corporation had its beginnings in 1911, when Charles C. Gates purchased a tire and rubber company and established a shop in Denver, Colorado. More than 100 years later, the small, family-owned company has grown into a global leader, employing over 15,000 people in its 100 facilities in 30 countries. Gates Corporation’s product portfolio includes power transmission parts, fluid power solutions, and many other products for various applications including automotive, construction, bicycles, consumer equipment, heavy-duty industrial equipment, food and beverage, and HVAC equipment.
