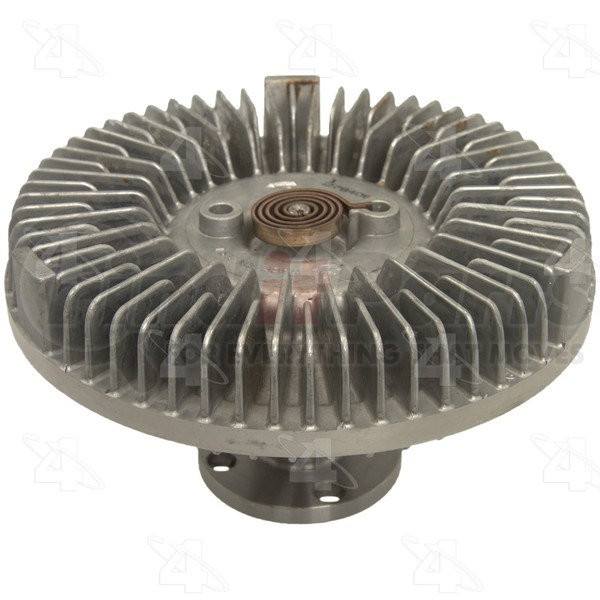

Name: Hayden 2784 Fan Clutch
SKU: 2784
Price: 55.49 USD
Availability: InStock

HAYDEN part description

Features:

Severe duty
Designed, tested and built by application
OE performance, fit and appearance
Built to meet or exceed original equipment performance

Product Description

Reverse Rotation Severe Duty Thermal Fan Clutch

Application Summary

Buick Estate Wagon (91); Roadmaster (93-91) >> Cadillac Deville (92-91); Fleetwood / Brougham (93-90) >> Chevy Astro (95-87); Caprice (90-89); Fullsize Pickup (00-88); G Series Fullsize Van / Express (00-87); P Series Van (99-96); S10 Blaze

Fan Clutch, Thermal

Product Attributes

Description	--- - Fan Clutches
Original Equipment Replacement?	--- - 'Yes'
Performance Rated?	--- - 'Yes'
Rotation	--- - REV
Drawing Type	--- - D
Clutch Type	--- - D - Severe Duty and Truck Fan Drive
Pilot Dia. IN	--- - '0.63'
Pilot Depth IN	--- - '0.625'
Pilot Depth MM	--- - '16.000'
Mount Dia. IN	--- - '2.46'
Fan Mount Height IN	--- - '1.63'
Fan Mount Height MM	--- - '41.275'
Fan Bolt Circle IN	--- - '3.250'
Fan Bolt Circle MM	--- - '82.550'
Fan Mount Dia. IN	--- - '2.52'
Fan Mount Dia. MM	--- - '63.906'
Overall Height IN	--- - '3.65625'
Bolt Thread	--- - M10 x 1.5 Hole
Bolt Quantity	--- - '4'
Type	--- - Thermal
Style	--- - Severe Duty
Overall Dia. IN	--- - '6.450'
Overall Dia. MM	--- - '163.830'
Duty Rating	--- - Severe
Meets or Exceeds OEM Specs?	--- - 'Yes'
Mount Type	--- - Flange
