Dana 6-4-9431-1X - END YOKE ASSY
$21699
MSRP: $333.42
Save: $116.43
In stock
limited availability at this price!
. Learn more
DANA part description
6494311X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
6-4-9431-1X

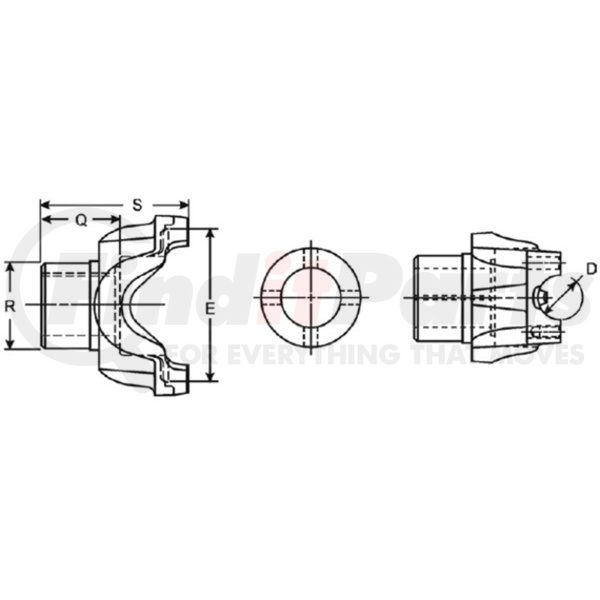

JOINT SERIES:1710
D DIMENSION:1.94
E DIMENSION:6.09
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:2.25
R HUB DIAMETER:3
S CENTERLINE TO END:4.656
SPLINE COUNT:39 I
SPLINE OD:2.024
NOTES:

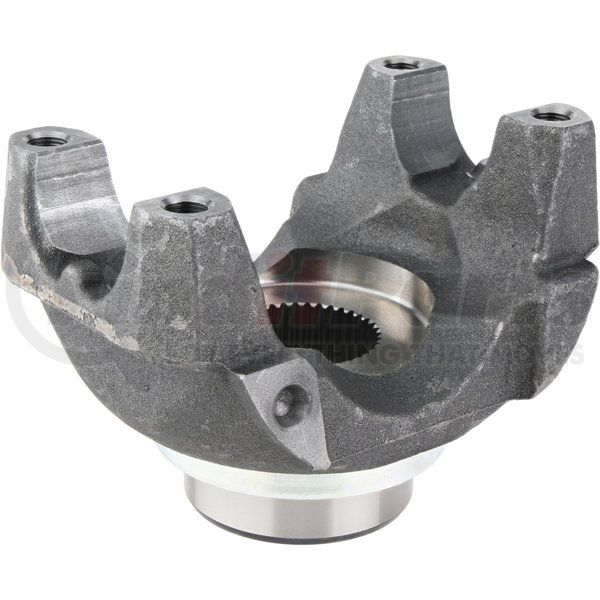

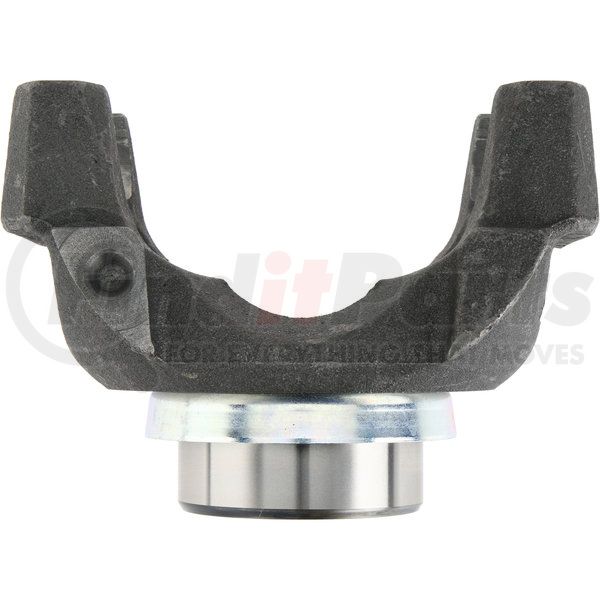

Product Description
Differential End Yoke
Product Attributes
| Assembly | Y |
| C-bore Depth | 0.280 |
| C/l To End Hub S | 4.656 |
| Hub Diameter R | 3.000 |
| Includes Slinger/Plug | Y |
| Involute Spline | Y |
| Length Thru Hole Q | 2.250 |
| Major Diameter | 2.024 |
| Material | Steel |
| Outside Yoke Dimension (in) E | 6.190 |
| Package Qty | 1 |
| Package Type | EACH |
| Part Type | Differential End Yoke |
| Series | 1710 |
| Spline Count | 39 |
| Type | Splined Hole |
| Weight | 11.6 LB |
| Yoke Bearing Dimension (in) D | 1.938 |
| Yoke Style | HR |
DANA 6-4-9431-1X Cross Reference
We have 2 alternatives for the 6-4-9431-1X by DANA:
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
