Name: National Seals 99317 Shaft Repair Sleeve
SKU: 99317
Price: 63.49 USD
Availability: InStock

FEDERAL MOGUL-NATIONAL SEALS part description

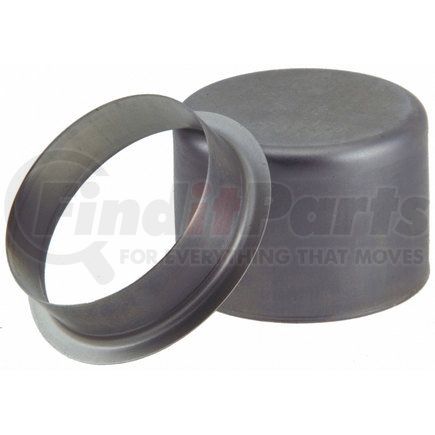

The National® Redi-Sleeve is ideal for a shaft where indications of seal wear, such as tracks or grooves, have developed.

National® has built a reputation as one of the most respected names in the industry. We have offered premium sealing solutions for more than 70 years. Our design team keeps pace with the industry and provides advanced solutions for todays vehicles.

Designed to repair damaged, grooved or worn shafts
Durable stainless steel construction for corrosion-free sealing surface that surpasses most original shaft specifications
Ideal for a shaft where indications of seal wear, such as tracks or grooves have developed
Ultra-thin construction (0.1 inch / 0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading
Easy to install with removable flange and installation tool
Installation tool reduces sleeve distortion and allows for installation without removal from the shaft

Part Specifications

NATIONAL REDI-SLEEVE SPECS

Shaft Size Minimum (Inch)	5.995
Shaft Size Minimum (MM)	152.270
Shaft Size Maximum (Inch)	6.003
Shaft Size Maximum (MM)	152.480
Width on Shaft (Inch)	1
Width on Shaft (MM)	25.400
Overall Width (Inch)	1.250
Overall Width (MM)	31.750
Flanged Outside Diameter (Inch)	6.375
Flanged Outside Diameter (MM)	161.930
Installation Depth (Inch)	1.750
Installation Depth (MM)	44.450
Material	Stainless Steel

Product Description

Redi-sleeve

Application Summary

2004-2010 Suzuki Swift+ (Rear); 1987 Hyundai Stellar (Rear); 1989-1991 Hyundai Sonata (Rear); 1996-1999 Isuzu Oasis (Rear); 1987-1989 Chrysler Conquest (Rear); 1983-1984 Chrysler E Class (Rear); 1985 Chrysler Executive Limousine (Rear); 1983-1984 Chrysler Executive Sedan (Rear); 1982-1985 Chrysler LeBaron (Rear); 1983-1985 Chrysler New Yorker (Rear); 1982-1985 Chrysler Town & Country (Rear); 1989-1990 Dodge 2000 GTX (Rear); 1984-1986 Dodge Conquest (Rear); 1982-1983 Dodge 400 (Rear); 1983-1985 Dodge 600 (Rear); 1981-1985 Dodge Aries (Rear); 1979-1982 Dodge D50 (Rear); 1984-1987 Dodge Caravan (Rear); 1978-1983 Dodge Challenger (Rear); 1974-1992 Dodge Colt (Rear); 1984-1987 Dodge Mini Ram (Rear); 1983-1986 Dodge Power Ram 50 (Rear); 1987-1989 Dodge Raider (Rear); 1983-1992 Dodge Ram 50 (Rear); 1991-1992 Eagle 2000 GTX (Rear); 1989-1991 Eagle Vista (Rear); 1989-1992 Eagle Summit (Rear); 1990-1992 Eagle Talon (Rear); 1984-1986 Plymouth Conquest (Rear); 1990-1992 Plymouth Laser (Rear); 1984-1987 Plymouth Voyager (Rear); 1979-1982 Plymouth Arrow Pickup (Rear); 1978-1992 Plymouth Colt (Rear); 1976-1980 Plymouth Arrow (Rear); 1983-1985 Plymouth Caravelle (Rear); 1981-1985 Plymouth Reliant (Rear); 1978-1983 Plymouth Sapporo (Rear); 2011-2015 Chevrolet Cruze (Rear); 2012-2018 Chevrolet Sonic (Rear); 2008-2011 Chevrolet Aveo (Rear); 2016 Chevrolet Cruze Limited (Rear); 2016-2019 Chevrolet Malibu (Rear); 2008-2011 Chevrolet Aveo5 (Rear); 1988-1991 Pontiac Optima (Rear); 2009 Pontiac G3 Wave (Rear); 2008 Pontiac Wave (Rear); 1988-1993 Pontiac LeMans (Rear); 2009-2010 Pontiac G3 (Rear); 2004-2007 Saturn Vue (Rear); 2008-2009 Saturn Astra (Rear); 2010-2013 Acura ZDX (Rear); 1997-2005 Acura EL (Rear); 2014-2019 Acura RLX (Rear); 2015-2019 Acura TLX (Rear); 2010-2014 Acura TSX (Rear); 2013-2018 Acura RDX (Rear); 1997-1999 Acura CL (Rear); 1986-2001 Acura Integra (Rear); 1986-1990 Acura Legend (Rear); 2001-2019 Acura MDX ...

Features & Benefits

Designed to repair damaged, grooved or worn shafts
Durable stainless steel construction for corrosion-free sealing surface that surpasses most original shaft specifications
Ideal for a shaft where indications of seal wear, such as tracks or grooves have developed
Ultra-thin construction (0.01/0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading
Easy to install with removable flange and installation tool
Installation tool reduces sleeve distortion and allows for installation without removal from the shaft

Product Attributes

Flanged Outside Diameter (inch)	3.543 IN
Flanged Outside Diameter (mm)	89.990 MM
Installation Depth (inch)	1.378 IN
Installation Depth (mm)	35.000 MM
Material	Stainless Steel
Overall Width (inch)	0.590 IN
Overall Width (mm)	14.990 MM
Part Description	Redi-Sleeve
Product Description	Repair Sleeve
Shaft Size (inch)	3.150 IN
Shaft Size (mm)	80.000 MM
Shaft Size Maximum (inch)	3.153 IN
Shaft Size Maximum (mm)	79.910 MM
Shaft Size Minimum (inch)	3.146 IN
Shaft Size Minimum (mm)	80.090 MM
Unit of Dimension	Inch
Width On Shaft (inch)	0.433 IN
Width On Shaft (mm)	11.000 MM

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	7307290090
Harmonized Tariff Code (HTS)	7307290090
UPC	00614046974142

Part Interchanges

Fits Vehicles

Pontiac LeMans (1988-1993)
Plymouth Voyager (1984-1987)
Plymouth Sapporo (1978-1983)
Plymouth Reliant (1981-1985)
Plymouth Laser (1990-1992)
Plymouth Conquest (1984-1986)
Plymouth Arrow Pickup (1979-1982)
Plymouth Arrow (1976-1980)
Eagle Talon (1990-1992)
Eagle Summit (1989-1990, 1992)
Dodge Ram 50 (1983-1992)
Dodge Raider (1987-1989)
Dodge Power Ram 50 (1983-1986)
Dodge Mini Ram (1984-1987)
Dodge D50 (1979-1982)
Dodge Conquest (1984-1986)
Dodge Challenger (1978-1983)
Dodge Caravan (1984-1987)
Dodge Aries (1981-1985)
Dodge 600 (1983-1985)
Dodge 400 (1982-1983)
Chrysler Town & Country (1982-1985)
Chrysler New Yorker (1983-1985)
Chrysler LeBaron (1982-1985)
Chrysler Executive Sedan (1983-1984)
Chrysler Executive Limousine (1985)
Chrysler E Class (1983-1984)
Chrysler Conquest (1987-1989)
Isuzu Oasis (1996-1999)
Hyundai Sonata (1989-1991)
Honda Passport (2019)
Chevrolet Malibu (2016-2019)
Chevrolet Cruze Limited (2016)
Acura TLX (2015-2019)
Acura RLX (2014-2019)
Acura RDX (2013-2018)
Pontiac G3 Wave (2009)
Honda Crosstour (2012-2015)
Chevrolet Sonic (2012-2018)
Pontiac Wave (2008)
Chevrolet Cruze (2011-2015)
Acura ZDX (2010-2013)
Honda Accord Crosstour (2010-2011)
Acura TSX (2010-2014)
Pontiac G3 (2009-2010)
Chevrolet Aveo5 (2008-2011)
Saturn Astra (2008-2009)
Chevrolet Aveo (2008-2011)
Suzuki Swift+ (2004-2010)
Acura TL (2007-2014)
Honda Ridgeline (2006-2014, 2017-2019)
Asuna SE (1993)
Asuna GT (1993)
Acura RL (2005-2012)
Saturn Vue (2004-2007)
Mazda B2600 (1987-1988)
Pontiac Optima (1988-1991)
Plymouth Colt (1978-1980, 1984-1992)
Plymouth Caravelle (1983-1985)
Nissan 620 Pickup (1972-1974)
Nissan 521 Pickup (1969-1972)
Nissan 240Z (1970-1973)
Dodge Colt (1974-1980, 1984-1992)
Hyundai Stellar (1987)
Eagle Vista (1989-1991)
Eagle 2000 GTX (1991-1992)
Dodge 2000 GTX (1989-1990)
Acura EL (1997-2005)
Nissan Maxima (1982-1984)
Nissan 710 (1974-1977)
Nissan Van (1987-1988)
Nissan Axxess (1990-1995)
Nissan 310 (1982)
Nissan 720 (1980-1986)
Nissan 620 (1975-1979)
Mitsubishi Expo LRV (1992)
Mitsubishi Expo (1992)
Mitsubishi Eclipse (1990-1992)
Mitsubishi Mirage (1989, 1991-1992)
Mitsubishi Van (1987-1990)
Mitsubishi Galant (1985-1987, 1989-1992)
Mitsubishi Tredia (1983-1988)
Mitsubishi Starion (1983-1989)
Mitsubishi Montero (1983-1989)
Mitsubishi Mighty Max (1983-1992)
Mitsubishi Cordia (1983-1988)
Nissan Stanza (1990-1992)
Nissan Sentra (1982-1988)
Nissan Pulsar NX (1983-1988)
Nissan Pulsar (1983)
Nissan Pickup (1995-1997)
Nissan Pathfinder (1987-1988)
Nissan D21 (1986-1994)
Nissan Altima (1993-2001)
Nissan 810 (1977-1981)
Nissan 610 (1973-1976)
Nissan 510 (1968-1973, 1978-1981)
Nissan 280ZX (1979-1983)
Nissan 280Z (1975-1978)
Nissan 260Z (1974-1975)
Nissan 240SX (1989-1998)
Nissan 200SX (1977-1983)
Sterling 827 (1989-1991)
Sterling 825 (1987-1988)
Honda Wagovan (1984, 1986-1987)
Honda Prelude (1983-2001)
Honda Pilot (2003-2019)
Honda Odyssey (1995-2019)
Honda CRX (1988-1991)
Honda CR-V (1997-2001)
Honda Civic del Sol (1993-1997)
Honda Civic (1984-2005)
Honda Accord (1984-2017)
Acura MDX (2001-2019)
Acura Legend (1986-1990)
Acura Integra (1986-2001)
Acura CL (1997-1999)

The National Seals® is a proud designer and supplier of wheel bearings and oil seals with a focus on quality, safety, and continuous improvement. The key to its success may be attributed to its hardworking and dedicated team of engineers who keep pace with the industry to provide premium wheel end solutions for light and commercial vehicle applications. Federal-Mogul acquired the National Seal Division of the National Motor Bearing Company only in 1942. But the brand National Seals has already cemented itself as one of the most respected names in the industry. Over the years, it has remained fully committed to providing only the highest quality seals and bearings that meet or exceed OE specifications.
