Gates TCKWP304 - Engine Timing Belt Kit with Water Pump for SUBARU
- Part Number
- TCKWP304
- Manufacturer
- GATES CORPORATION
- Description
-
Engine Timing Belt Kit with Water Pump for SUBARU
details
$25399
MSRP: $436.77
Save: $182.78
In stock
limited availability at this price!
. Learn more
GATES CORPORATION part description
Technical Specifications
| Part Number | TCKWP304 |
| Application Summary | 2005-1999 Subaru, Forester, 4-Cyl. 2.5 L, Timing Component Kit |
| Belt Material | HSN (Highly Saturated Nitrile) |
| Belt Tensioner Included | Yes |
| Belt Tooth Style | Modified Curvilinear (III) |
| Belt Top Color | Black |
| Bolt Included | No |

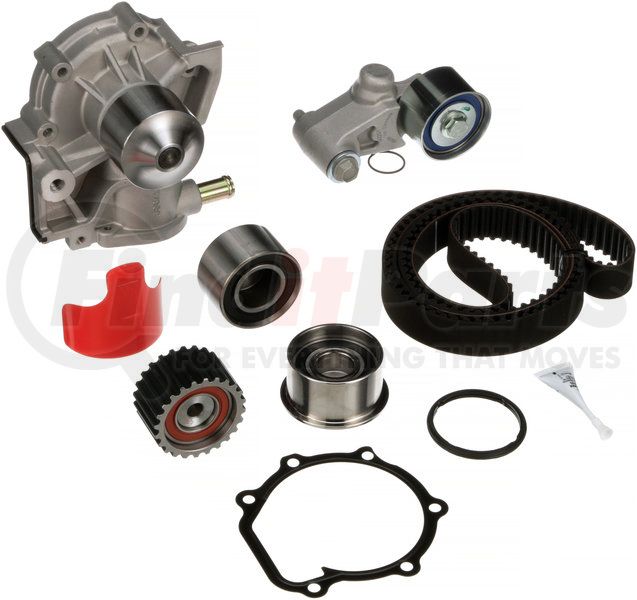

| Contents | Belt, OE Improved Hyd. Tensioner, 3 Idlers, Water Pump, Install. Tool, Loctite, Metal Gasket, O-Ring |
| Gasket or Seal Included | Yes |
| Idler Pulley Included | Yes |
| Includes Installation Tool | Yes |
| Instruction Sheet Number | 0098-1654 |
| Instructions Included | Yes |
| Marketing Description | Gates Timing Belt Component Kits with Water Pump offer customers the best and most complete repair solution by including the same OE components as our TCKs - timing belts, pulleys and tensioners as well as a water pump. Timing belt driven water pumps should always be replaced when the timing belt is replaced. Don't take chances. With Gates TCKWPs you can avoid returns by replacing all critical system components at the same time.
Gates - Driven By Possibility |
| Number of Belts Included | 1 |
| Number of Bolts | 0 |
| Number of Components | 6 |
| Number of Gaskets | 1 |
| Number of Idlers | 3 |
| Number of Seals | 1 |
| Number of Springs | 0 |
| Number of Teeth on Belt | 223 |
| Number of Tensioners | 1 |
| Number of Timing Belts | 1 |
| Number of Water Pumps | 1 |
| OE Component Comparison Rating | OE Improved |
| Product Description - Invoice | Timing Component Kit W/Water Pump |
| Product Description - Long | Timing Belt Component Kit W/Water Pump |
| Product Description - Short | Kit |
| Spring Included | No |
| Timing Belt Included | Yes |
Product Description
PowerGrip Premium Timing Component Kit with Water Pump (TCKWP)
Application Summary
2005-1999 Subaru, Forester, 4-Cyl. 2.5 L, Timing Component Kit
Features & Benefits
- Total solution for any application: Includes belts, idler(s), tensioners, tensioner springs, water pump, supporting hardware, detailed installation instructions and Technical Service Bulletins for troublesome applications
- Water pumps are designed and built for long lasting, efficient cooling
- Hydraulic tensioners included, where needed
- Everything you need to do the job right, all in one box
- Gates warranty matches the original manufacturer's timing belt replacement intervals - not just for parts - but also for labor and other associated costs
Product Attributes
| Contents | Belt, OE Improved Hyd. Tensioner, 3 Idlers, Water Pump, Install. Tool, Loctite, Metal Gasket, O-Ring |
| Idler Pulley Included | Yes |
| Instruction Sheet Number | 0098-1654 |
| Number of Components | 6 |
| Timing Belt Included | Yes |
| Unassigned_1039 | Yes |
| Unassigned_1043 | Hydraulic |
| Unassigned_1119 | Black |
| Unassigned_2701 | Modified Curvilinear (III) |
| Unassigned_3390 | OE Improved |
| Unassigned_3584 | 1 |
| Unassigned_3599 | 1 |
| Unassigned_4026 | HSN, Fiberglass Cord |
| Unassigned_4040 | No |
| Unassigned_4358 | Yes |
| Unassigned_4786 | 223 |
| Unassigned_4838 | No |
| Unassigned_4839 | 0 |
| Unassigned_540 | Yes |
| Unassigned_6660 | Yes |
| Unassigned_672 | 0 |
| Unassigned_8893 | Yes |
| Unassigned_925 | 1.063 |
| Unassigned_9825 | 3 |
| Unassigned_9826 | 1 |
| Unassigned_9827 | 1 |
| Unassigned_9841 | 1 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8413309090 |
| MSDS Sheet Number | 1330255 |
| UPC | 00770075407416 |
| VMRS Code | 045008153 |
| UNSPSC | 26111811 |
Part Interchanges
Fits Vehicles
- Saab 9-2X (2005-2006)
- Subaru Outback (2000-2005)
- Subaru Impreza (1999-2005)
- Subaru Forester (1999-2005)
