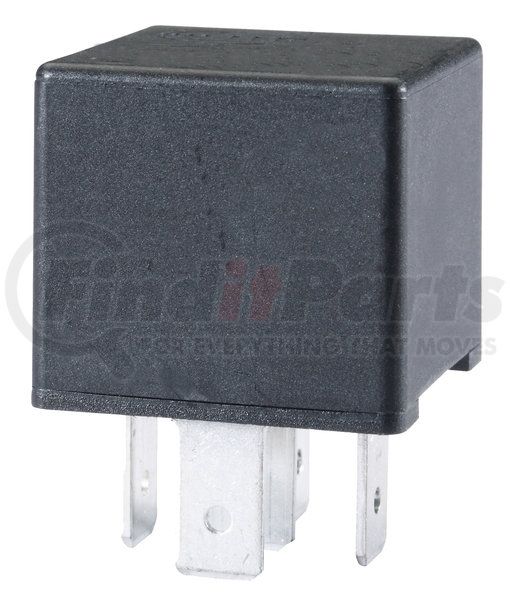

HELLA USA part description
Features:
- 12 Volt
- SPST / Form A
- 40 Amp Continuous
- Dust Cover
| Nominal Voltage | 12V |
| Rated Continuous Load | N/O 40A at 85° C |
| Ambient Temperature | -40° C...+85° C |
| Contact Form | 1 Form A / SPST N/O |
| Contact Material | AgSnO2 |
| Operating / Drop out Voltage | ≤ 8.0V / ≥1.0V |
| Max. Coil Voltage | 20V |
| Coil Resistance | 85 Ohm ± 10% |
| Suppression | None |
| Mechanical Cycles | 10,000,000 |
| Operating / Releasing Time | ≤ 10 ms / ≤ 5 ms |
| Dielectric Strength | ≥ 1,000 VDC |
| Max. Inrush Load | 150A |
| Resistive Load / Switching Cycles | 40A, 100,000 cycles |
| Inductive Load / Switching Cycles | 30A, 100,000 cycles |
| Lamp Load (capacitive) / Switching Cycles | 30A 100,000 cycles |
| Vibration | 20 - 200HZ, 5 g, no contact openings 10µs |
| Mechanical Shock | Min. 10 g. 11 ms; no contact openings 10µs |
| IP Rating | IP54 DIN IEC 60 529 |

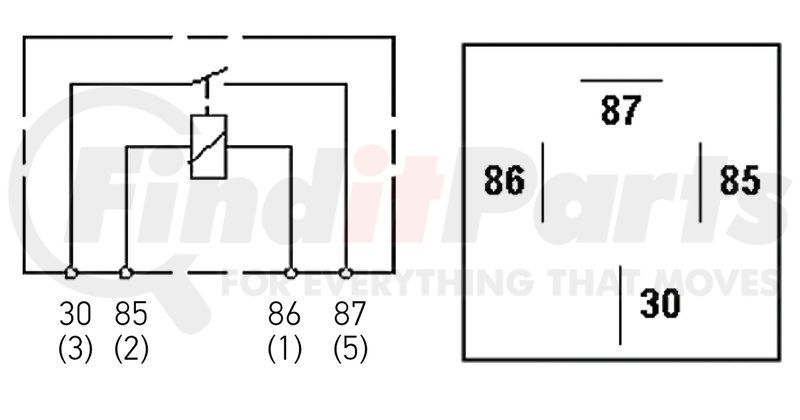

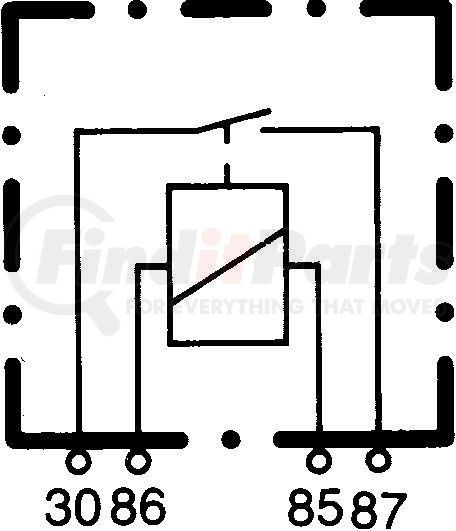

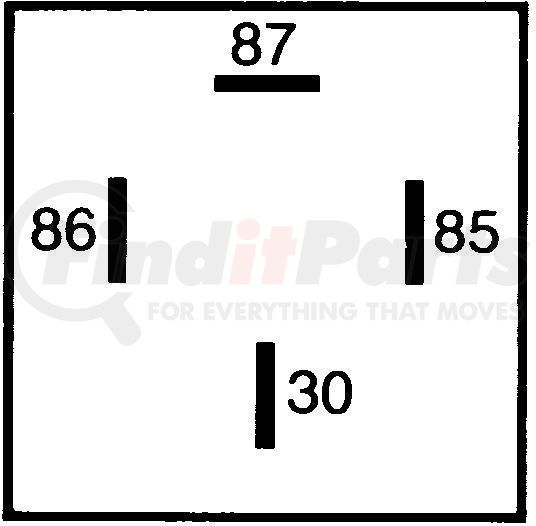

| Terminals | 85, 86: ISO 8092 6.3 x 0.8, CuZn, gal Sn 30, 87: ISO 8092 6.3 x 0.8, CuZn |
Product Attributes
| Assy./disassy. By Qualified Personnel Required! | . |
| Capacitive Load [a] | 5 |
| Combi Switch Function | Normally Open Contact |
| Inductive Load [a] | 15 |
| Number of Pins | 4 |
| Ohmic Load [a] | 40 |
| Rated Current [a] | 40 |
| Temperature Range From [°c] | -40 |
| Temperature Range To [°c] | 125 |
| Voltage [V] | 12 |
| Weight [g] | 24 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8536410050 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 04082300278941 |
