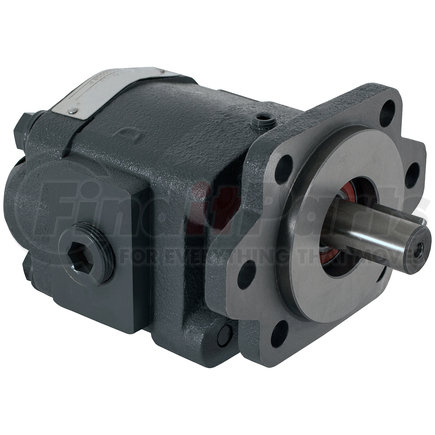

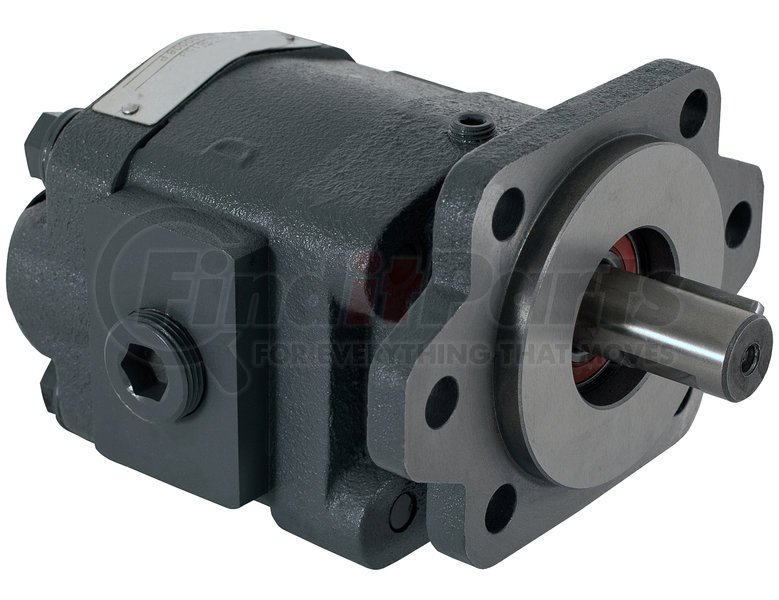

Buyers Products h2136173 - Hydraulic Gear Pump With 1 Inch Keyed Shaft And 1-3/4 Inch Diameter Gear
- Part Number
- h2136173
- Manufacturer
- BUYERS PRODUCTS
- Description
-
Hydraulic Gear Pump With 1 Inch Keyed Shaft And 1-3/4 Inch Diameter Gear
details
$36399
MSRP: $490.99
Save: $127.00
In stock
limited availability at this price!
. Learn more
BUYERS PRODUCTS part description
Specifications:
| Displacement: | 3 in.³/r |
| Displacement : | 13 GPM |
| Gear Width: | 1.750" |
| Input Mount Type: | Integral Bracket |
| Material: | Cast Iron |
| Maximum Rotations Per Minute (RPM): | 2000 RPM |
| Mount Type: | SAE B 2/4 Bolt |
| Pilot Diameter: | 4.00" |
| Shaft Size: | 1 |
| Shaft Type: | Round/Keyed |
| Ports (rear/side): | Rear/Side |
| Inlet Port Size: | 1 1/4 NPT |
| Maximum Pressure: | 2500 PSI |
| Direct or Remote Mount: | Remote Mount |
| Outlet Port Size: | 1 1/4 NPT |
| Rotation: | Bi-Directional |
| Gear Size: | 1.75" |
| Flow at 600 RPM: | 7.8 GPM |
| Flow at 1000 RPM: | 13 GPM |
| Flow at 1800 RPM: | 23.4 GPM |
| Flow at 900 RPM: | 11.7 GPM |
| Flow at 1200 RPM: | 15.6 GPM |
| Flow at 1500 RPM: | 19.5 GPM |
| Flow at 2100 RPM: | 27.3 GPM |
| Rear Port Size: | 1 NPT |
| Suction Port Size: | 1 1/4 NPT |
| Product Code: | 620 |
The H21 Series Hydraulic Gear Pump with Keyed Shaft from Buyers Products is a sturdy, durable bi-rotational pump that can be 2- or 4-bolt mounted in an SAE B mount.
The pump is built tough of cast iron with Teflon-coated bronze thrust plates. Four internal dowels work to protect its structural integrity. Its input shaft is supported by a heavy duty bearing.
Choose from a range of models with flow rates from 11.3 to 15.3 at 1000 RPM. The pumps are capable of higher pressures, taking up to 2500 or 3000 PSI.
All of the models feature a 1 in. keyed shaft.
Product Common Use: Truck and Trailer Hydraulic Systems
Features & Benefits
- Built tough of cast iron with teflon-coated bronze thrustplates
- Structural integrity supported by four internal dowels and a shaft bearing
- High-pressure rated -- can take a maximum 2500 or 3000 PSI
Product Description
Hydraulic Gear Pump with 1in. Keyed Shaft and 1-3/4in. Diameter Gear
Features & Benefits
- Tough cast iron construction with heavy duty bearings for longer life
- Direct bolt-on design for easier installation and maintenance
- Tested in real-world operating conditions to ensure reliable performance
- Parts are manufactured and assembled in the U.S.
feature a 1 in. keyed shaft.
Buyers Products Power Take Off (PTO) Hydraulic Pump
The Buyers Products power take off (PTO) hydraulic pump is a compact and efficient power source for truck and trailer hydraulic systems. It is available in various sizes and RPM output ranges.
Product Attributes
| Direct Or Remote Mount | Remote Mount |
| Flow At 1000 Rpm | 13.0 GPM G2 |
| Flow At 1200 Rpm | 15.6 GPM G2 |
| Flow At 1500 Rpm | 19.5 GPM G2 |
| Flow At 1800 Rpm | 23.4 GPM G2 |
| Flow At 2100 Rpm | 27.30 GPM G2 |
| Flow At 600 Rpm | 7.80 GPM G2 |
| Flow At 900 Rpm | 11.70 GPM G2 |
| Flow Rate | 3 in.³/r |
| Flow Rate | 13 GPM G2 |
| Gear Size | 1.75 IN |
| Gear Width | 1.750 IN |
| Inlet Port Diameter | 1 1/4 NPT |
| Input Mount Type | Integral Bracket |
| Material | Cast Iron |
| Maximum Pressure | 2500 PSI PS |
| Maximum Rpm | 2000 RPM R3 |
| Mounting Type | SAE B 2/4 Bolt |
| Outlet Port Diameter | 1 1/4 NPT |
| Pilot Diameter | 4.000 in |
| Port Size | 1 1/4 NPT IN |
| Port Type | Rear/Side |
| Rear Port Size | 1 NPT IN |
| Rotation | Bi-Directional |
| Shaft Diameter | 1.000 IN |
| SHAFT TYPE | Round/Keyed |
Buyers Products® is a global leader in manufacturing and distributing truck and trailer hardware, toolboxes, hydraulics, cables and controls, electrical and lighting components, pneumatics, and truck equipment and accessories. All these products are engineered, produced, and assembled in the USA, where the company was first founded in 1946. From a modest distributor of truck and trailer parts, Buyers Products has grown into one of the largest truck parts manufacturers and distributors in the heavy duty truck and equipment market today. Its years of expertise in the industry have allowed it to refine its manufacturing capabilities. From forging, stamping, and laser cutting to robotic welding and powder coating, Buyers Products integrates its dedication to quality in manufacturing products that provide value to its customers.
