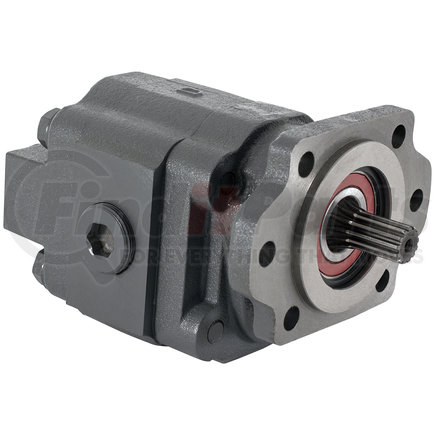

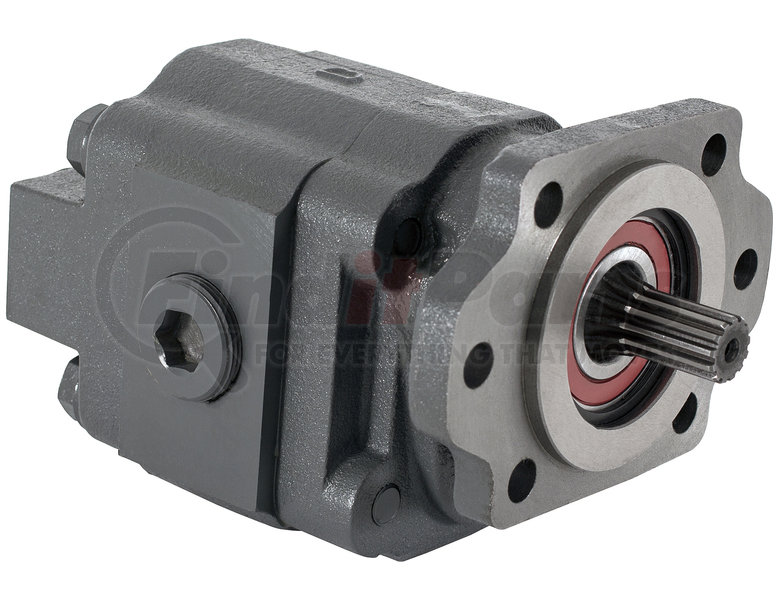

Buyers Products h5036171 - Hydraulic Gear Pump With 7/8-13 Spline Shaft And 1-3/4 Inch Diameter Gear
- Part Number
- h5036171
- Manufacturer
- BUYERS PRODUCTS
- Description
-
Hydraulic Gear Pump With 7/8-13 Spline Shaft And 1-3/4 Inch Diameter Gear
details
$45349
MSRP: $631.29
Save: $177.80
In stock
limited availability at this price!
BUYERS PRODUCTS part description
Specifications:
Displacement: | 3 in.³/r |
Displacement : | 18 GPM |
Gear Width: | 1.750" |
Input Mount Type: | Integral Bracket |
Material: | Cast Iron |
Maximum Rotations Per Minute (RPM): | 2000 RPM |
Mount Type: | SAE B 2/4 Bolt |
Pilot Diameter: | 4.00" |
Shaft Size: | 7/8-13 |
Shaft Type: | Splined |
Ports (rear/side): | Rear/Side |
Inlet Port Size: | 1 1/4 NPT |
Maximum Pressure: | 2500 PSI |
Direct or Remote Mount: | Direct Mount |
Outlet Port Size: | 1 1/4 NPT |
Rotation: | Bi-Directional |
Gear Size: | 1.75" |
Flow at 600 RPM: | 10.80 GPM |
Flow at 1000 RPM: | 18 GPM |
Flow at 1800 RPM: | 32.40 GPM |
Flow at 900 RPM: | 16.20 GPM |
Flow at 1200 RPM: | 21.6 GPM |
Flow at 1500 RPM: | 27.00 GPM |
Flow at 2100 RPM: | 37.8 GPM |
Rear Port Size: | 1 1/4 NPT |
Product Code: | 620 |
Buyers Products H21 Series Hydraulic Gear Pump with Shaft
The Buyers Products H21 Series hydraulic gear pump with shaft is designed primarily for converting mechanical power into hydraulic energy. With this crucial function, it is manufactured following the strictest quality standards for superior performance and reliability.
Features & Benefits
- Proudly made in the USA
- A highly durable bi-rotational pump that can be mounted in an SAE B mount
- Made tough using cast iron with teflon-coated bronze thrust plates for maximum strength and corrosion resistance
- Offers structural integrity, which is supported by a shaft bearing and four internal dowels
- Capable of high pressures—taking up to 2500 or 3000 PSI
Product Description
Hydraulic Gear Pump with 7/8-13 Spline Shaft and 1-3/4in. Diameter Gear
Features & Benefits
- Proudly made in the USA
- A highly durable bi-rotational pump that can be mounted in an SAE B mount
- Made tough using cast iron with teflon-coated bronze thrust plates for maximum strength and corrosion resistance
- Offers structural integrity, which is supported by a shaft bearing and four internal dowels
- Capable of high pressures—taking up to 2500 or 3000 PSI
Buyers Products H21 Series Hydraulic Gear Pump with Shaft
The Buyers Products H21 Series hydraulic gear pump with shaft is designed primarily for converting mechanical power into hydraulic energy. With this crucial function, it is manufactured following the strictest quality standards for superior performance and reliability.
Product Attributes
Direct Or Remote Mount | Direct Mount |
Flow At 1000 Rpm | 18.0 GPM G2 |
Flow At 1200 Rpm | 21.6 GPM G2 |
Flow At 1500 Rpm | 27.00 GPM G2 |
Flow At 1800 Rpm | 32.40 GPM G2 |
Flow At 2100 Rpm | 37.80 GPM G2 |
Flow At 600 Rpm | 10.80 GPM G2 |
Flow At 900 Rpm | 16.20 GPM G2 |
Flow Rate | 3 in.³/r |
Flow Rate | 18 GPM G2 |
Gear Size | 1.75 IN |
Gear Width | 1.750 IN |
Inlet Port Diameter | 1 1/4 NPT |
Input Mount Type | Integral Bracket |
Material | Cast Iron |
Maximum Pressure | 2500 PSI PS |
Maximum Rpm | 2000 RPM R3 |
Mounting Type | SAE B 2/4 Bolt |
Outlet Port Diameter | 1 1/4 NPT |
Pilot Diameter | 4.000 in |
Port Type | Rear/Side |
Rear Port Size | 1 1/4 NPT IN |
Rotation | Bi-Directional |
Shaft Diameter | 7/8-13 IN |
SHAFT TYPE | Splined |
Buyers Products® is a global leader in manufacturing and distributing truck and trailer hardware, toolboxes, hydraulics, cables and controls, electrical and lighting components, pneumatics, and truck equipment and accessories. All these products are engineered, produced, and assembled in the USA, where the company was first founded in 1946. From a modest distributor of truck and trailer parts, Buyers Products has grown into one of the largest truck parts manufacturers and distributors in the heavy duty truck and equipment market today. Its years of expertise in the industry have allowed it to refine its manufacturing capabilities. From forging, stamping, and laser cutting to robotic welding and powder coating, Buyers Products integrates its dedication to quality in manufacturing products that provide value to its customers.
