Name: Raybestos PGD149M Disc Brake Pad Set Semi Metallic
SKU: pgd149m
Price: 45.99 USD
Availability: InStock

RAYBESTOS part description

Technical Specifications

Part Number	PGD149M
weight	1 lb 2 oz
Application Summary	1986-1975 Chevrolet C30 Front, 1974 Chevrolet C30 Pickup Front, 1994-1991 Chevrolet C3500HD Front, 1994-1991 Chevrolet C3500HD Rear, 1996-1975 Chevrolet G30 Front, 1974 Chevrolet G30 Van Front, 1986-1977 Chevrolet K30 Front, 1999-1975 Chevrolet P30 Front, 1996-1976 Chevrolet P30 Rear, 1974 Chevrolet P30 Van Front, 1989 Chevrolet R2500 Rear, 1988-1987 Chevrolet R30 Front, 1991-1989 Chevrolet R3500 Front, 1991-1989 Chevrolet R3500 Rear, 1988-1987 Chevrolet V30 Front, 1991-1989 Chevrolet V3500 Front, 1980-1978 Dodge D400 Front, 1980-1978 Dodge D450 Front, 1978 Dodge D450 Rear, 1980-1975 Dodge W200 Front, 1993-1981 Dodge W250 Front, 1980-1975 Dodge W300 Front, 1974 Dodge W300 Pickup Front, 1993-1981 Dodge W350 Front, 1978-1975 GMC C35 Front, 1974 GMC C35/C3500 Pickup Front, 1986-1979 GMC C3500 Front, 1994-1993 GMC C3500 Rear, 1994-1991 GMC C3500HD Front, 1994-1991 GMC C3500HD Rear, 1978-1975 GMC G35 Front, 1974 GMC G35/G3500 Van Front, 1996-1979 GMC G3500 Front, 1978-1977 GMC K35 Front, 1974-1973 GMC K35/K3500 Pickup Front, 1986-1979 GMC K3500 Front, 1978-1975 GMC P35 Front, 1978-1976 GMC P35 Rear, 1974 GMC P35/P3500 Van Front, 1999-1979 GMC P3500 Front, 1996-1979 GMC P3500 Rear, 1987-1979 GMC P4500 Front, 1991-1987 GMC R3500 Front, 1991-1987 GMC V3500 Front, 1975-1974 International 200 Front, 1975 International Travelall Front, 2003-2002 Workhorse FasTrack FT1261 Front, 2003-2002 Workhorse FasTrack FT1261 Rear, 2003-2002 Workhorse FasTrack FT1461 Front, 2003-2002 Workhorse FasTrack FT1461 Rear, 2003-2002 Workhorse FasTrack FT1601 Front, 2003-2002 Workhorse FasTrack FT1601 Rear, 2003-2002 Workhorse FasTrack FT1801 Front, 2003-2002 Workhorse FasTrack FT1801 Rear, 2003-2002 Workhorse FasTrack FT1802 Front, 2003-2002 Workhorse FasTrack FT1802 Rear, 2005-2000 Workhorse P30 Front, 2005-2000 Workhorse P30 Rear
AAIA Part Type Description	Disc Brake Pad Set
Box Height	2.125 IN
Box Length	9.250 IN
Box Width	6.125 IN
California Proposition 65	WARNING: This product can expose you to chemicals including silica, which is known to the state of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Country of Origin	IN
Friction Material	Metallic
Friction Material Attachment Type	Integrally Molded
Friction Material Slot Type	Unslotted
Mounting Hardware	Not Included
Pad Assembly Thickness, Inner Overall	0.791 IN
Pad Assembly Thickness, Outer Overall	0.622 IN
Pad Chamfered	No
Pad Shim Attachment Type	Staked
Pad Shims Attached	Yes
Pad Shims Included	Yes
Pad Wear Sensor Attached	No
Pad Wear Sensor Included	No
Plate Height, Inner	2.580 IN
Plate Height, Outer	2.760 IN
Plate Length, Inner	7.200 IN
Plate Length, Outer	8.120 IN
Product Description - Extended	Brake Parts Inc Raybestos Element3 Metallic Disc Brake Pad
Product Description - Long	Raybestos Element3 Metallic Brake Pad
Weight, Gross	6.450 LBS

Product Description

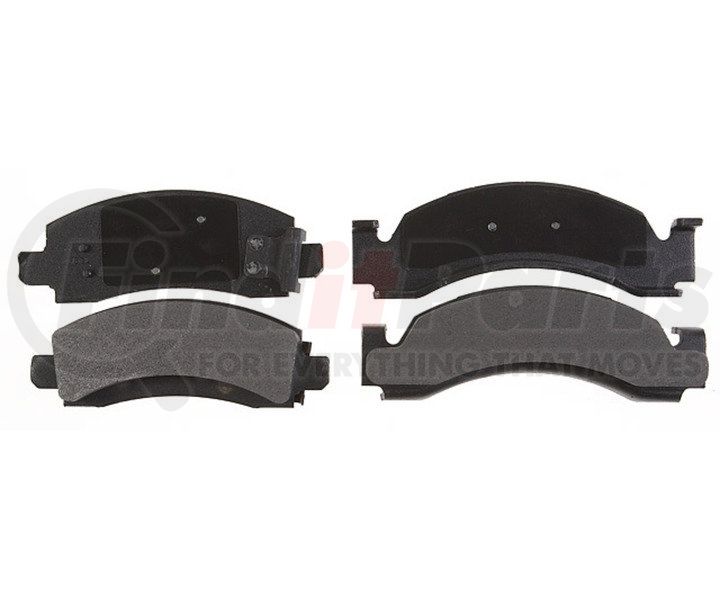

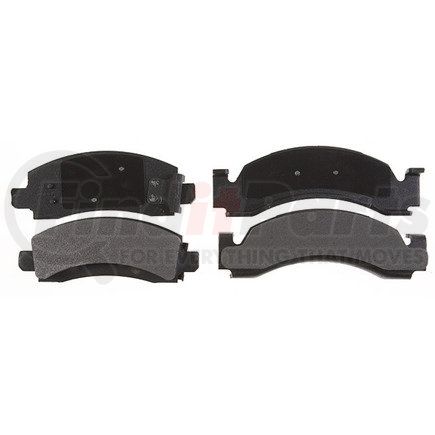

Raybestos Element3 Metallic Brake Pad Set

Application Summary

1996-1975 Chevrolet G30 Front, 1999-1975 Chevrolet P30 Front, 1996-1976 Chevrolet P30 Rear, 1986-1975 Chevrolet C30 Front, 1978-1976 Chevrolet C30 Rear, 1993-1981 Dodge W250 Front, 1996-1979 GMC G3500 Front, 1994-1991 Chevrolet C3500 Rear, 1986-1979 GMC C3500 Front, 1994-1991 GMC C3500 Rear, 1986-1977 Chevrolet K30 Front, 1999-1979 GMC P3500 Front, 1996-1979 GMC P3500 Rear, 1993-1981 Dodge W350 Front, 1988-1987 Chevrolet R30 Front, 1986-1979 GMC K3500 Front, 1994-1993 GMC K3500 Rear, 1980-1975 Dodge W200 Front, 1991-1989 Chevrolet R3500 Front, 1991-1989 Chevrolet R3500 Rear, 1991-1987 GMC R3500 Front, 1994-1991 Chevrolet C3500HD Front, 1994-1991 Chevrolet C3500HD Rear, 1993 GMC K2500 Rear, 1988-1987 Chevrolet V30 Front, 1978-1975 GMC C35 Front, 1991-1989 Chevrolet V3500 Front, 1991-1987 GMC V3500 Front, 1994-1991 GMC C3500HD Front, 1994-1991 GMC C3500HD Rear, 1978-1975 GMC G35 Front, 1974 Chevrolet C30 Pickup Front, 1975-1974 International 200 Front, 2005-2000 Workhorse P30 Front, 2005-2000 Workhorse P30 Rear, 1978-1975 GMC P35 Front, 1978-1976 GMC P35 Rear, 1980-1975 Dodge W300 Front, 1993 GMC K2500 Suburban Rear, 1974 Chevrolet G30 Van Front, 2007-1999 Workhorse Custom Chassis P32 Front, 2007-1999 Workhorse Custom Chassis P32 Rear, 1974 Chevrolet P30 Van Front, 1987-1979 GMC P4500 Front, 1978-1977 GMC K35 Front, 1974 GMC C35/C3500 Pickup Front, 1989 Chevrolet R2500 Rear, 1993 GMC C2500 Suburban Rear, 1974 GMC G35/G3500 Van Front, 1974 GMC P35/P3500 Van Front, 1975 International Travelall Front, 1974 Dodge W300 Pickup Front, 1980-1978 Dodge D450 Front, 1978 Dodge D450 Rear, 1980-1978 Dodge D400 Front, 1974-1973 GMC K35/K3500 Pickup Front, 2003-2002 Workhorse FasTrack FT1261 Front, 2003-2002 Workhorse FasTrack FT1261 Rear, 2003-2002 Workhorse FasTrack FT1461 Front, 2003-2002 Workhorse FasTrack FT1461 Rear, 2003-2002 Workhorse FasTrack FT1601 Front, 2003-2002 Workhorse FasTrack FT1601 Rear, 2003-2002 Workhorse FasTrack FT1801 Front

Product Attributes

Pad Wear Sensor Included	No
Slotted	No
Friction Material Composition	Metallic
Mounting Hardware Included	No
Pad Shims Included	Yes
Friction Material Attachment	Integrally Molded
FMSI Number	D149-7081A
Chamfered Edges	No
9433	2.760 IN
Inner Pad Height	2.580 in
9435	8.120 IN
Inner Pad Width	7.200 in
9478	0.622 in
9479	0.791 IN
Friction Material Slot Type	Unslotted
Pad Shim Attachment Type	Staked
Pad Shims Attached	Yes
Pad Wear Sensor Attached	No

Additional Information

Country of Origin (Primary)	IN
UPC	00030999184276

Part Interchanges

RAYBESTOS PGD149M Cross Reference

We have 2 alternatives for the PGD149M by RAYBESTOS:

Fits Vehicles

International Travelall (1975)
International 200 (1974-1975)
Workhorse Custom Chassis P32 (1999-2007)
GMC C3500HD (1991-1994)
Chevrolet C3500HD (1991-1994)
Workhorse FasTrack FT1802 (2002-2003)
Workhorse FasTrack FT1801 (2002-2003)
Workhorse FasTrack FT1601 (2002-2003)
Workhorse FasTrack FT1461 (2002-2003)
Workhorse FasTrack FT1261 (2002-2003)
Workhorse P32 (1999-2005)
GMC P4500 (1979-1987)
Workhorse P30 (2000-2005)
GMC P35/P3500 Van (1974)
GMC K35/K3500 Pickup (1973-1974)
GMC G35/G3500 Van (1974)
GMC C35/C3500 Pickup (1974)
Dodge W300 Pickup (1974)
Chevrolet P30 Van (1974)
Chevrolet G30 Van (1974)
Chevrolet C30 Pickup (1974)
GMC V3500 (1987-1991)
GMC R3500 (1987-1991)
GMC P3500 (1979-1999)
GMC P35 (1975-1978)
GMC K3500 (1979-1986, 1993-1994)
GMC K35 (1977-1978)
GMC K2500 Suburban (1993)
GMC K2500 (1993)
GMC G3500 (1979-1996)
GMC G35 (1975-1978)
GMC C3500 (1979-1986, 1991-1994)
GMC C35 (1975-1978)
GMC C2500 Suburban (1993)
Chevrolet V3500 (1989-1991)
Chevrolet V30 (1987-1988)
Chevrolet R2500 (1989)
Chevrolet R30 (1987-1988)
Chevrolet R3500 (1989-1991)
Chevrolet P30 (1975-1999)
Chevrolet K30 (1977-1986)
Chevrolet G30 (1975-1996)
Chevrolet C3500 (1991-1994)
Chevrolet C30 (1975-1986)
Dodge W350 (1981-1993)
Dodge W300 (1975-1980)
Dodge W250 (1981-1993)
Dodge W200 (1975-1980)
Dodge D450 (1978-1980)
Dodge D400 (1978-1980)

For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
