Centric 141.80001 - Semi-Loaded Brake Caliper
$5999
+$64.71 Core Deposit
Total price w/ core: $124.70
MSRP: $92.88
Save: $32.89
In stock
limited availability at this price!
. Learn more
CENTRIC part description
Special Note:
| Make | Chevrolet, GMC, Workhorse |
| Model | C3500, C3500HD, P30, P32, P3500, P42, W42 |
| Year | 1985 |
Product Description

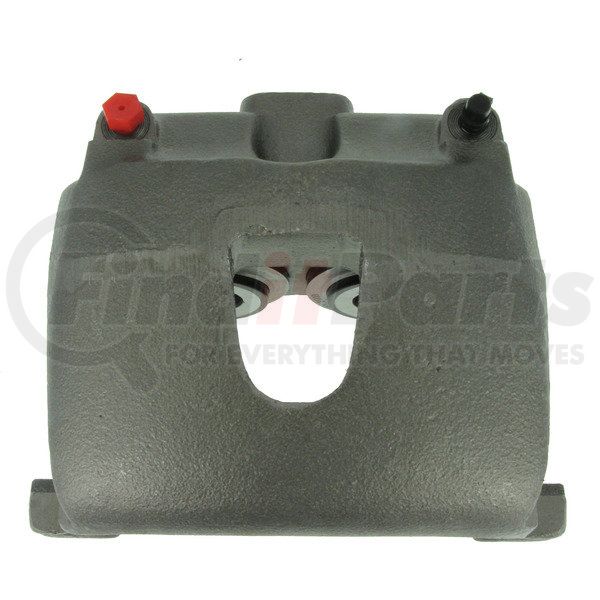

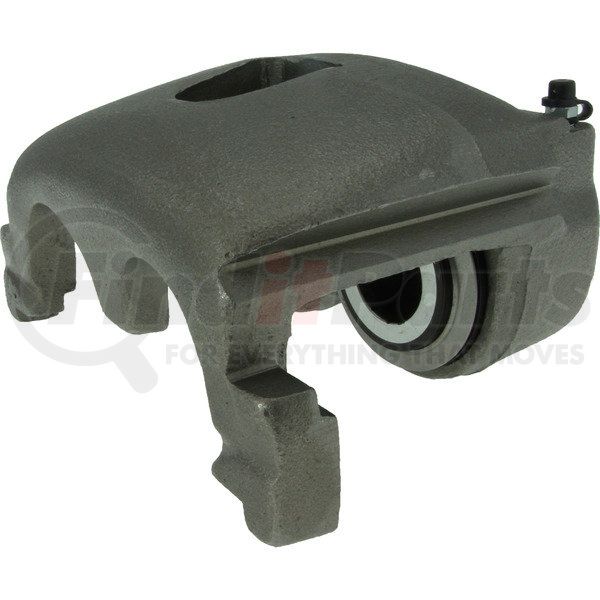

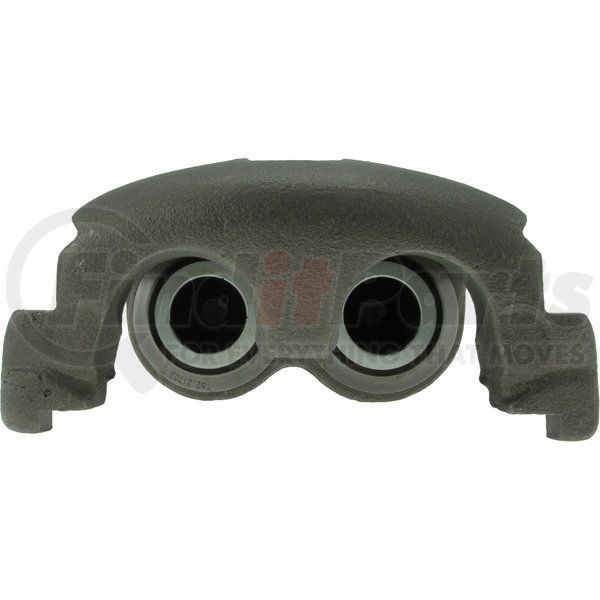

Centric Semi-Loaded Brake Caliper with New Phenolic Pistons
Application Summary
Chevrolet C3500HD 2002-1995, P30 1999-1997, GMC C3500HD 2002-1995, P3500 1999-1997, Workhorse P30 2005-2000, P32 2005-1999, P42 2005-1999, W42 2005-2004
Features & Benefits
- Remanufactured to meet the most exacting standards for reliable performance. 100% pressure tested & inspected to ensure proper operation & fitment. Treated with anti-corrosion finish. Comes without brake pads. Includes hardware and brackets
Centric Calipers; Centric Parts loaded caliper; Centric; Centric Parts; CentricParts; Semi-Loaded Caliper; Centric Semi-Loaded Calipers
Product Attributes
| Pad Wear Sensor Included | No |
| Inlet Thread Diameter | 10.000 MM |
| Mounting Hardware Included | No |
| Casting Number | 4152828; |
| Pads Included | No |
| Caliper Casting Material | Cast Iron |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Friction Materials Standards Institute Pad Number | 10x.07170 |
| Bleeder Thread Diameter | 10.000 MM |
| 7609 | 66.000 MM |
| Inlet Fitting Type | Banjo |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | No |
| Piston Material | Phenolic |
| 9544 | M10-1.50 |
| 9558 | M10-1.50 |
| Air Gap [orely] | 100.5mm |
| Bleeder Screw Included [cntrc] | Yes |
| Bracket # [cntrc] | na |
| Bracket Required [cntrc] | No |
| Caliper Boot & Seal Kit# [cntrc] | 143.83002 |
| Finish [cntrc] | Rust Preventative |
| Hardware Kit# [cntrc] | 117.66006 |
| New Or Ramanufactured [cntrc] | Remanufactured |
| Published Bore Size [cntrc] | 66 |
| Root Core# [cntrc] | 80001 |
| Rust Preventative Coating [cntrc] | Yes |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8412909085 |
| NAFTA Preference Criterion Code | B |
| UPC | 00805890127550 |
Part Interchanges
CENTRIC 141.80001 Cross Reference
We have 24 alternatives for the 141.80001 by CENTRIC:
Fits Vehicles
- GMC C3500HD (1995-2002)
- Chevrolet C3500HD (1995-2002)
- Workhorse W42 (2004-2005)
- Workhorse P42 (1999-2005)
- Workhorse P32 (1999-2005)
- Workhorse P30 (2000-2005)
- GMC P3500 (1997-1999)
- Chevrolet P30 (1997-1999)
